LED Wall Washer
GD-WW5261
Product Features
- Optical-grade PMMA TIR narrow-beam lens (>93% transmittance) with Cree 3535 10W LEDs delivers 3°-15° beams and >90% focusing efficiency
- Total-internal-reflection optics concentrate LED spill into a brighter, longer-reaching beam with sharp edges, minimal stray light and precise projection
- Designed for wide, tall high-rise façades, spires and bridge towers; the integrated shield controls glare, while laser-level aiming ensures a clean light band
Specifications

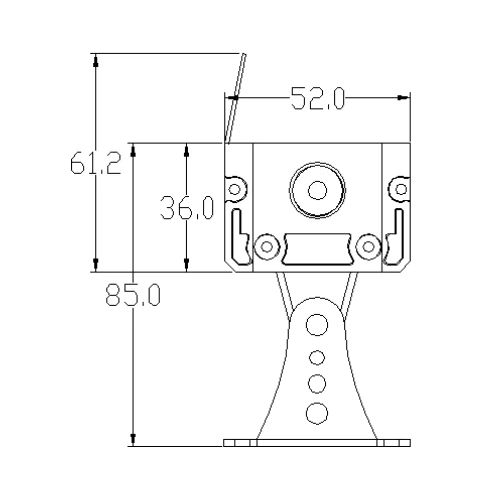

| Lamp name | Narrow-beam LED wall washer with glare shield | Lamp size | W52*H61*L1000MM |
|---|---|---|---|
| Light source power | 48W / 60W | LED and optics | Cree 3535, 10W per LED + optical-grade PMMA TIR lens |
| Beam angle | 3°-15°; transmittance ≥93%; focusing efficiency ≥90% | PCB size | W44*L980MM with waterproof screws |
| Profile length | Aluminum 985mm + end caps 15mm | Surface finish | Sand silver coating |
| Waterproof rating | IP68 | Connection | Structural waterproofing for seamless continuous runs |
| Mounting bracket | Adjustable bracket |

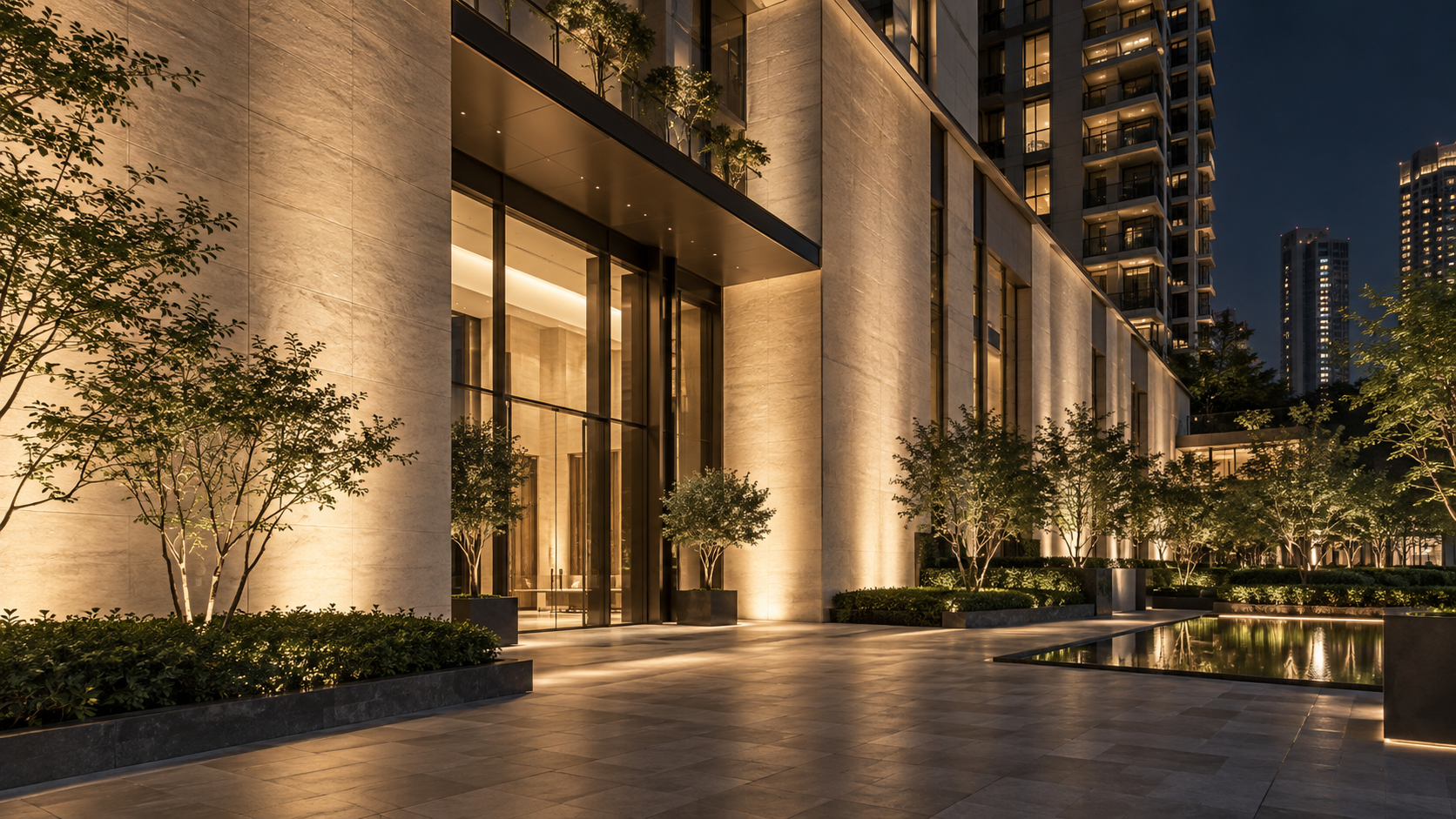

Application
