GD-PM2315-1212 LED Pixel Mesh / Pixel Matrix

LED Pixel Light

GD-PM2315-1212

Product Features

  • Pre-configured 12 × 12 pixel matrix
  • Modular pixel mesh arrangement for scalable graphic layouts
  • DMX512
  • Supplied steel cable, flange, mounting strip and cable lock
Request a QuoteBack to products

Specifications

Lamp nameLED Pixel Point LightLamp size23 × 15 mm
LED quantity3 LEDsControl modeDMX512
Control ICUCS512B3 (5603A / 1903N available)LED typeSMD3535 LED
Working voltageDC12VLED chipEpistar
Power supplyExternal constant-voltage switching power supplyGrayscale256
Electrical safety classClass IIILight colourRGB
Rated power0.72WCover materialTransparent PC
Operating temperature-30°C–60°CMatrix configuration12 × 12
Included accessoriessteel cable, flange, mounting strip and cable lockControl wiring4-wire
Pixel layout12 × 12 pixel layout

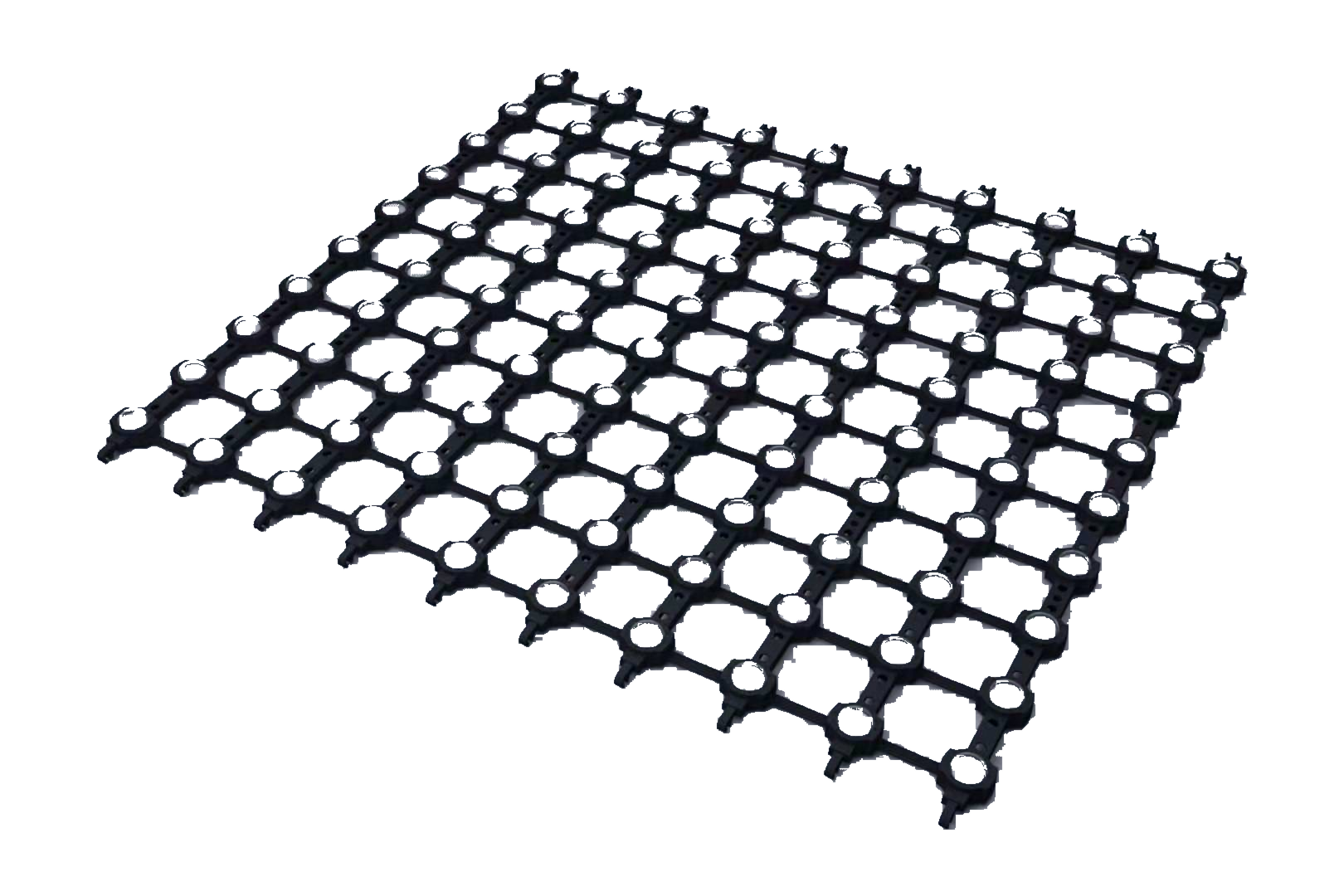

GD-PM2315-1212 pixel light mesh product image
GD-PM2315-1212 pixel light mesh product image

Application Illustrations

Flat media facade application using distributed RGB pixel lights to create dynamic architectural visual content.
Flat media facade application using distributed RGB pixel lights to create dynamic architectural visual content.
Curved media facade application using distributed RGB pixel lights to follow the building geometry and create dynamic visual effects.
Curved media facade application using distributed RGB pixel lights to follow the building geometry and create dynamic visual effects.
