LED Pixel Light
GD-P6025-06B
Product Features
- Secondary encapsulation for sealing protection
- IP67 construction for exposed outdoor installation
- 120°–160° beam/viewing angle
- DMX512 control
Specifications

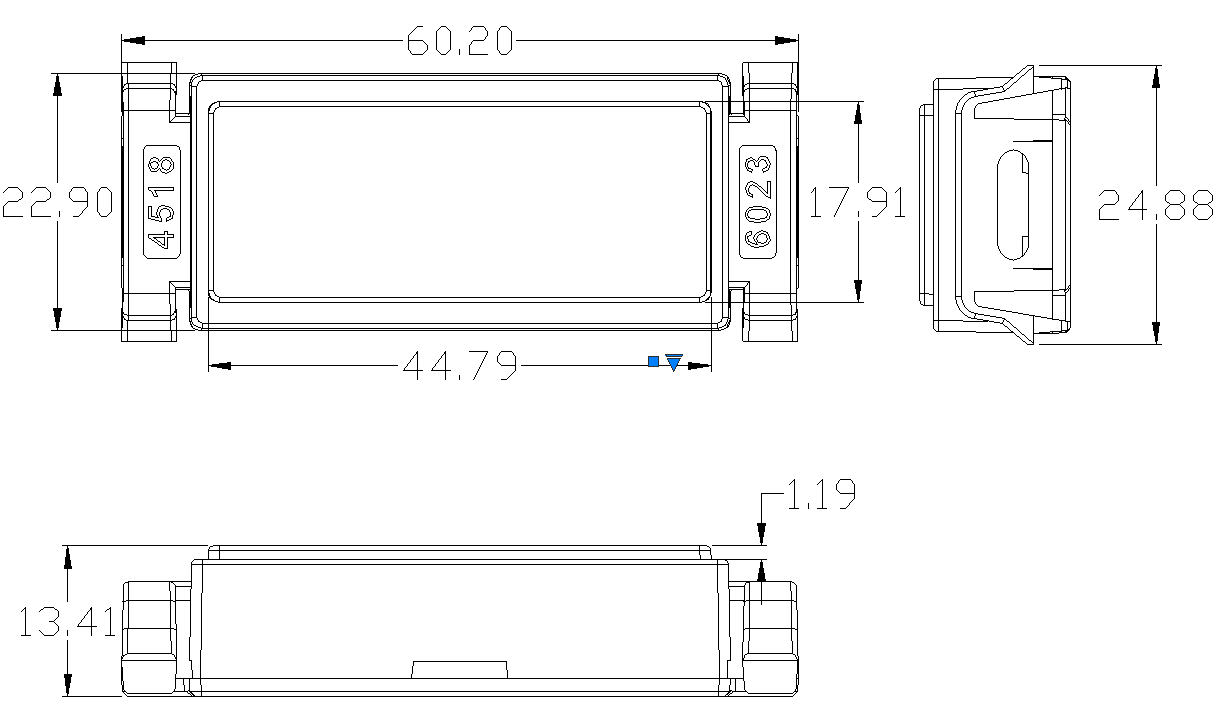

| Lamp name | LED Pixel Point Light | Lamp size | 60 × 25 mm |
|---|---|---|---|
| LED quantity | 6 LEDs | Control mode | DMX512 |
| Control IC | DMX512 | LED type | SMD3535 LED |
| Working voltage | DC24V | LED chip | Epistar |
| Power supply | External constant-voltage switching power supply | Electrical safety class | Class III |
| Light colour | RGBW | Rated power | 1.8W |
| Cover material | Transparent PC | Operating temperature | -30°C–60°C |
| Beam angle | 120°–160° | Waterproof rating | IP67 |
| Housing profile | Flat profile | Control wiring | 5-wire |
Application Illustrations
