GD-P5015-09 LED Pixel Point Light

LED Pixel Light

GD-P5015-09

Product Features

  • Secondary encapsulation for sealing protection
  • IP67 construction for exposed outdoor installation
  • 120°–160° beam/viewing angle
  • DMX512 control
Request a QuoteBack to products

Specifications

Lamp nameLED Pixel Point LightLamp size50 × 15 mm
LED quantity9 LEDsControl modeDMX512
Control ICDMX512(5-wire)LED typeSMD3535 LED
Standard wiring160mm spacing; 30 pixels/stringWorking voltageDC24V
LED chipEpistarPower supplyExternal constant-voltage switching power supply
Grayscale256Electrical safety classClass III
Light colourRGBWRated power1.8W
Cover materialTransparent PCOperating temperature-30°C–60°C
Beam angle120°–160°Waterproof ratingIP67
Housing profileFlat profileControl wiring5-wire

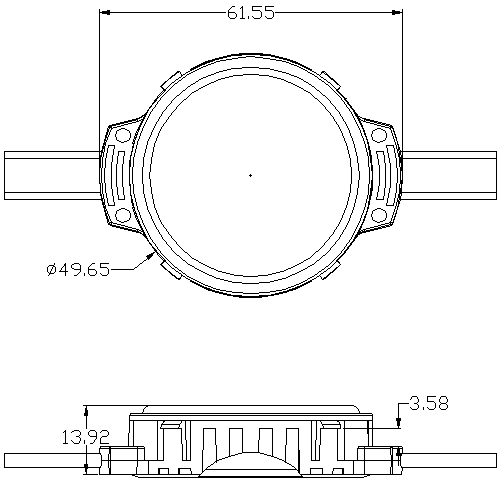

GD-P5015-09 dimensions
GD-P5015-09 dimensions

Application Illustrations

Flat media facade application using distributed RGB pixel lights to create dynamic architectural visual content.
Flat media facade application using distributed RGB pixel lights to create dynamic architectural visual content.
Curved media facade application using distributed RGB pixel lights to follow the building geometry and create dynamic visual effects.
Curved media facade application using distributed RGB pixel lights to follow the building geometry and create dynamic visual effects.
