GD-P4515-06 LED Pixel Point Light

LED Pixel Light

GD-P4515-06

Product Features

  • Secondary encapsulation for sealing protection
  • IP67 construction for exposed outdoor installation
  • 120°–160° beam/viewing angle
  • Constant-on single colour / DMX512 control
Request a QuoteBack to products

Specifications

Lamp nameLED Pixel Point LightLamp size45 × 15 mm
LED quantity6 LEDsControl modeConstant-on single colour / DMX512
Control ICDMX512LED typeSMD3535 LED
Standard wiring160mm spacing; 30 pixels/stringWorking voltageDC24V
LED chipEpistarPower supplyExternal constant-voltage switching power supply
Electrical safety classClass IIILight colourRGB
Rated power1.44WCover materialTransparent PC
Operating temperature-30°C–60°CBeam angle120°–160°
Waterproof ratingIP67Housing profileFlat profile
Control wiring5-wire

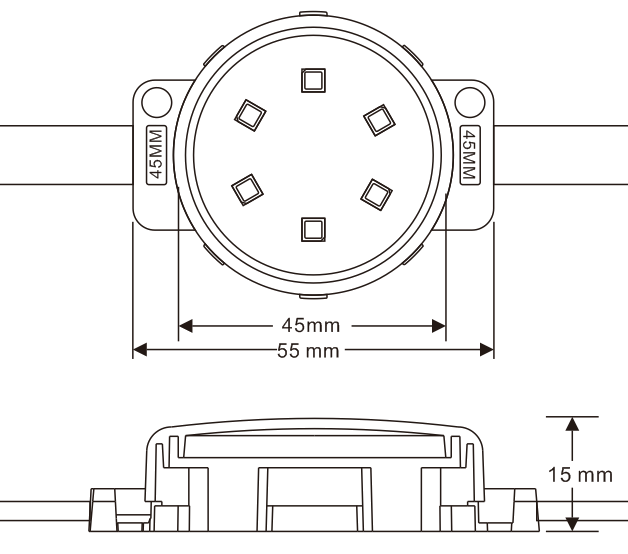

GD-P4515-06 dimensions
GD-P4515-06 dimensions

Application Illustrations

Flat media facade application using distributed RGB pixel lights to create dynamic architectural visual content.
Flat media facade application using distributed RGB pixel lights to create dynamic architectural visual content.
Curved media facade application using distributed RGB pixel lights to follow the building geometry and create dynamic visual effects.
Curved media facade application using distributed RGB pixel lights to follow the building geometry and create dynamic visual effects.
