GD-P4050-06 LED Pixel Point Light

LED Pixel Light

GD-P4050-06

Product Features

  • Secondary encapsulation for sealing protection
  • IP67 construction for exposed outdoor installation
  • 120°–160° beam/viewing angle
  • Constant-on single colour / DMX512 control
Request a QuoteBack to products

Specifications

Lamp nameLED Pixel Point LightLamp size40 × 50 mm
LED quantity6 LEDsControl modeConstant-on single colour / DMX512
Control ICDMX512LED typeSMD3535 LED
Working voltageDC24VLED chipEpistar
Power supplyExternal constant-voltage switching power supplyElectrical safety classClass III
Light colourRGBRated power1.44W
Cover materialTransparent PCOperating temperature-30°C–60°C
Beam angle120°–160°Waterproof ratingIP67
Housing profileFlat profileControl wiring5-wire

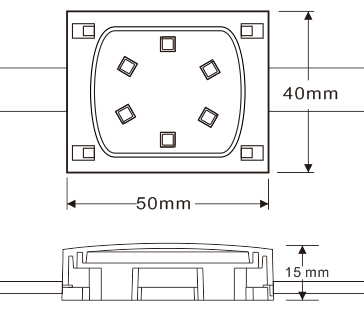

GD-P4050-06 dimensions
GD-P4050-06 dimensions

Application Illustrations

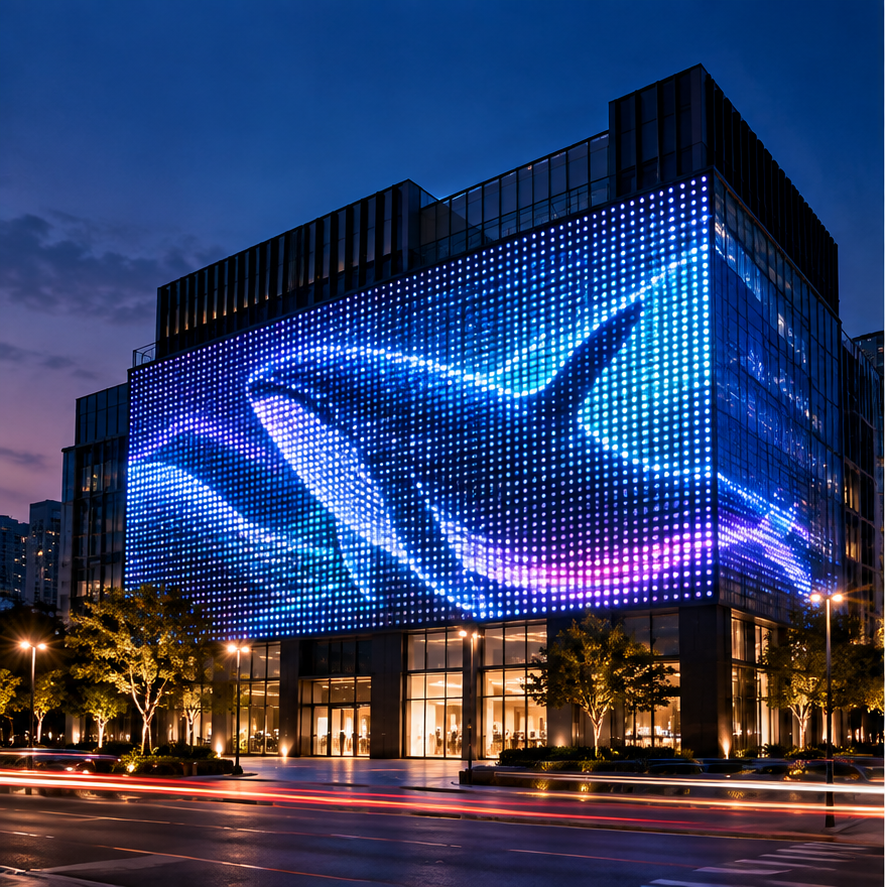

Flat media facade application using distributed RGB pixel lights to create dynamic architectural visual content.
Flat media facade application using distributed RGB pixel lights to create dynamic architectural visual content.

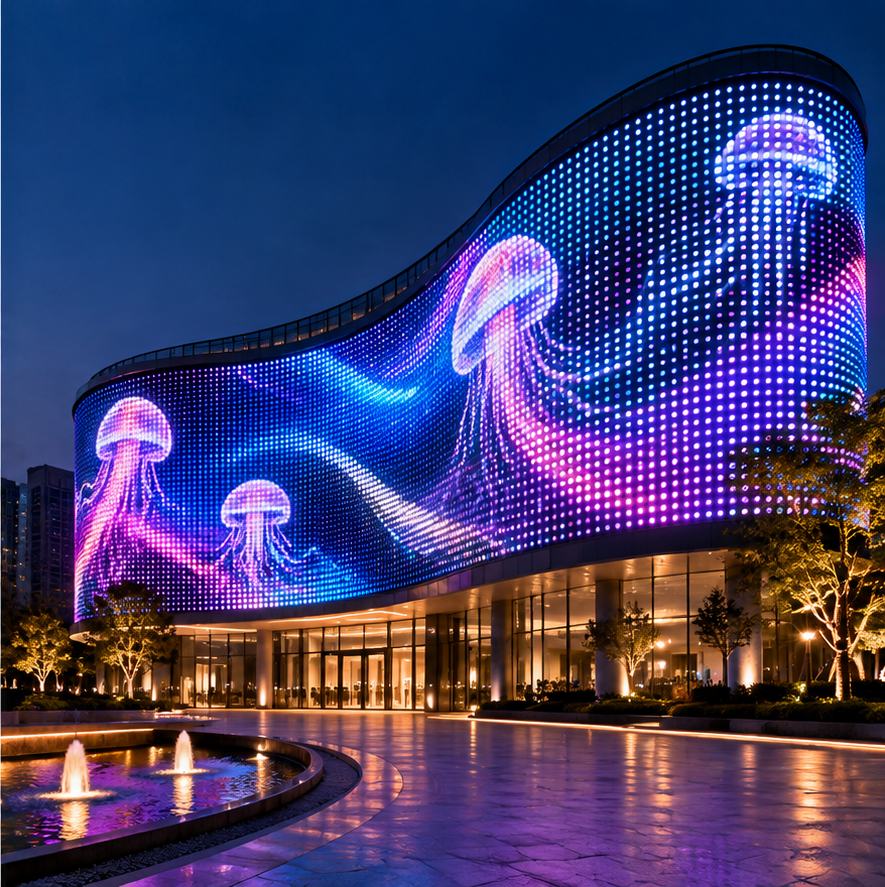

Curved media facade application using distributed RGB pixel lights to follow the building geometry and create dynamic visual effects.
Curved media facade application using distributed RGB pixel lights to follow the building geometry and create dynamic visual effects.
