LED Pixel Light
GD-P3515-04
Product Features
- Secondary encapsulation for sealing protection
- IP67 construction for exposed outdoor installation
- 120°–160° beam/viewing angle
- DMX512 control
Specifications

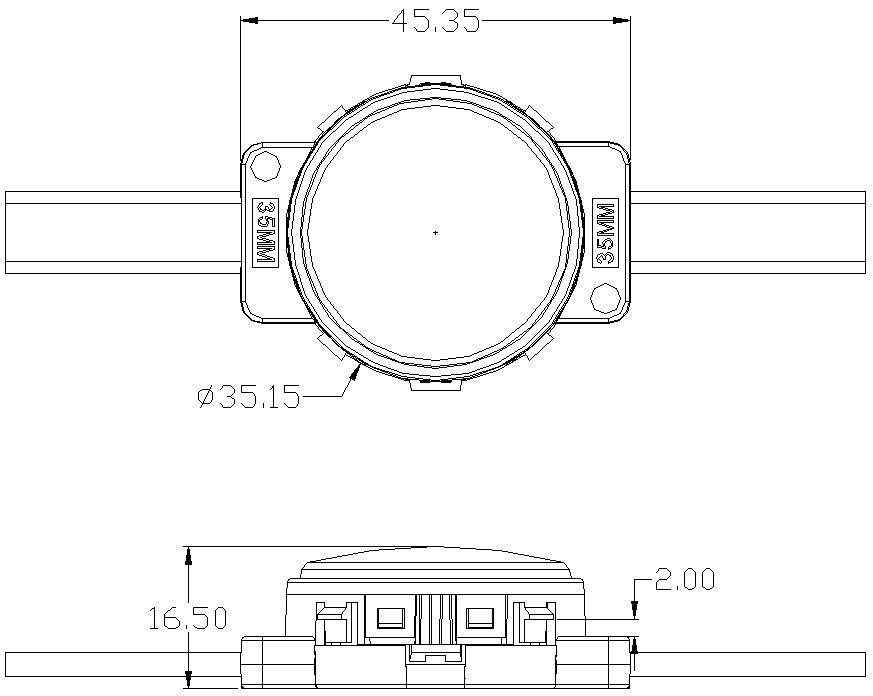

| Lamp name | LED Pixel Point Light | Lamp size | 35 × 15 mm |
|---|---|---|---|
| LED quantity | 4 LEDs | Control mode | DMX512 |
| Control IC | DMX512(5-wire) | LED type | SMD3535 LED |
| Standard wiring | 160mm spacing; 30 pixels/string | Working voltage | DC12V |
| LED chip | Epistar | Power supply | External constant-voltage switching power supply |
| Grayscale | 256 | Electrical safety class | Class III |
| Light colour | RGBW | Rated power | 0.9W |
| Cover material | Transparent PC | Operating temperature | -30°C–60°C |
| Beam angle | 120°–160° | Waterproof rating | IP67 |
| Housing profile | Flat profile | Control wiring | 5-wire |
Application Illustrations
