GD-P2315-02 LED Pixel Point Light

LED Pixel Light

GD-P2315-02

Product Features

  • Secondary encapsulation for sealing protection
  • IP67 construction for exposed outdoor installation
  • 120°–160° beam/viewing angle
  • Constant-on single colour control
Request a QuoteBack to products

Specifications

Lamp nameLED Pixel Point LightLamp size23 × 15 mm
LED quantity2 LEDsControl modeConstant-on single colour
Control ICConstant-on single colourLED typeSMD2835 LED
Standard wiring30–40 pixels/string; 5–10 pixels/mWorking voltageDC24V
LED chipOSRAMPower supplyExternal constant-voltage switching power supply
Electrical safety classClass IIILight colourWarm white / Pure white / Golden yellow
Rated power0.4WCover materialTransparent PC
Operating temperature-30°C–60°CBeam angle120°–160°
Waterproof ratingIP67Housing profileFlat profile

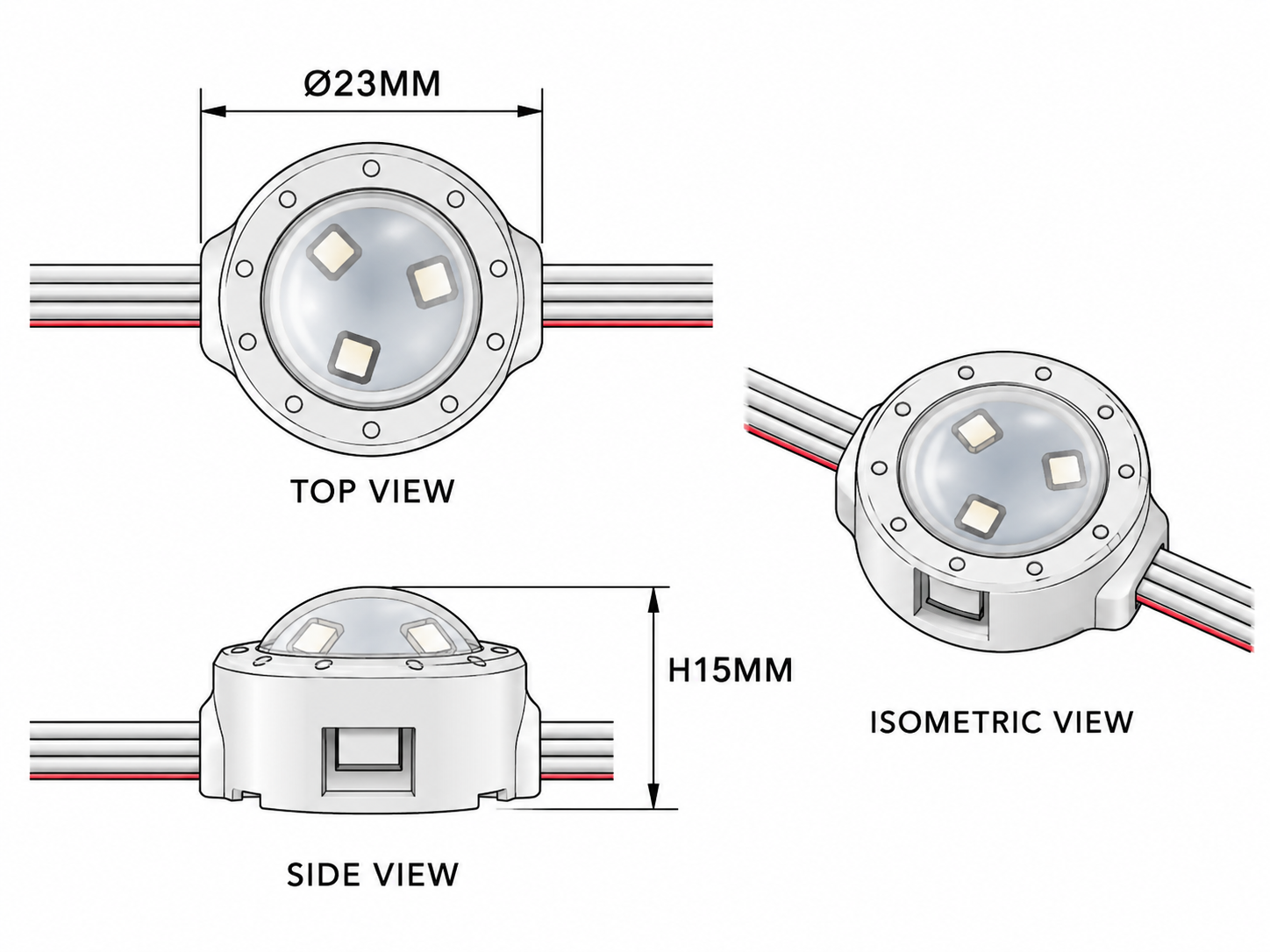

GD-P2315-02 dimensions
GD-P2315-02 dimensions

Application Illustrations

Flat media facade application using distributed RGB pixel lights to create dynamic architectural visual content.
Flat media facade application using distributed RGB pixel lights to create dynamic architectural visual content.
Curved media facade application using distributed RGB pixel lights to follow the building geometry and create dynamic visual effects.
Curved media facade application using distributed RGB pixel lights to follow the building geometry and create dynamic visual effects.
