GD-L2048PC LED PC Linear Light

LED Linear Light / Contour Light

GD-L2048PC

Product Features

Slim 20 × 48 mm linear profile for architectural contour lighting
10W / 12W / 15W power options for different project requirements
160° wide beam distribution for continuous linear illumination
ON/OFF and DMX512 control options for static or controlled lighting applications

Request a Quote Back to products

Specifications

Lamp name	LED PC Linear Light	Dimensions	W20H48L1000MM
Light source type	5055-48LED	Power	10W/12W/15W
Working voltage	DC24V	Material	Aluminum + PC
Light color	monochrome/RGB/RGBW	Control mode	ON/OFF / DMX512
Beam angle	160°	IP rating	IP66
Service life	50,000 hours	Mounting bracket	Non-adjustable U-shaped clip

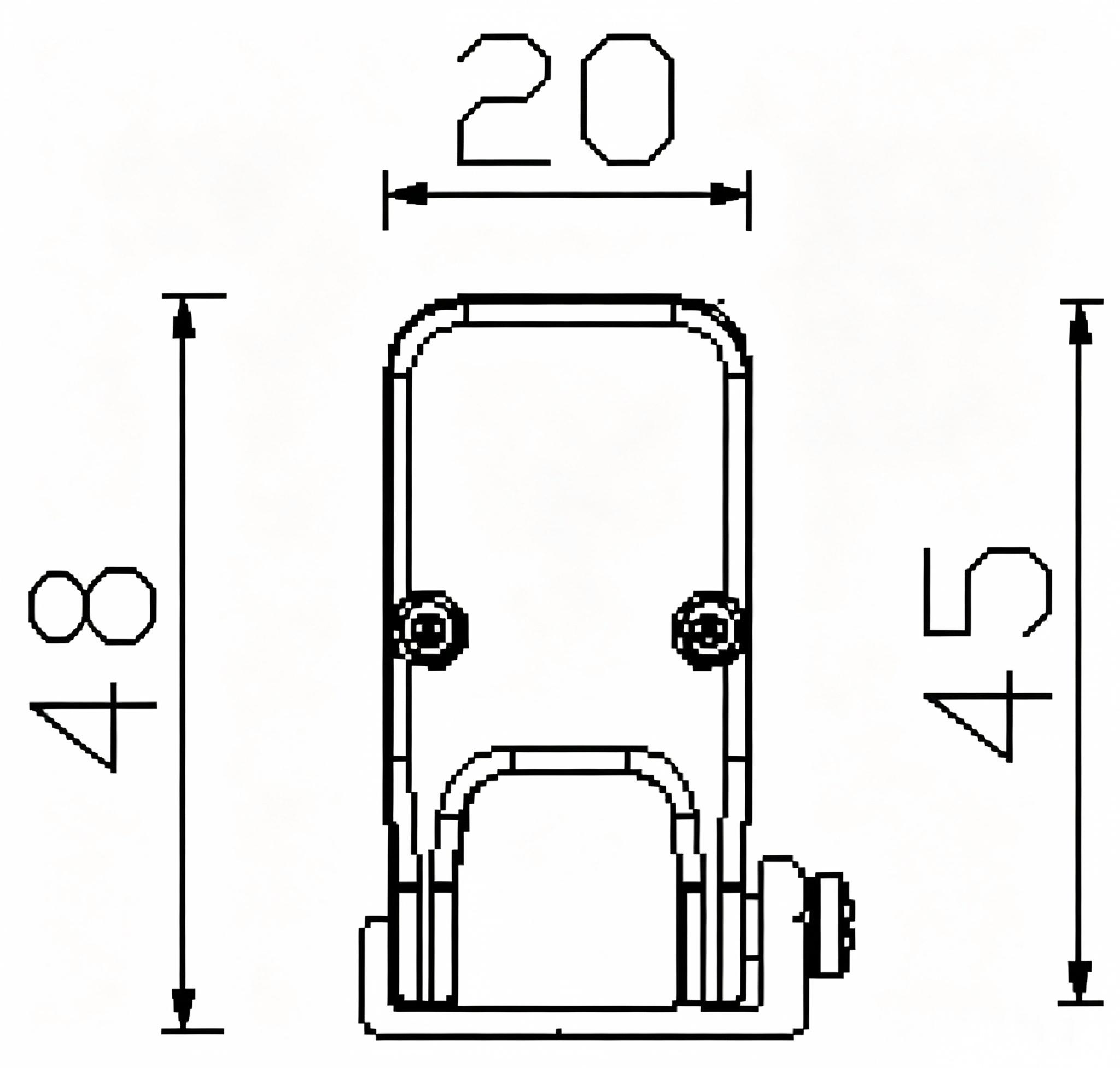

GD-L2048PC cross-section dimensions

Shared 1000 mm length drawing supplied by the user

Application Illustrations

Application illustration — Architectural contour lighting application with continuous linear illumination defining the building structure.

Application illustration — Bridge contour lighting application using continuous linear illumination to emphasize the architectural form.
