GD-L1745PMMA Acrylic LED linear light

LED Linear Light / Contour Light

GD-L1745PMMA

Product Features

  • 17 × 45 mm linear profile in Aluminum + PMMA for architectural contour lighting
  • 10W/12W/15W power options for different project requirements
  • 180° beam distribution for continuous linear illumination
  • DMX512 control for controlled lighting applications
Request a QuoteBack to products

Specifications

Lamp nameAcrylic LED linear lightDimensionsW17*H45*L1000MM
Light source type5055-48LEDPower10W/12W/15W
Working voltageDC24VMaterialAluminum + PMMA
Light colormonochrome/RGB/RGBWControl modeDMX512
Beam angle180°IP ratingIP66
Service life50,000 hoursMounting bracketNon-adjustable U-shaped clip

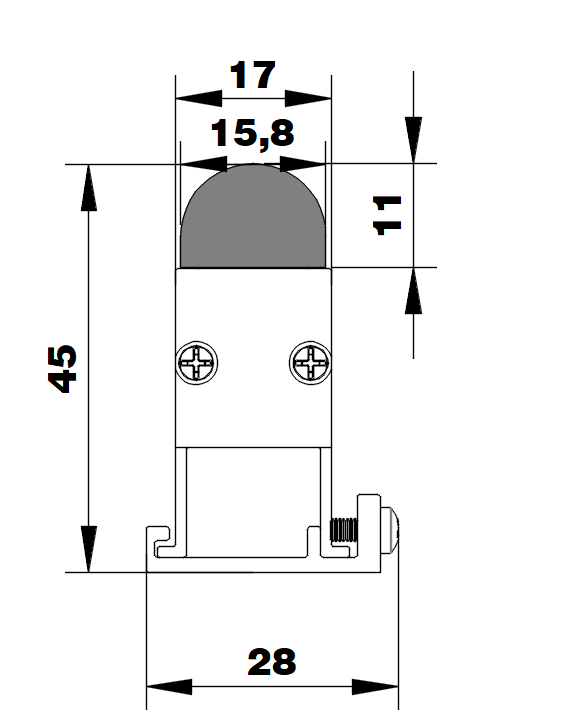

GD-L1745PMMA cross-section dimensions
GD-L1745PMMA cross-section dimensions
Shared 1000 mm length drawing supplied by the user
Shared 1000 mm length drawing supplied by the user

Application Illustrations

Application illustration — Architectural contour lighting application with continuous linear illumination defining the building structure.
Application illustration — Architectural contour lighting application with continuous linear illumination defining the building structure.
Application illustration — Bridge contour lighting application using continuous linear illumination to emphasize the architectural form.
Application illustration — Bridge contour lighting application using continuous linear illumination to emphasize the architectural form.
