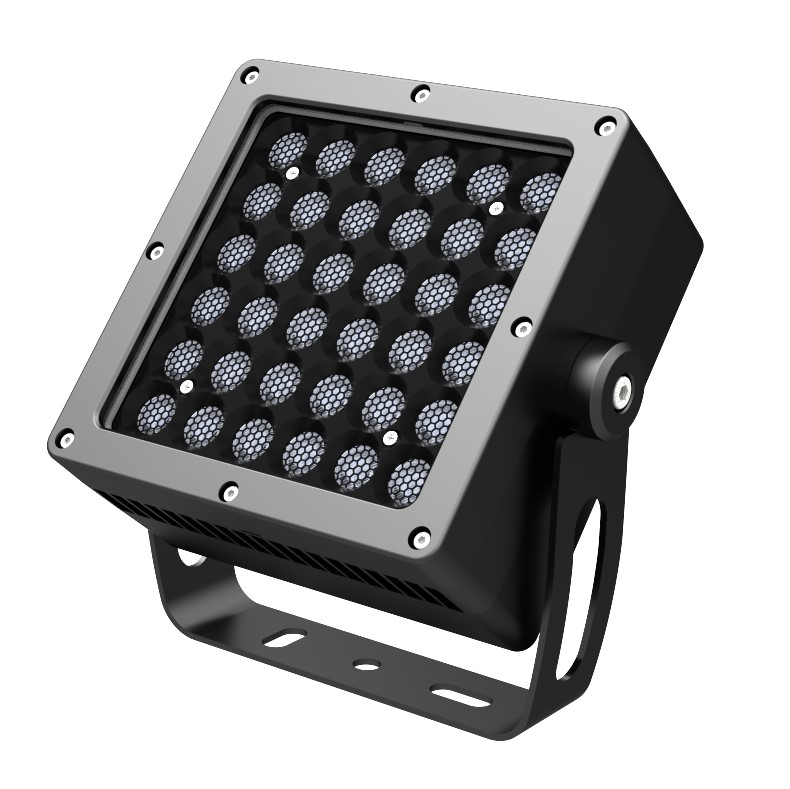

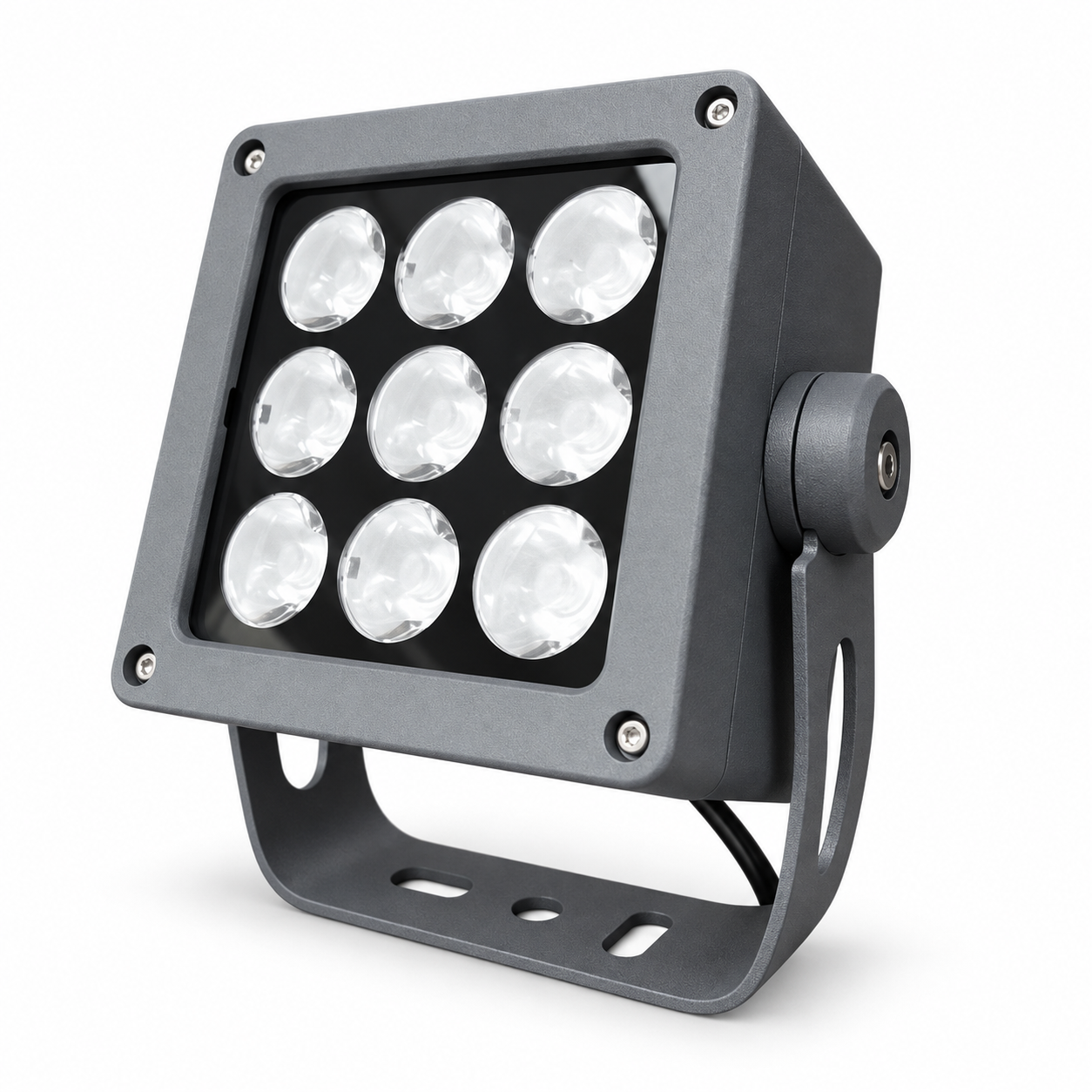

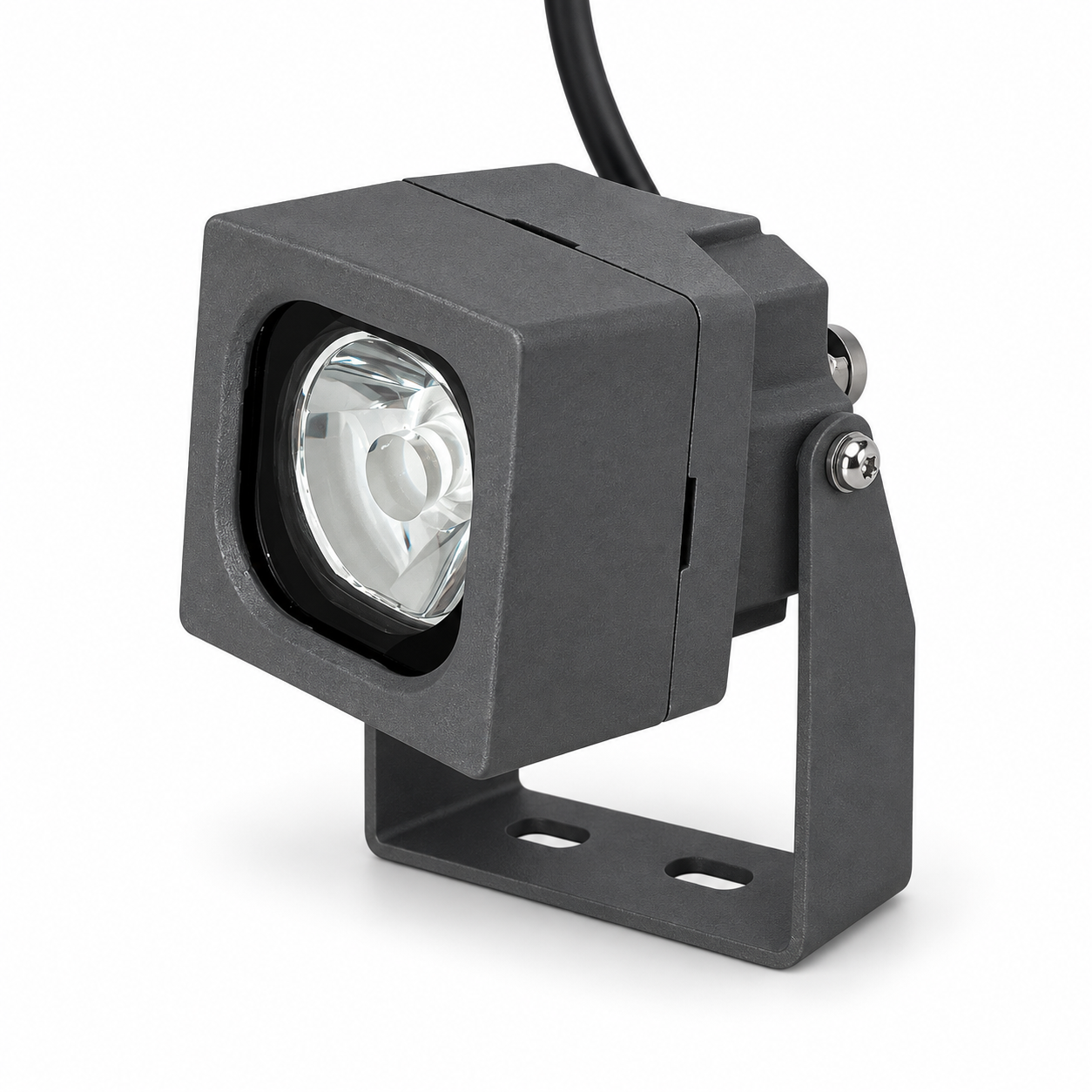

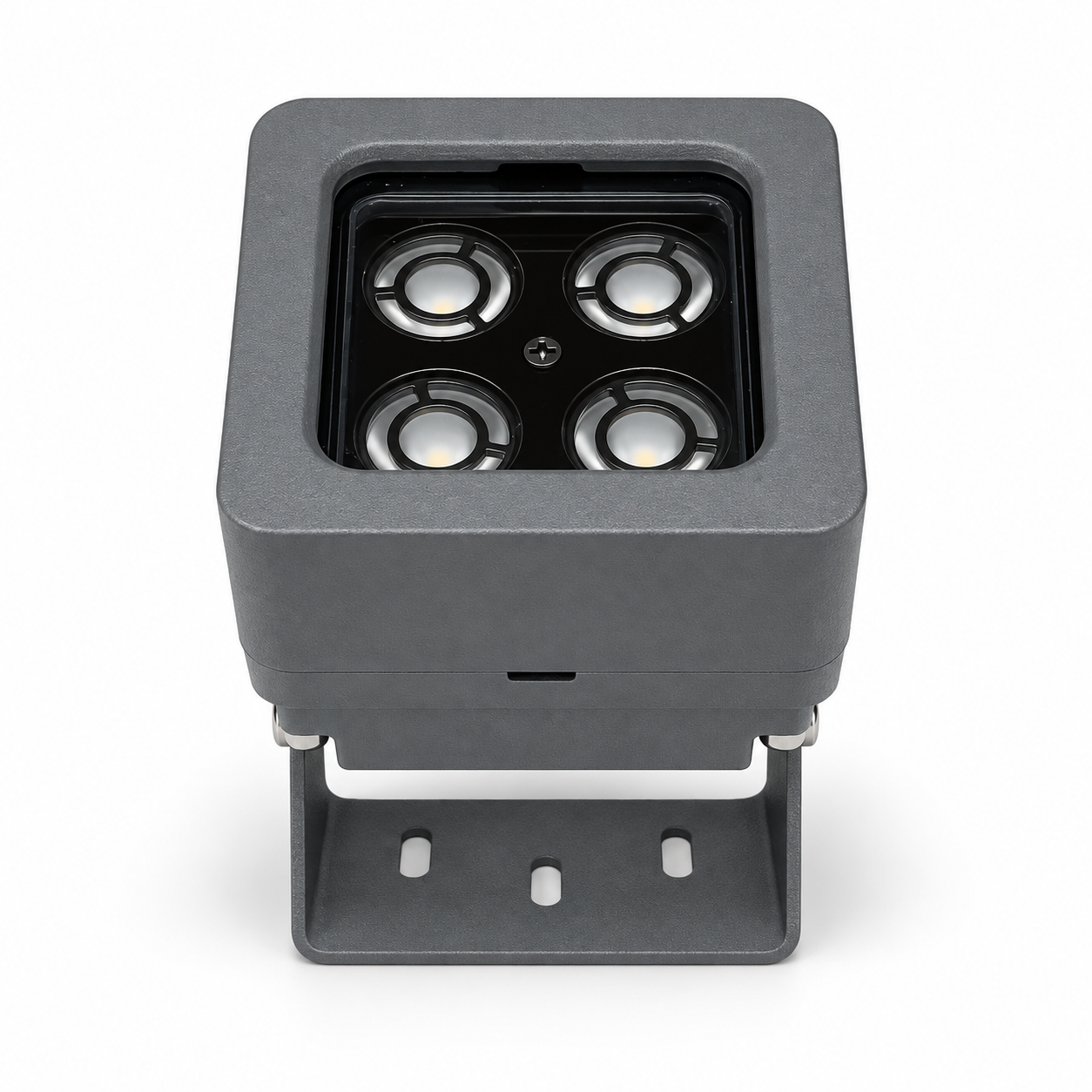

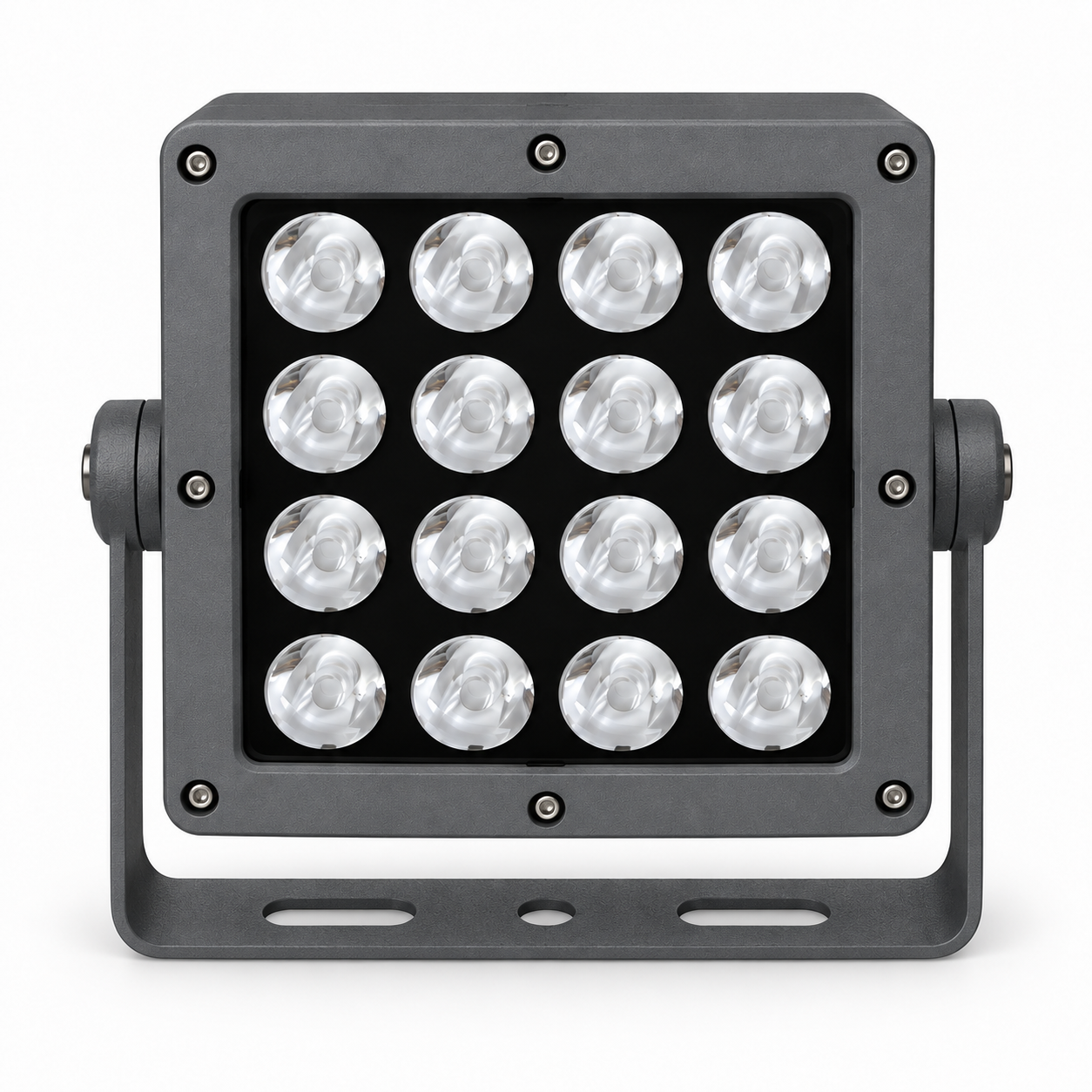

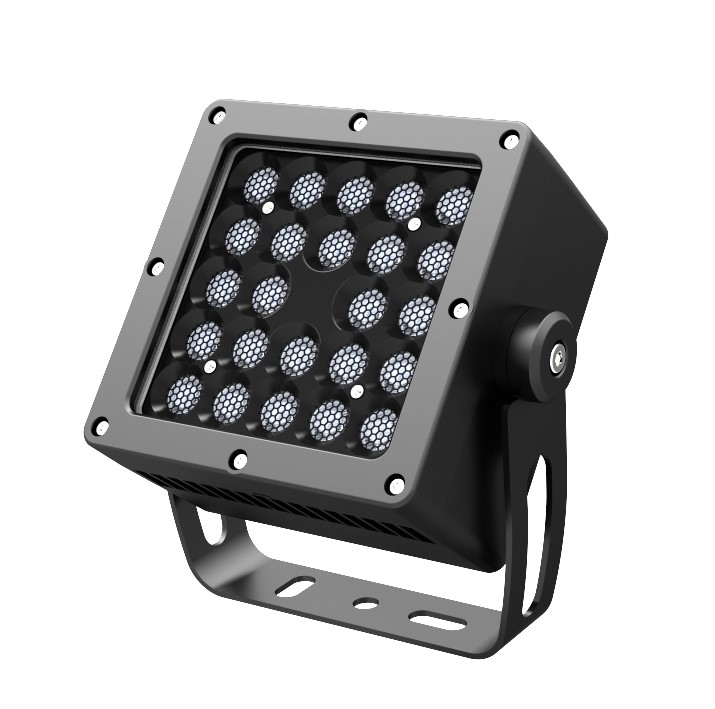

GD-P-150 LED Flood Light

LED Flood Light

GD-P-150

Product Features

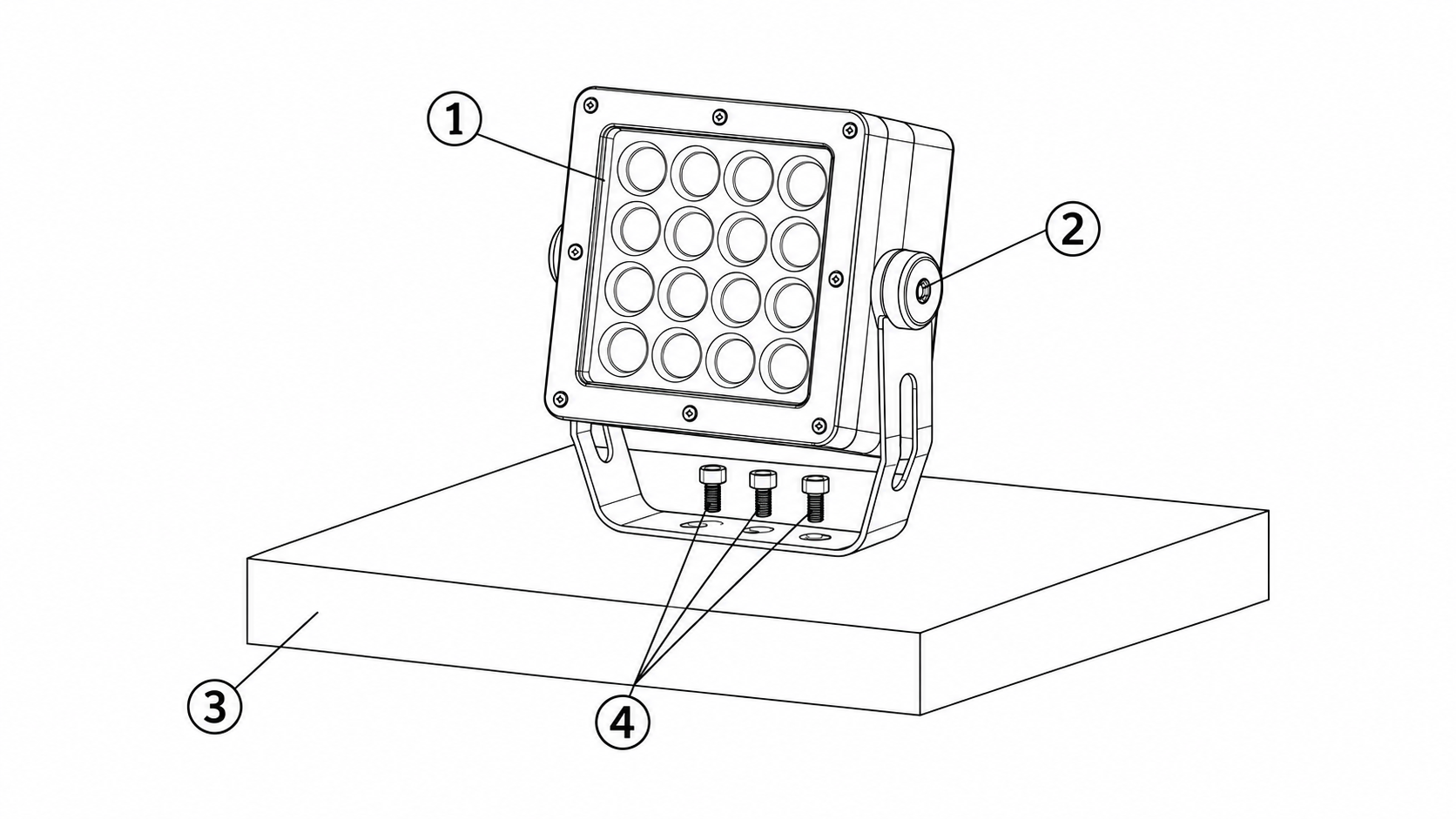

  • The visible U-shaped bracket supports aiming adjustment and surface mounting for focused exterior lighting layouts.
  • Choose from B50F, B75F, T150F, T180F and T200F housings with source-matched LED arrangements and dimensions.
  • Selected T150F, T180F and T200F configurations list an aperture plate, honeycomb grid or cut-off hood as light-control accessories.
Request a QuoteBack to products

Specifications

Input voltageAC220V / DC24VLED colorR/G/B/Y/W/WW/RGB
Beam angle options15° / 30°Surface treatmentOxidation / spray coating
MaterialHigh-strength die-cast aluminium housing + tempered glass

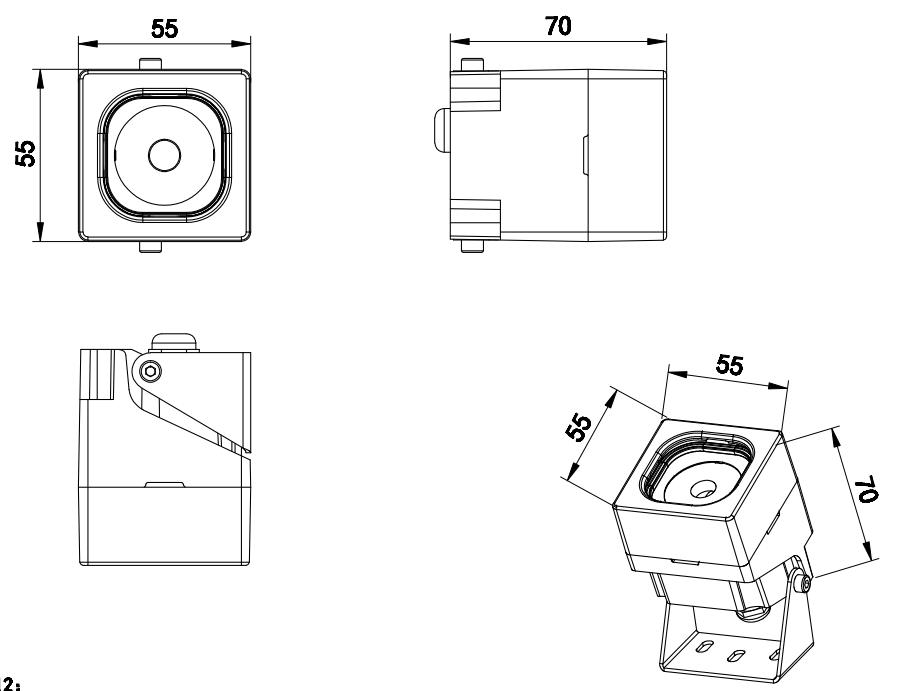

B50F housing dimensions — 55 × 55 × 70 mm.
B50F housing dimensions — 55 × 55 × 70 mm.

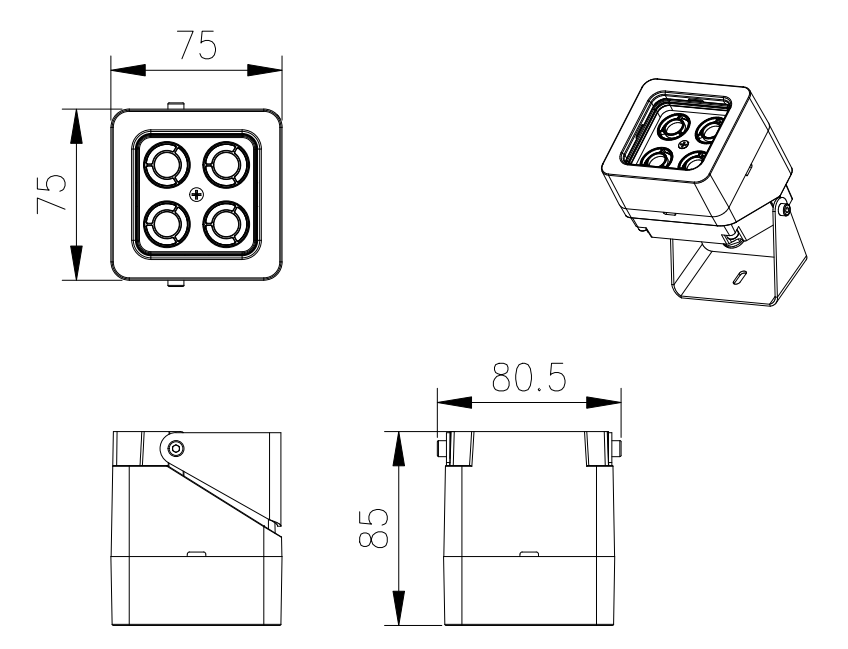

B75F housing dimensions — 75 × 75 × 85 mm.
B75F housing dimensions — 75 × 75 × 85 mm.

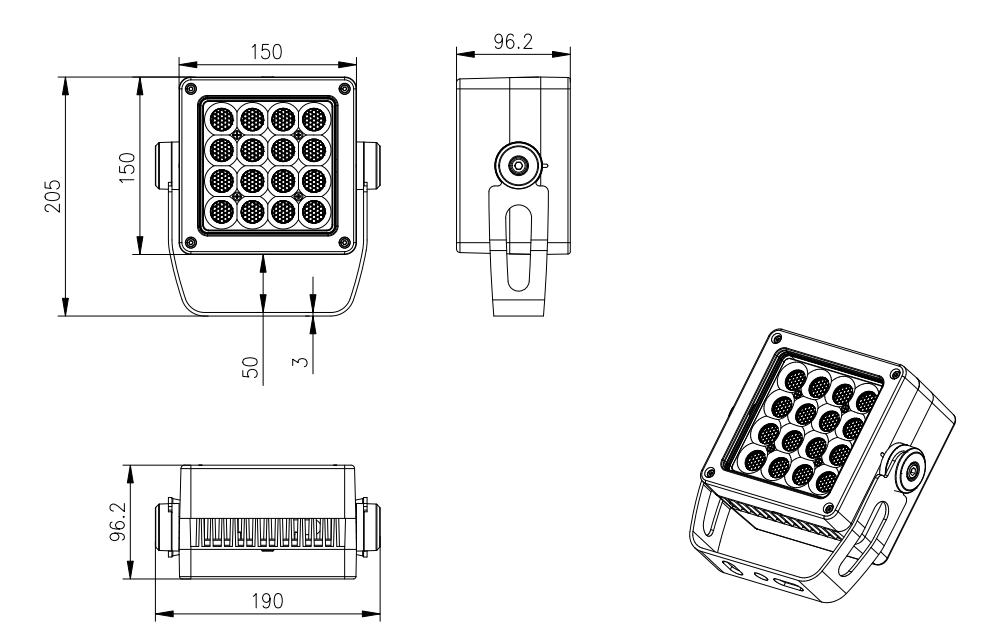

Yuheng T150F housing dimensions — 150 × 150 × 205 mm; housing depth 96.2 mm.
Yuheng T150F housing dimensions — 150 × 150 × 205 mm; housing depth 96.2 mm.

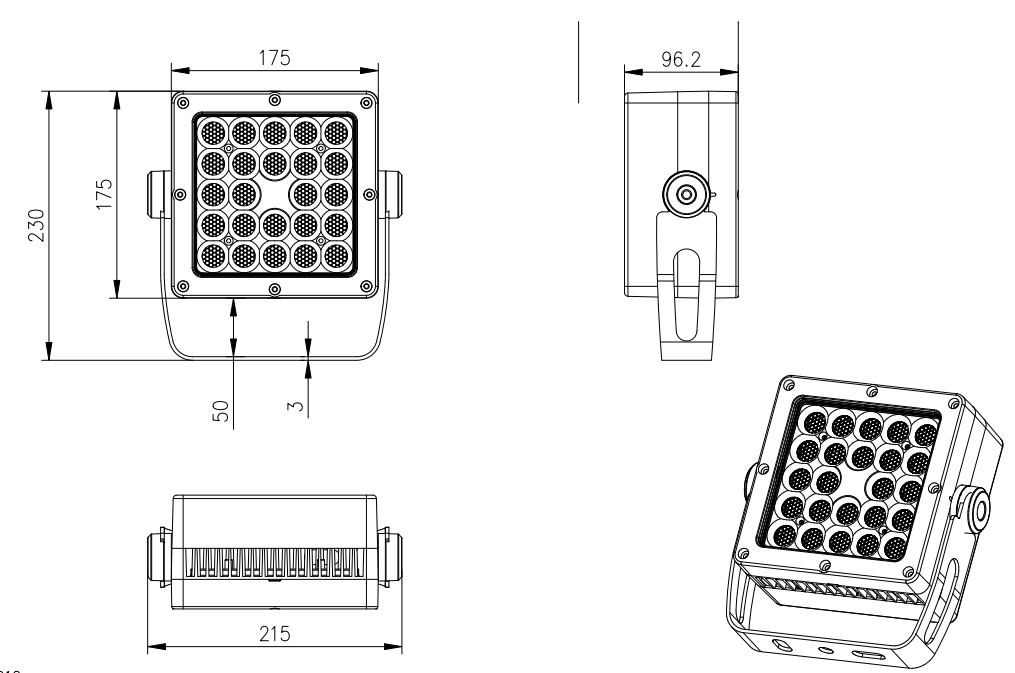

Yuheng T180F housing dimensions — 175 × 175 × 230 mm; housing depth 96.2 mm.
Yuheng T180F housing dimensions — 175 × 175 × 230 mm; housing depth 96.2 mm.

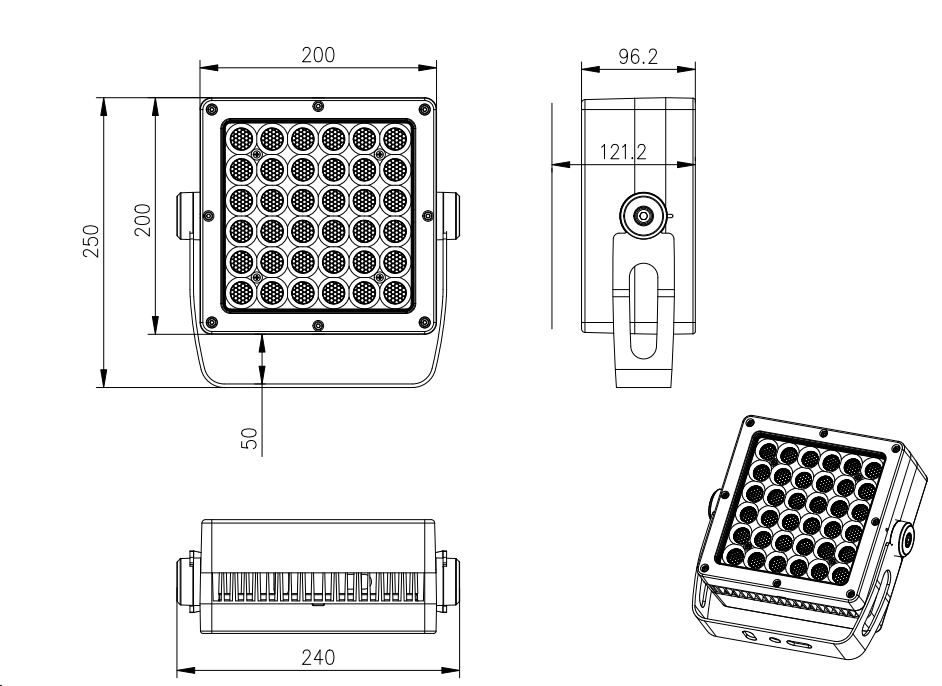

Yuheng T200F housing dimensions — 200 × 200 × 250 mm; drawing also shows 96.2 / 121.2 mm side depths.
Yuheng T200F housing dimensions — 200 × 200 × 250 mm; drawing also shows 96.2 / 121.2 mm side depths.

Application

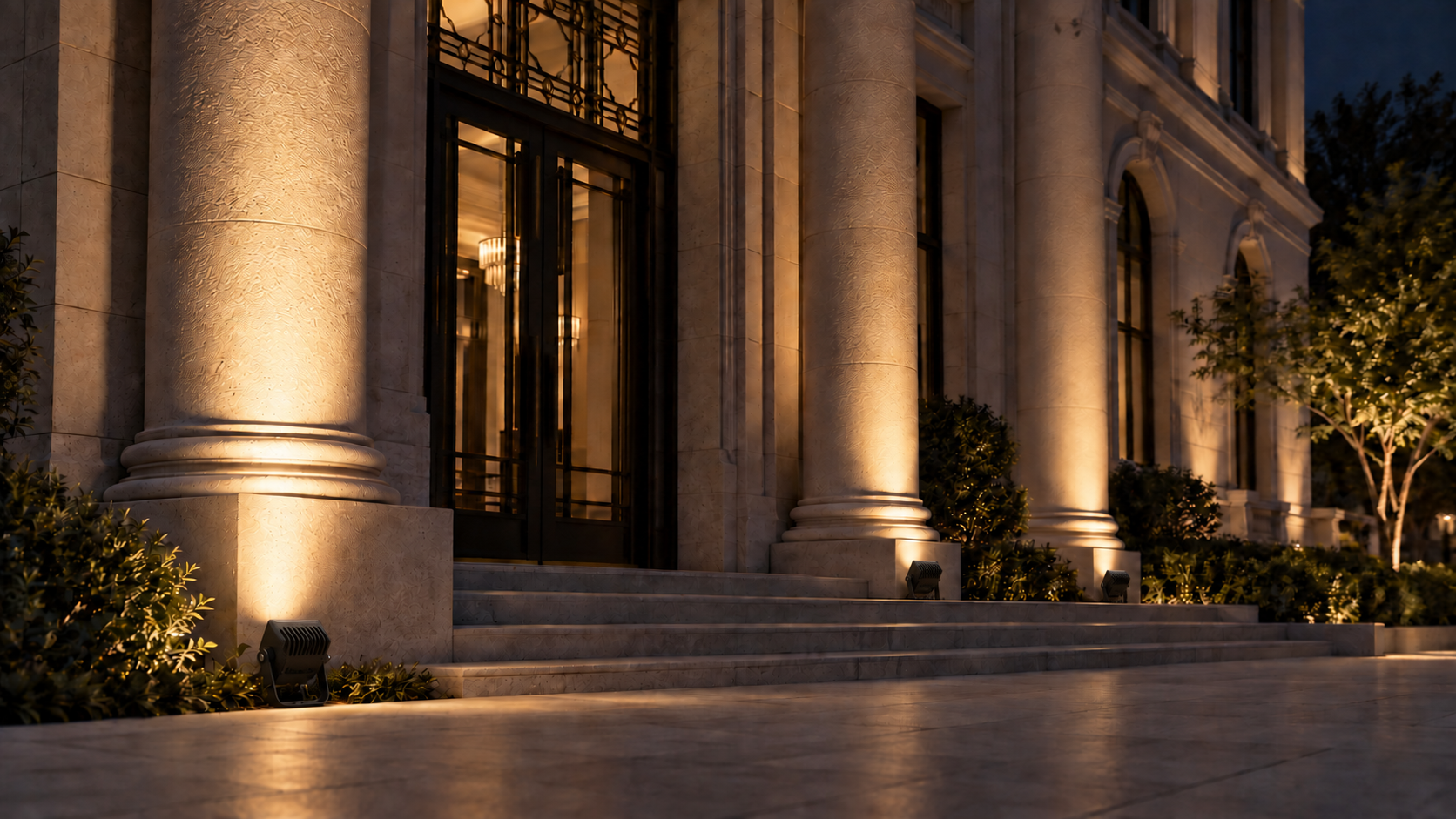

Application illustration — each visible floodlight is oriented with its emitting face toward the corresponding facade column.
Application illustration — each visible floodlight is oriented with its emitting face toward the corresponding facade column.

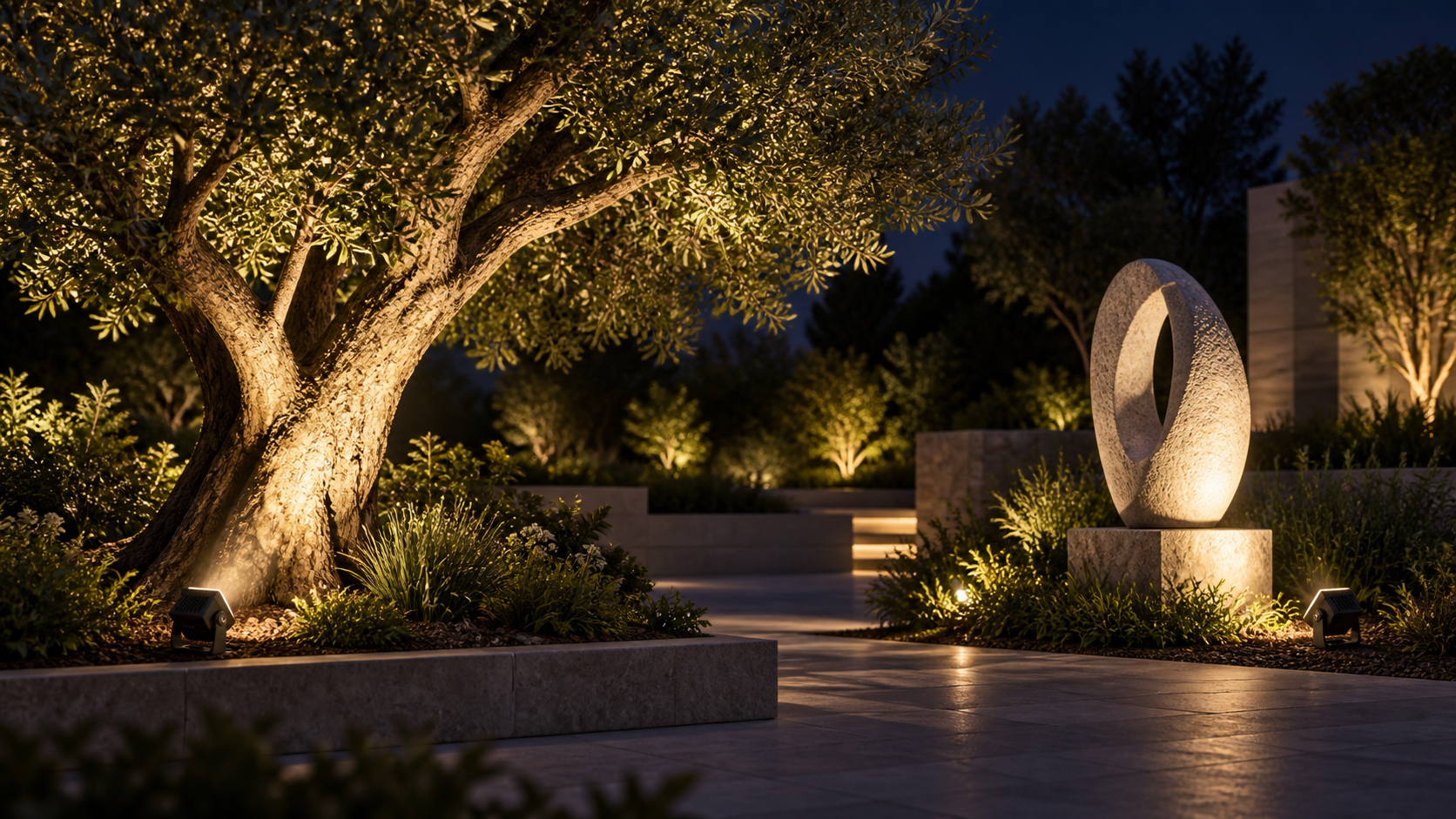

Application illustration — focused lighting for landscape trees and sculpture.
Application illustration — focused lighting for landscape trees and sculpture.
