LED Flood Light
GD-FL-MF65
Product Features
- Ultra-compact 65 mm housing fits columns, reveals and restricted mounting zones.
- Deep hood reduces direct glare and keeps the fixture discreet at close viewing distances.
- 6W and 8W options provide precise accent light with low visual impact.
- Adjustable bracket supports accurate aiming on small architectural details.
Specifications

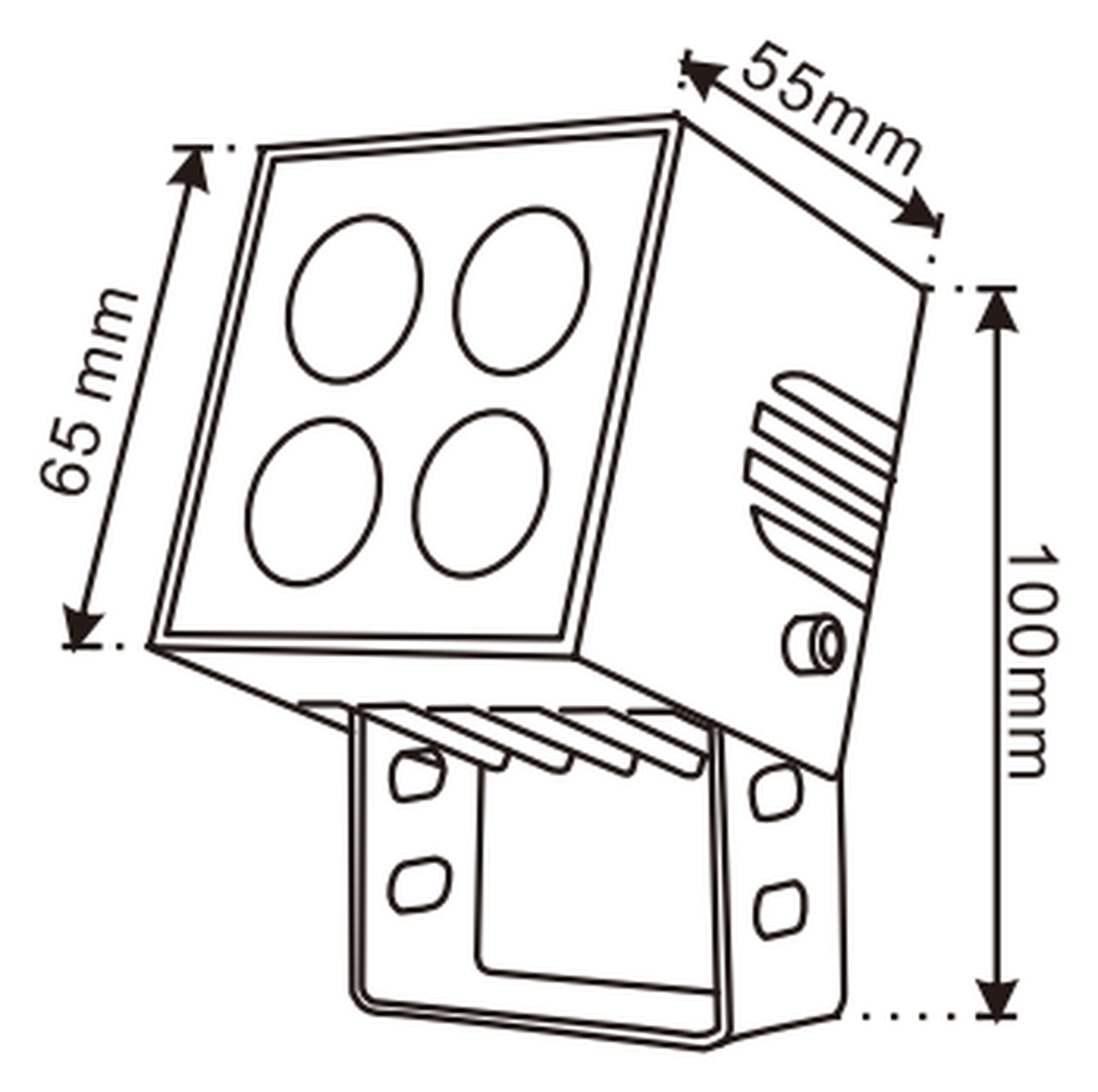

| Product type | Compact Square LED Floodlight | Dimensions | 65 × 65 × 55 mm body; 100 mm overall height |
|---|---|---|---|
| Power | 6W / 8W single color; 16W RGBW | LED board size | 55 × 55 mm |
| Light source type | Integrated lens / 3030 / 3535 / XPE where specified | Light color | Single Color / RGB / RGBW where specified |
| Beam angle | 10° / 15° / 30° / 45° / 60° | Control mode | Single Color / DMX512 |
| IP Rating | IP65 | Material | Die-cast aluminum with heat-dissipation fins |
| Mounting bracket | Adjustable heavy-duty bracket | Configuration 1 | 3*2W · Single colour AC220V |
| Configuration 2 | 4*2W · Single colour AC220V | Configuration 3 | 3*2W · Single colour DC24V |
| Configuration 4 | 4*2W · Single colour DC24V | Configuration 5 | 1*8W · Single colour AC220V |
| Configuration 6 | 1*8W · Single colour DC24V | Configuration 7 | 4*4W · RGBW DC24V |
Application Illustrations
