LED Flood Light
GD-FL-MF195
Product Features
- 195 mm housing supports high-output illumination for medium and large architectural surfaces.
- Dense optical layout produces strong, even coverage from a compact square form.
- RGB and RGBW versions enable dynamic color scenes within the same coordinated housing.
- Generous heat-sink area and heavy-duty bracket support stable long-duration operation.
Specifications

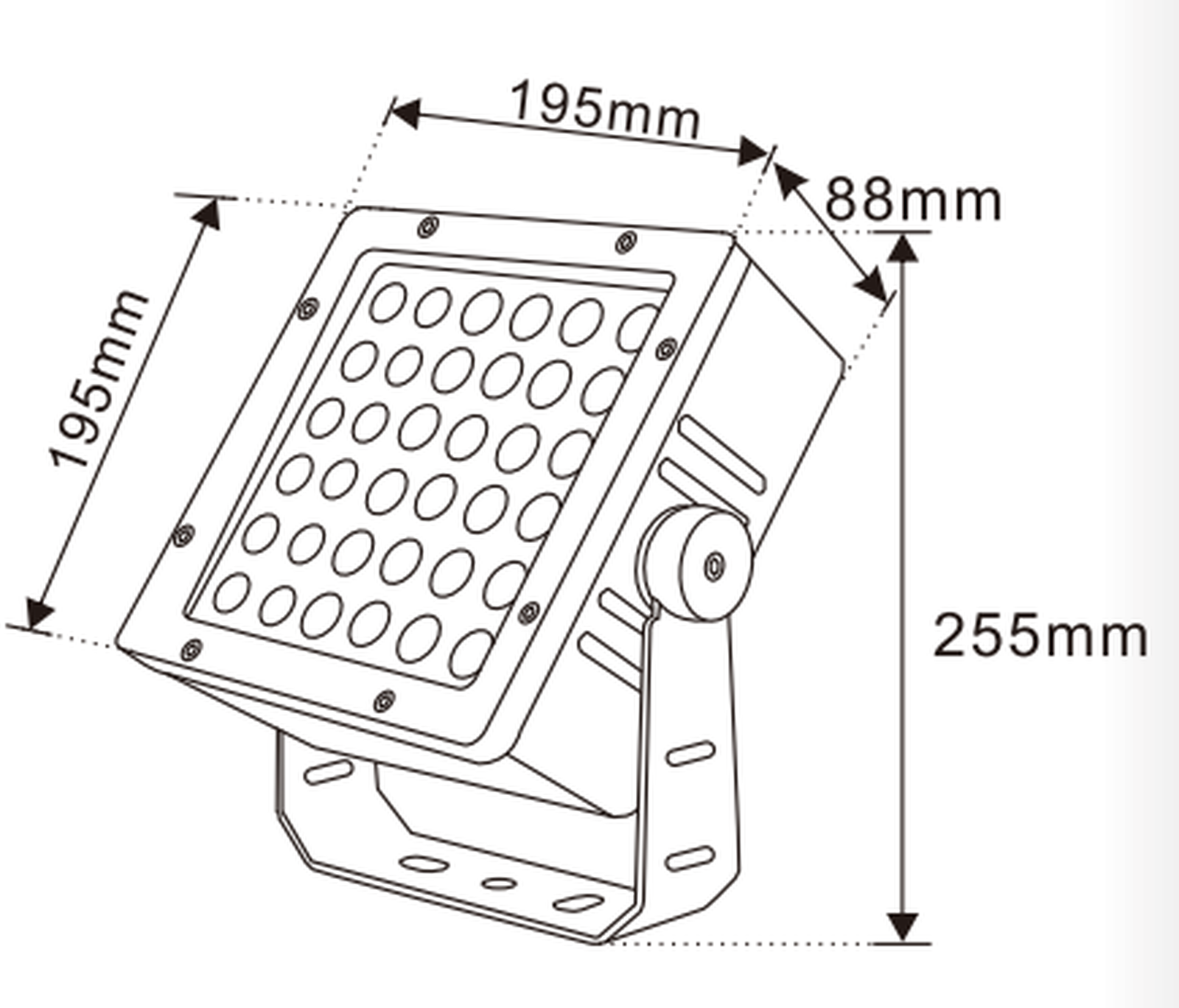

| Product type | High-Output Square Architectural Floodlight | Dimensions | 195 × 195 × 88 mm body; 255 mm overall height |
|---|---|---|---|
| Power | 48W / 60W / 72W single color; 108W RGB / 144W RGBW | LED board size | 154 × 154 mm |
| Light source type | Integrated lens / 3030 / 3535 / XPE where specified | Light color | Single Color / RGB / RGBW where specified |
| Beam angle | 10° / 15° / 30° / 45° / 60° | Control mode | Single Color / DMX512 |
| IP Rating | IP65 | Material | Die-cast aluminum with heat-dissipation fins |
| Mounting bracket | Adjustable heavy-duty bracket | Configuration 1 | 24*2W · Single colour AC220V |
| Configuration 2 | 36*2W · Single colour AC220V | Configuration 3 | 20*3W · Single colour AC220V |
| Configuration 4 | 36*3W RGB · DC24V | Configuration 5 | 36*4W RGBW · DC24V |
Application Illustrations
