LED Flood Light
GD-FL-MF165
Product Features
- 165 mm optical face provides balanced coverage for façades, trees and structural features.
- 18- and 24-lens layouts give designers flexible intensity and beam-density choices.
- Large finned aluminum housing improves heat dissipation for sustained operation.
- Deep recessed optics and adjustable bracket improve glare control and aiming precision.
Specifications

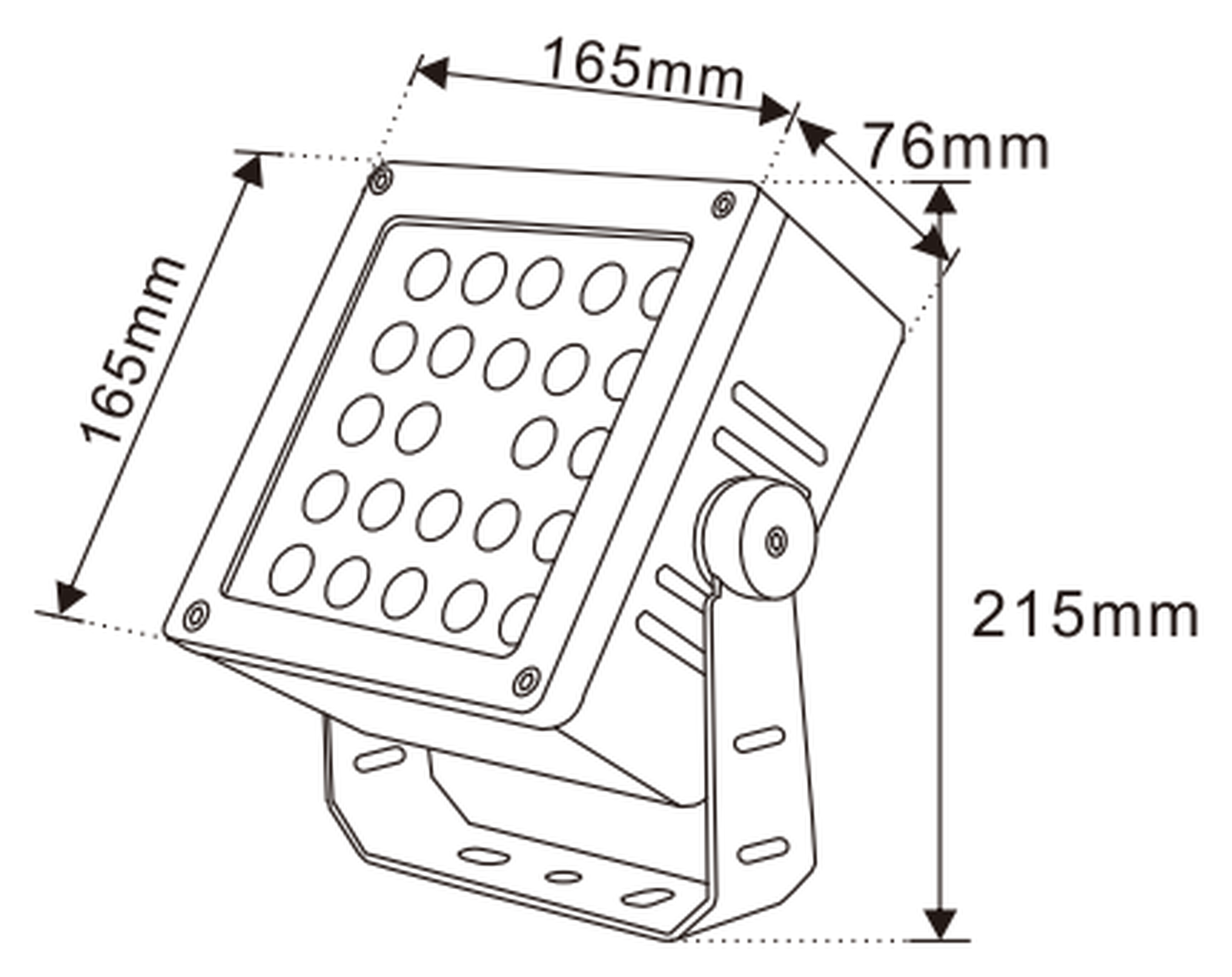

| Product type | Medium Square Architectural Floodlight | Dimensions | 165 × 165 × 76 mm body; 215 mm overall height |
|---|---|---|---|
| Power | 36W / 48W single color; 96W RGBW | LED board size | 125 × 125 mm |
| Light source type | Integrated lens / 3030 / 3535 / XPE where specified | Light color | Single Color / RGB / RGBW where specified |
| Beam angle | 10° / 15° / 30° / 45° / 60° | Control mode | Single Color / DMX512 |
| IP Rating | IP65 | Material | Die-cast aluminum with heat-dissipation fins |

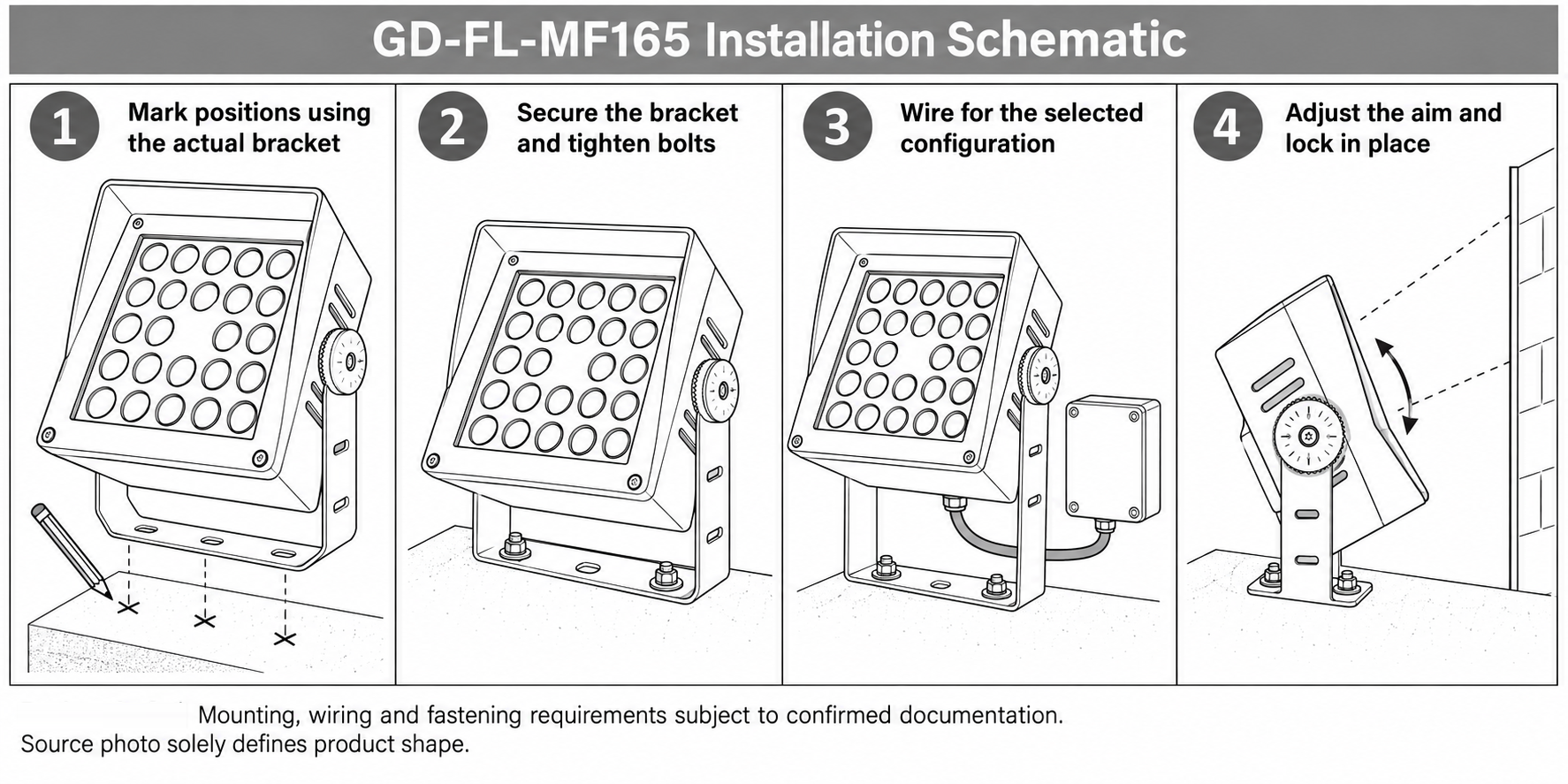

| Mounting bracket | Adjustable heavy-duty bracket | Configuration 1 | 18*2W · Single colour AC220V |
| Configuration 2 | 18*2W · Single colour DC24V | Configuration 3 | 24*2W · Single colour AC220V |
| Configuration 4 | 16*3W · Single colour AC220V | Configuration 5 | 24*4W · RGBW DC24V |
Application Illustrations
