LED Flood Light
GD-FL-MF135
Product Features
- 135 mm square platform combines compact size with higher lumen capacity.
- Broad optical face produces smoother coverage on façades and landscape features.
- Three practical output levels allow brightness to be matched without changing housing style.

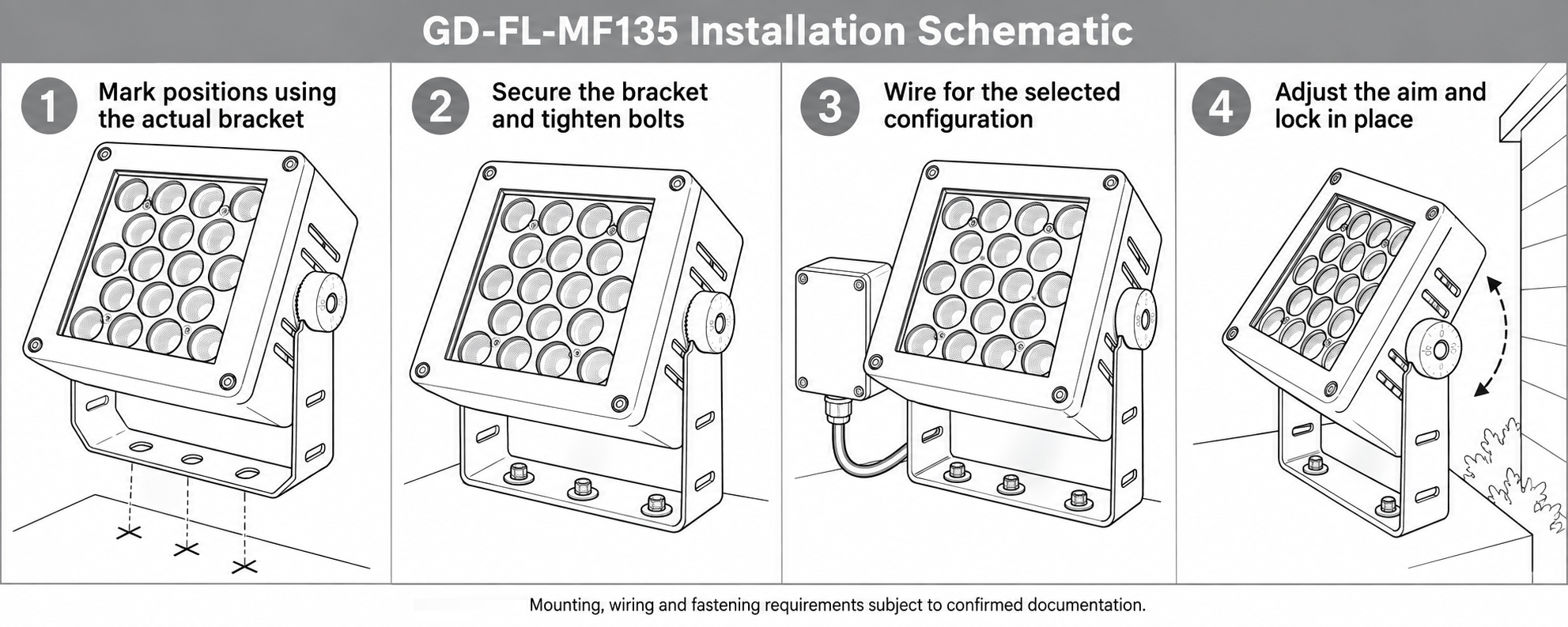

- Rigid yoke and indexed side joint support precise aiming and stable installation.
Specifications

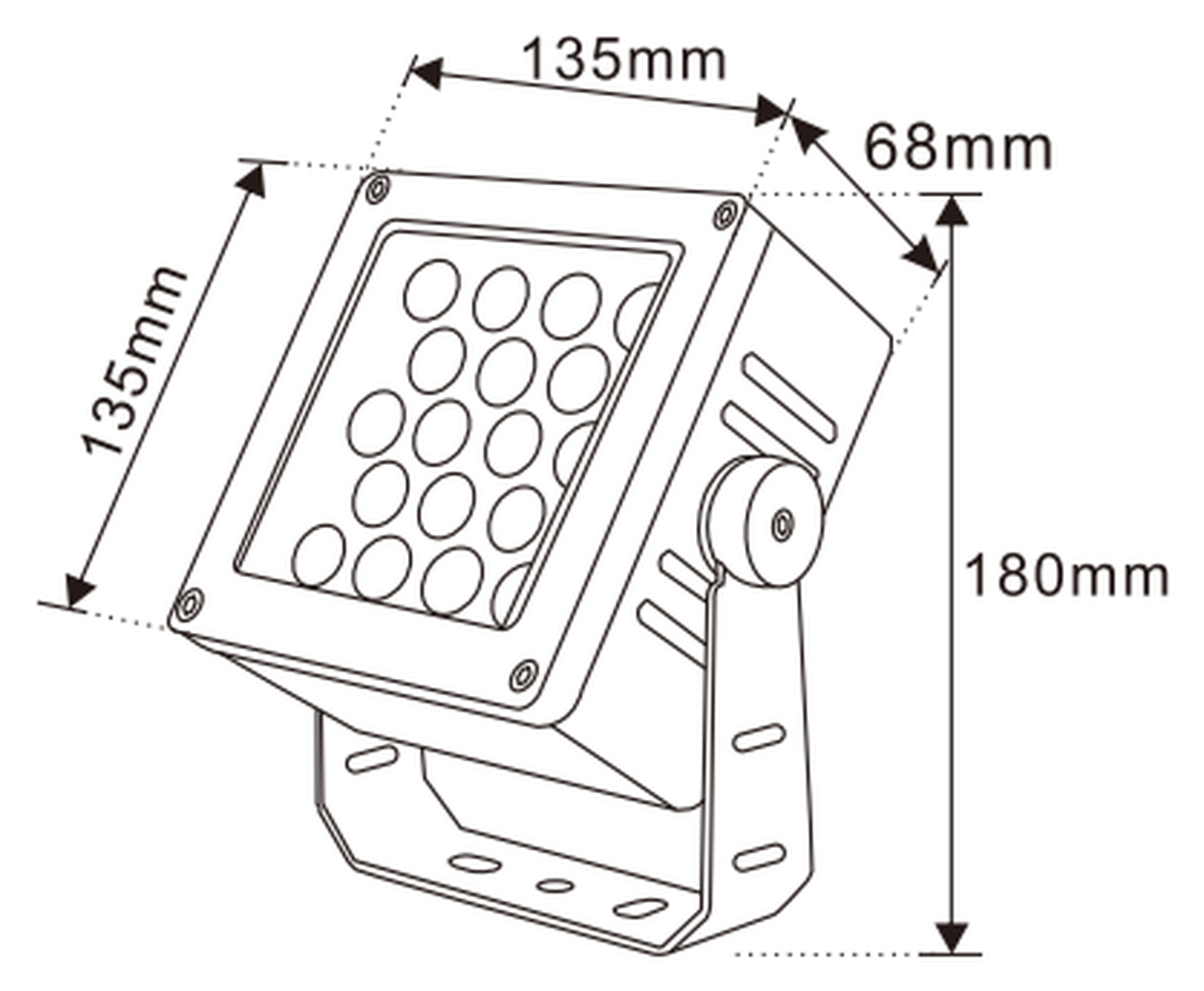

| Product type | Square Architectural LED Floodlight | Dimensions | 135 × 135 × 68 mm body; 180 mm overall height |
|---|---|---|---|
| Power | 24W / 36W single color; 72W RGBW | LED board size | 100 × 100 mm |
| Light source type | Integrated lens / 3030 / 3535 / XPE where specified | Light color | Single Color / RGB / RGBW where specified |
| Beam angle | 10° / 15° / 30° / 45° / 60° | Control mode | Single Color / DMX512 |
| IP Rating | IP65 | Material | Die-cast aluminum with heat-dissipation fins |
| Mounting bracket | Adjustable heavy-duty bracket | Configuration 1 | 12*2W · Single colour AC220V |
| Configuration 2 | 12*2W · Single colour DC24V | Configuration 3 | 18*2W · Single colour AC220V |
| Configuration 4 | 18*2W · Single colour DC24V | Configuration 5 | 9*4W · Single colour AC220V |
| Configuration 6 | 9*4W · Single colour DC24V | Configuration 7 | 18*4W · RGBW DC24V |
Application Illustrations
Contact
Outline your project requirements.
Share your project requirements with GDXC. For immediate contact, use the telephone or WhatsApp details on the Contact page.
