LED Flood Light
GD-FL-MF100
Product Features
- Slim 100 mm body integrates neatly into façade details and compact landscape positions.
- Choice of 2-lens or 6-lens layouts balances intensity and visual uniformity.
- Hooded optical chamber improves comfort by shielding the light source from normal viewpoints.
- AC220V and DC24V options simplify matching different project wiring systems.
Specifications

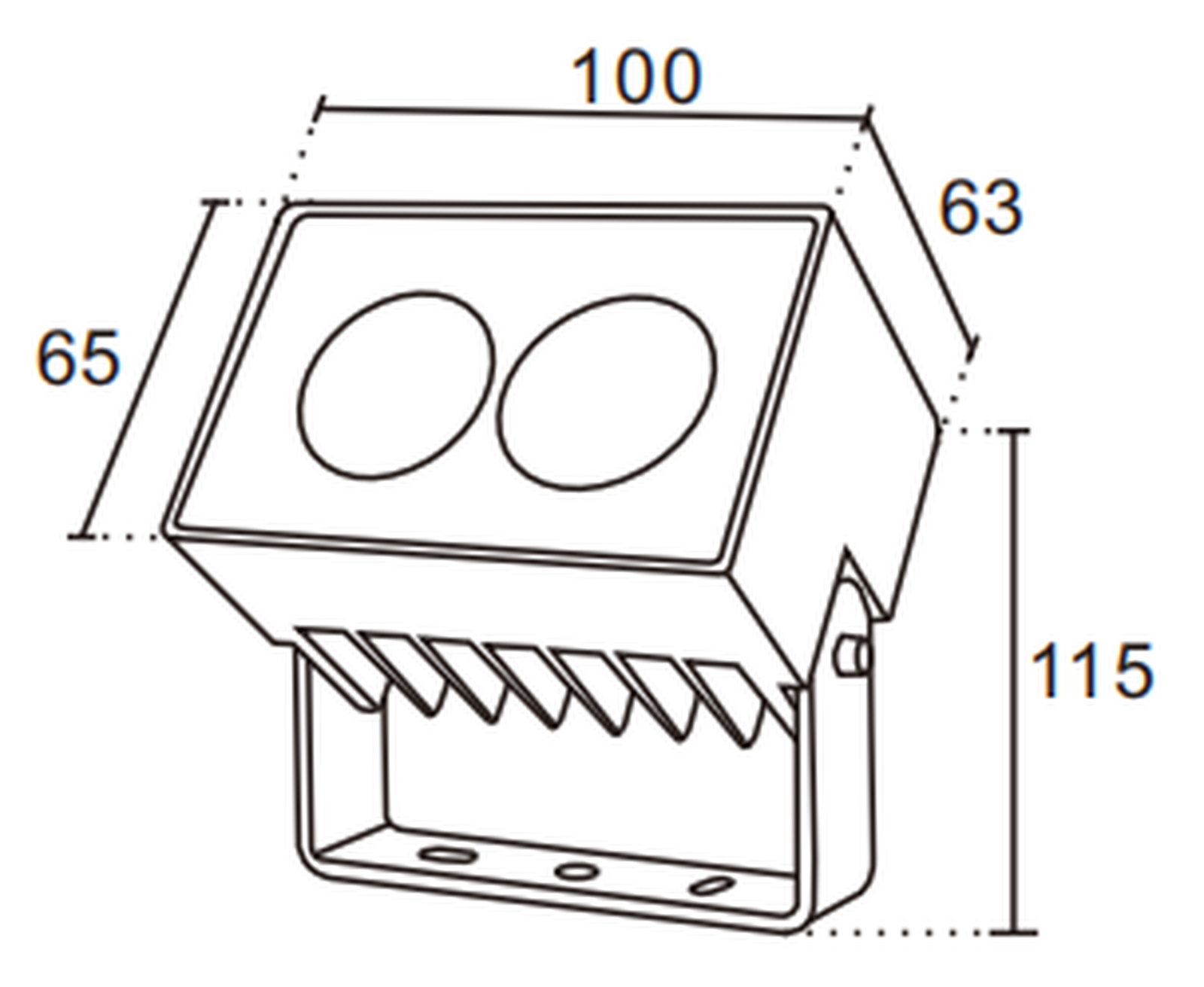

| Product type | Compact Square LED Floodlight | Dimensions | 100 × 65 × 63 mm body; 115 mm overall height |
|---|---|---|---|
| Power | 10W / 12W single color; 24W RGBW | LED board size | 82 × 52 mm |
| Light source type | Integrated lens / 3030 / 3535 / XPE where specified | Light color | Single Color / RGB / RGBW where specified |
| Beam angle | 10° / 15° / 30° / 45° / 60° | Control mode | Single Color / DMX512 |
| IP Rating | IP65 | Material | Die-cast aluminum with heat-dissipation fins |
| Mounting bracket | Adjustable heavy-duty bracket | Configuration 1 | 6*2W · Single colour AC220V |
| Configuration 2 | 6*2W · Single colour DC24V | Configuration 3 | 2*5W · Single colour AC220V |
| Configuration 4 | 2*5W · Single colour DC24V | Configuration 5 | 6*4W · RGBW DC24V |
Application Illustrations
