LED Flood Light
GD-FL-HX410
Product Features
- Ø410 mm housing delivers maximum output for landmark façades and very long projection distances.
- 168-lens optical array creates powerful, evenly distributed architectural illumination.
- Large radial heat-sink body provides the thermal capacity required for sustained high output.

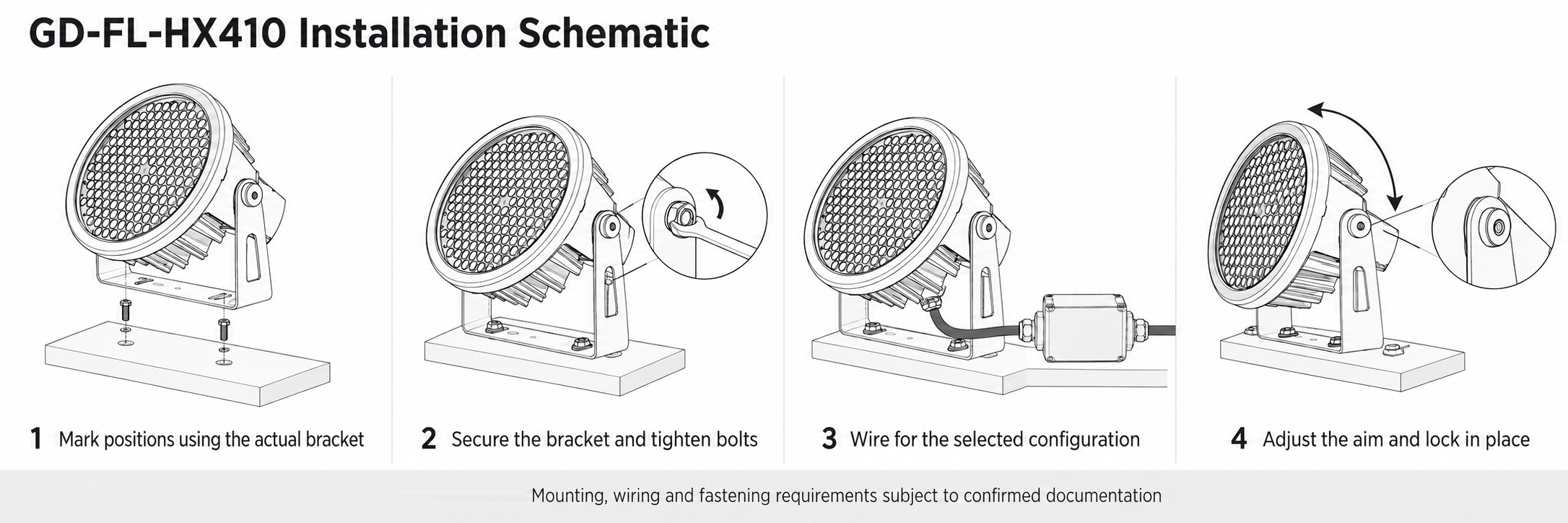

- Reinforced mounting bracket supports stable, precise aiming on large-scale exterior structures.
Specifications

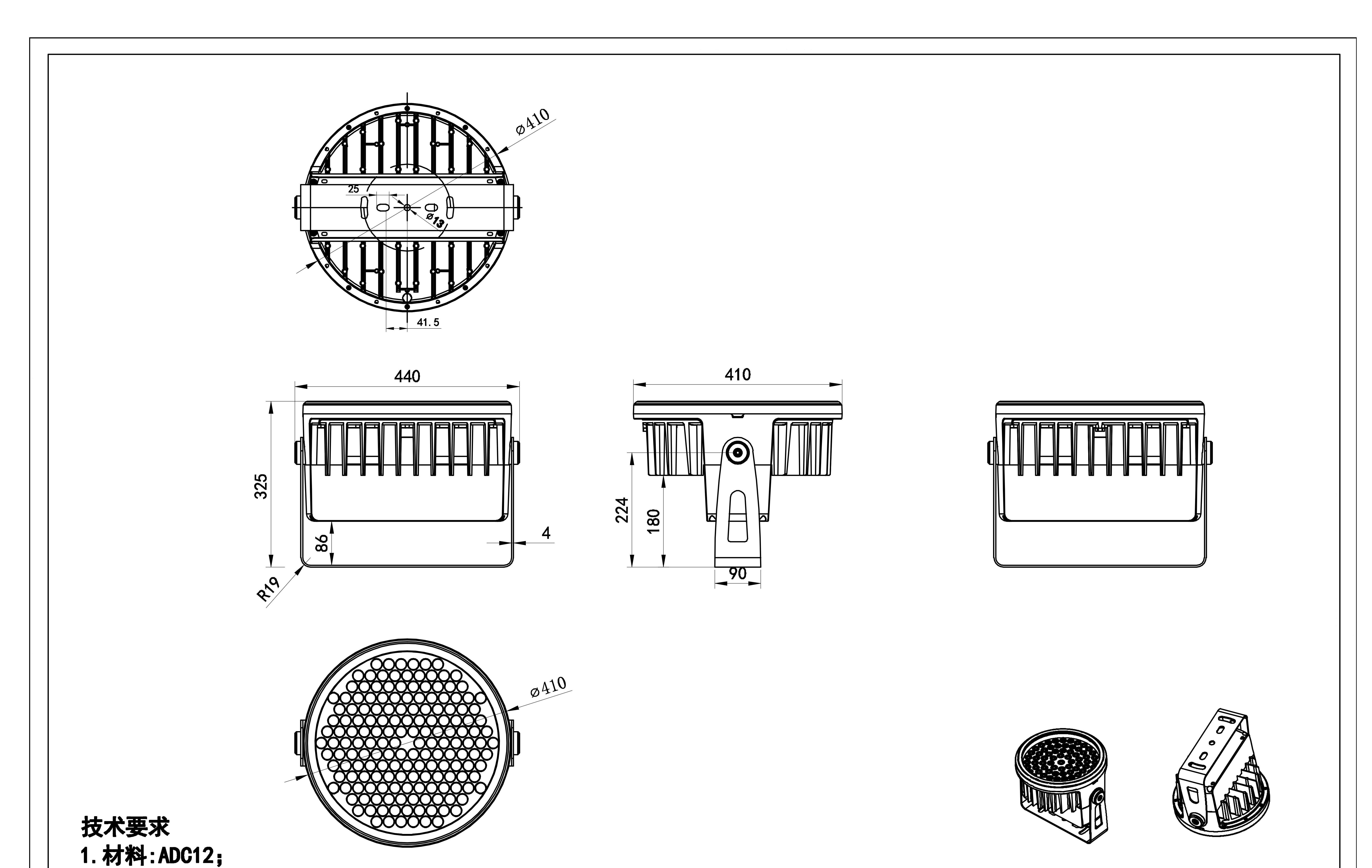

| Product type | Ultra-High-Output Round Architectural Floodlight | Dimensions | Ø410 × 325 mm |
|---|---|---|---|
| Power | 336W / 672W single color | LED board size | Ø360 mm |
| Light source type | Integrated lens / 3030 / 3535 / XPE where specified | Light color | Single Color / RGB / RGBW where specified |
| Beam angle | 10° / 15° / 30° / 45° / 60° | Control mode | Single Color / DMX512 |
| IP Rating | IP65 | Material | Die-cast aluminum with heat-dissipation fins |
| Mounting bracket | Adjustable heavy-duty bracket | Configuration 1 | 168*2W · Integrated lens AC220V |
| Configuration 2 | 168*4W · Integrated lens AC220V |
Application Illustrations
