LED Flood Light
GD-FL-HX325
Product Features
- Ø325 mm optical platform is designed for tall façades, monuments and long throw distances.
- 96-lens array combines high intensity with broad, uniform target coverage.
- Substantial radial heat sink supports reliable operation at elevated power levels.
- Heavy-duty yoke provides mechanical stability for exposed high-level mounting.
Specifications

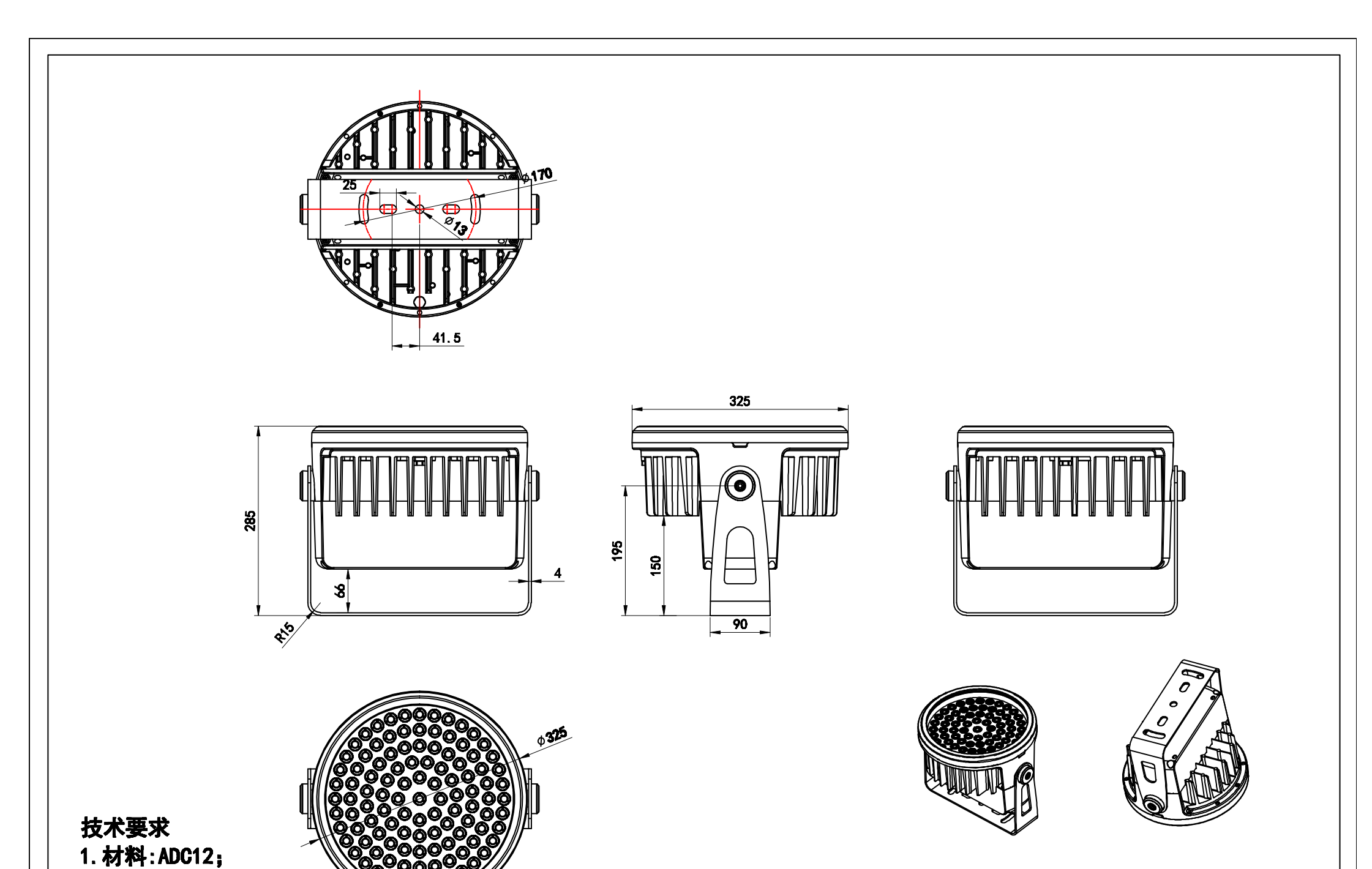

| Product type | Extra-Large Round Architectural Floodlight | Dimensions | Ø325 × 285 mm |
|---|---|---|---|
| Power | 192W / 384W single color | LED board size | Ø280 mm |
| Light source type | Integrated lens / 3030 / 3535 / XPE where specified | Light color | Single Color / RGB / RGBW where specified |
| Beam angle | 10° / 15° / 30° / 45° / 60° | Control mode | Single Color / DMX512 |
| IP Rating | IP65 | Material | Die-cast aluminum with heat-dissipation fins |
| Mounting bracket | Adjustable heavy-duty bracket | Configuration 1 | 96*2W · Integrated lens AC220V |
| Configuration 2 | 96*4W · Integrated lens AC220V |
Application Illustrations
