LED Flood Light
GD-FL-HX285
Product Features
- Up to 144W output serves tall façades, monuments and longer projection distances.
- Large Ø240 mm optical area delivers strong coverage with controlled intensity.
- Multiple high-power LED arrangements support project-specific photometric design.
- Substantial heat-sink body and wide bracket provide thermal and mechanical stability.
Specifications

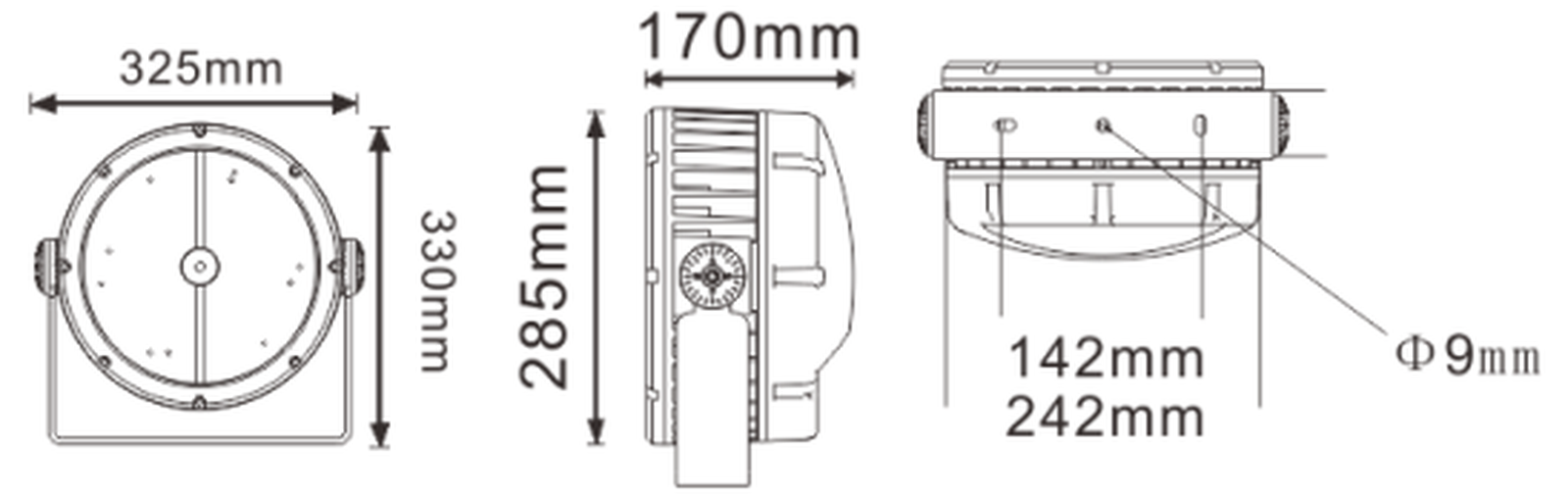

| Product type | Extra-Large Round Architectural Floodlight | Dimensions | 285 × 170 mm body; 325 × 330 mm overall |
|---|---|---|---|
| Power | 96W / 100W / 144W single color | LED board size | Ø240 mm |
| Light source type | Integrated lens / 3030 / 3535 / XPE where specified | Light color | Single Color / RGB / RGBW where specified |
| Beam angle | 10° / 15° / 30° / 45° / 60° | Control mode | Single Color / DMX512 |
| IP Rating | IP65 | Material | Die-cast aluminum with heat-dissipation fins |
| Mounting bracket | Adjustable heavy-duty bracket | Configuration 1 | 100*1W · Integrated lens AC220V |
| Configuration 2 | 24*4W · Integrated lens AC220V | Configuration 3 | 72*2W · Integrated lens AC220V |

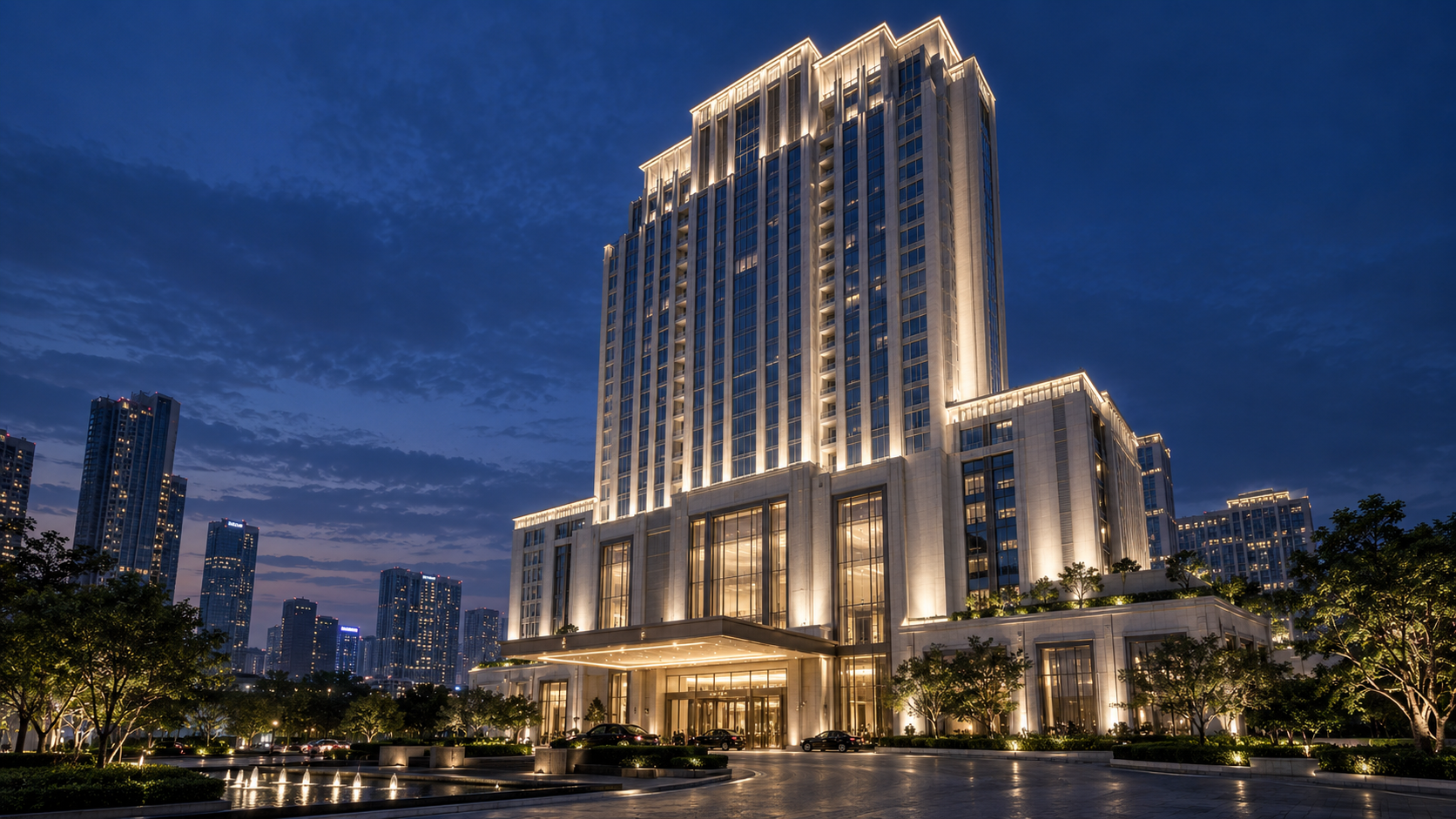

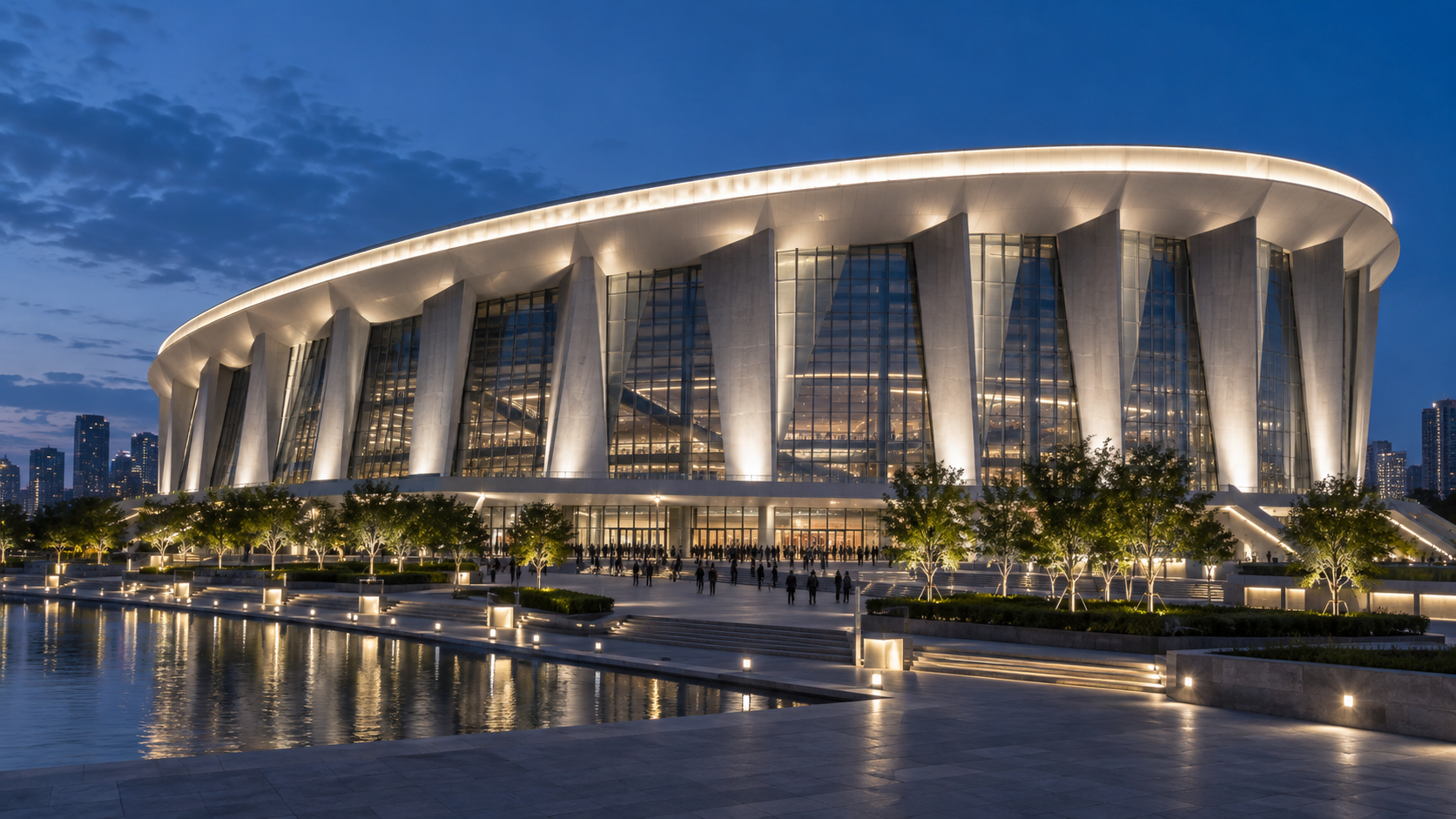

Application Illustrations
