LED Flood Light
GD-FL-HX280
Product Features
- Ø280 mm platform delivers powerful coverage for large façades and medium-distance projection.
- 72-lens array spreads output evenly while retaining precise optical control.
- Large finned body manages heat efficiently under high-power operation.
- Robust adjustable bracket supports repeatable aiming in demanding exterior projects.
Specifications

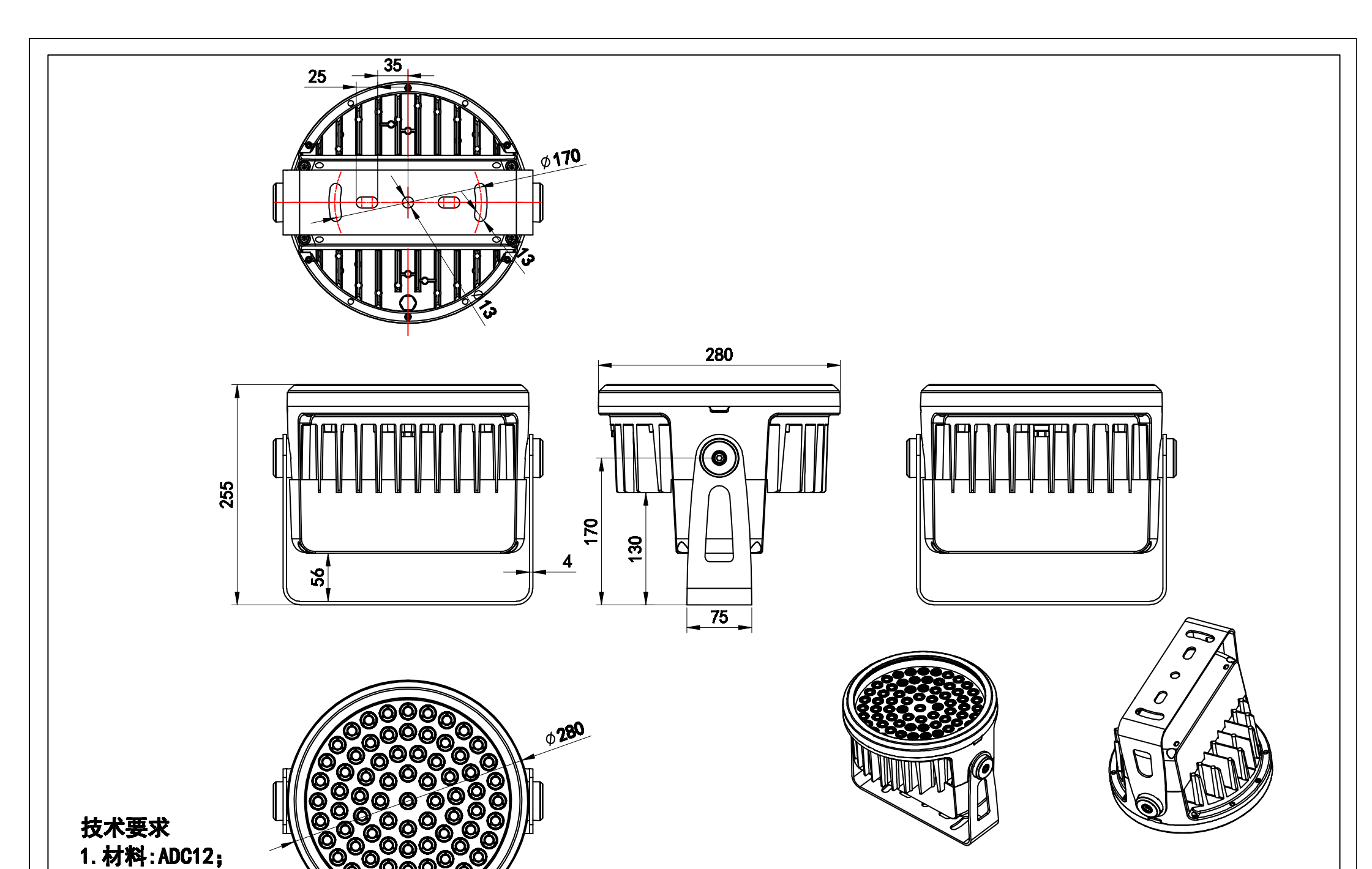

| Product type | Large Round Architectural Floodlight | Dimensions | Ø280 × 255 mm |
|---|---|---|---|
| Power | 144W / 288W single color | LED board size | Ø240 mm |
| Light source type | Integrated lens / 3030 / 3535 / XPE where specified | Light color | Single Color / RGB / RGBW where specified |
| Beam angle | 10° / 15° / 30° / 45° / 60° | Control mode | Single Color / DMX512 |
| IP Rating | IP65 | Material | Die-cast aluminum with heat-dissipation fins |
| Mounting bracket | Adjustable heavy-duty bracket | Configuration 1 | 72*2W · Integrated lens AC220V |
| Configuration 2 | 72*4W · Integrated lens AC220V |
Application Illustrations
