LED Flood Light
GD-FL-HX236
Product Features
- Ø236 mm housing combines high output with a relatively compact round profile.
- 48-lens optical array provides dense, even coverage for façades and landscape features.
- Deep radial fins increase heat-dissipation area for stable sustained performance.

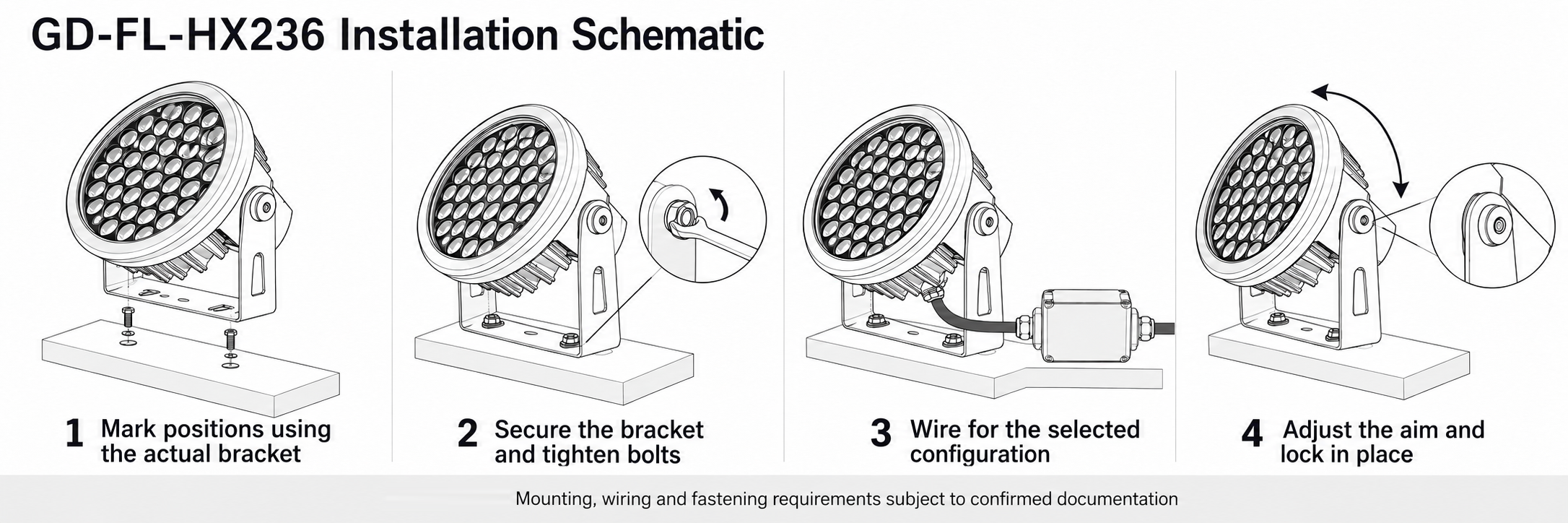

- Wide slotted bracket improves installation stability and aiming range.
Specifications

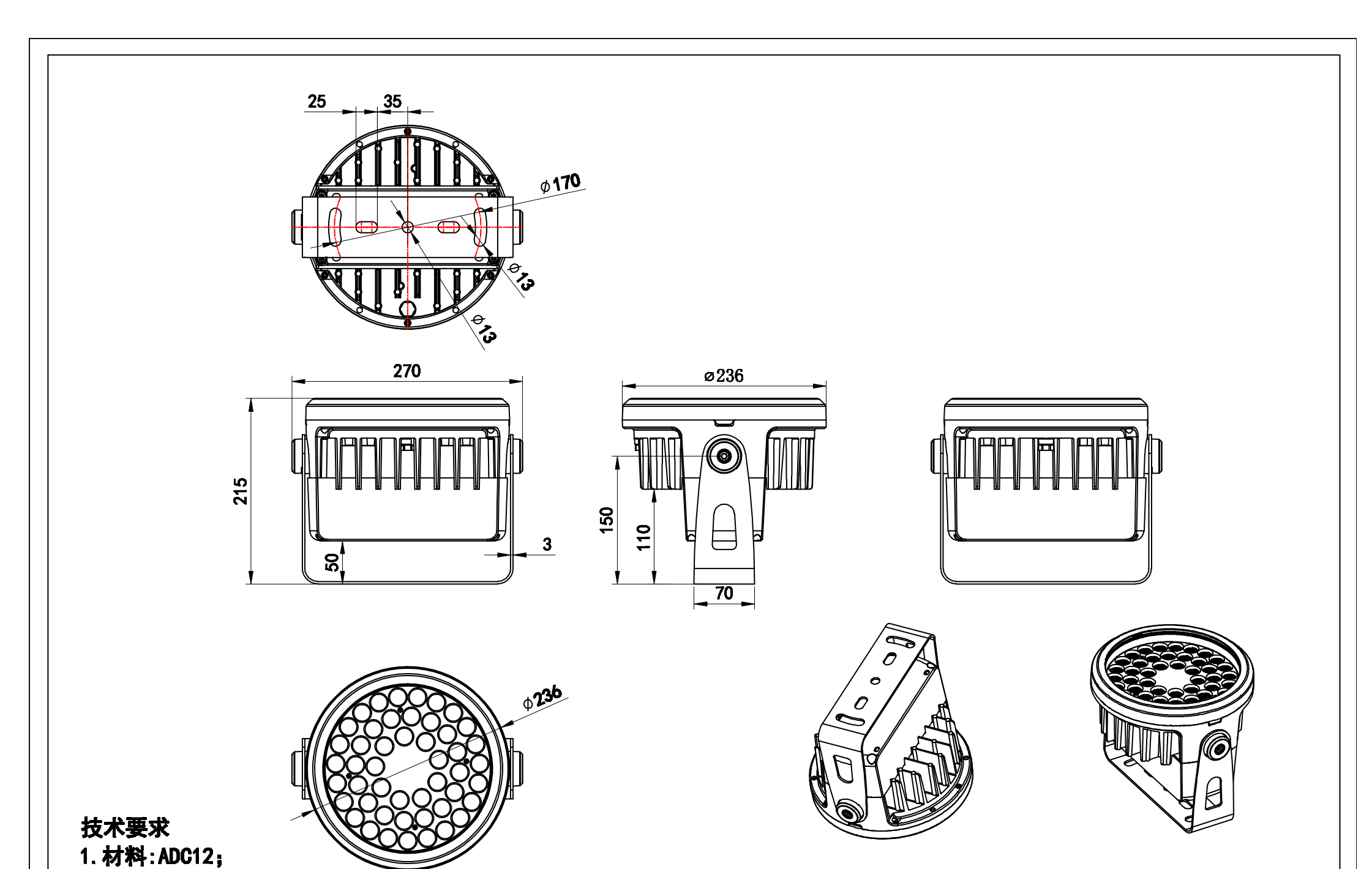

| Product type | High-Output Round Architectural Floodlight | Dimensions | Ø236 × 215 mm |
|---|---|---|---|
| Power | 96W / 192W single color | LED board size | Ø190 mm |
| Light source type | Integrated lens / 3030 / 3535 / XPE where specified | Light color | Single Color / RGB / RGBW where specified |
| Beam angle | 10° / 15° / 30° / 45° / 60° | Control mode | Single Color / DMX512 |
| IP Rating | IP65 | Material | Die-cast aluminum with heat-dissipation fins |
| Mounting bracket | Adjustable heavy-duty bracket | Configuration 1 | 48*2W · Integrated lens AC220V |
| Configuration 2 | 48*4W · Integrated lens AC220V |
Application Illustrations
