LED Flood Light
GD-FL-HX235
Product Features
- 235 mm optical platform provides powerful, broad coverage for prominent façades and landscapes.
- Large aperture supports high-density layouts while maintaining even visual distribution.
- Generous radial fins dissipate heat efficiently for stable high-output operation.
- Heavy-duty yoke provides secure aiming for demanding exterior installations.
Specifications

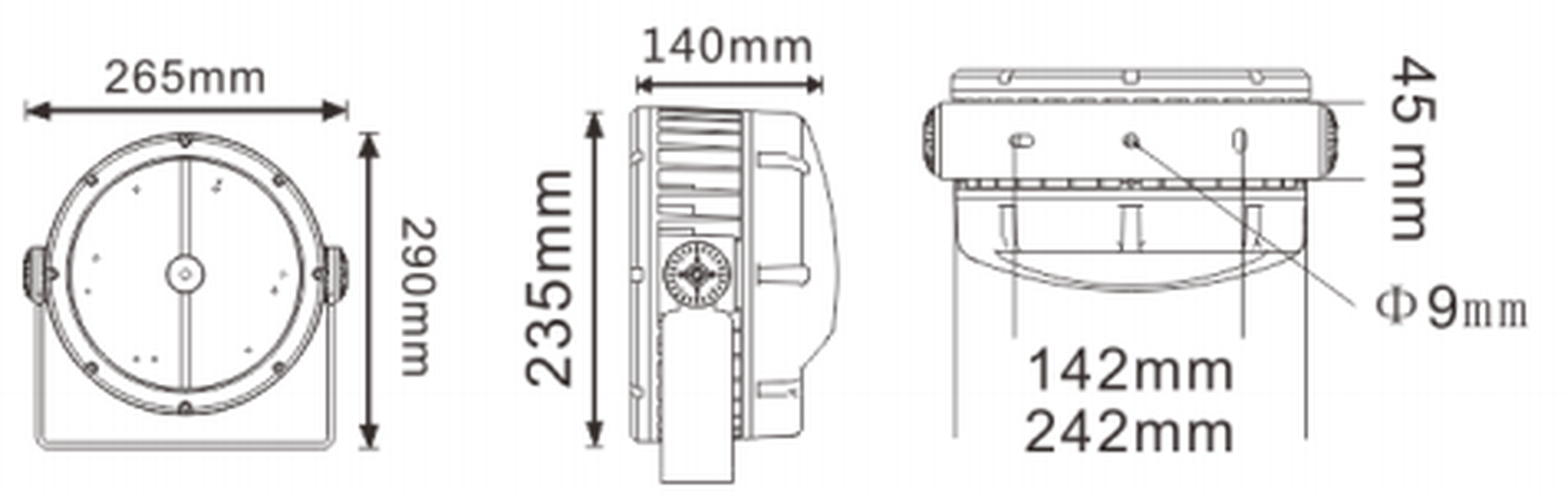

| Product type | Large Round Architectural Floodlight | Dimensions | 235 × 140 mm body; 265 × 290 mm overall |
|---|---|---|---|
| Power | 48W / 54W / 72W single color | LED board size | Ø190 mm |
| Light source type | Integrated lens / 3030 / 3535 / XPE where specified | Light color | Single Color / RGB / RGBW where specified |
| Beam angle | 10° / 15° / 30° / 45° / 60° | Control mode | Single Color / DMX512 |
| IP Rating | IP65 | Material | Die-cast aluminum with heat-dissipation fins |

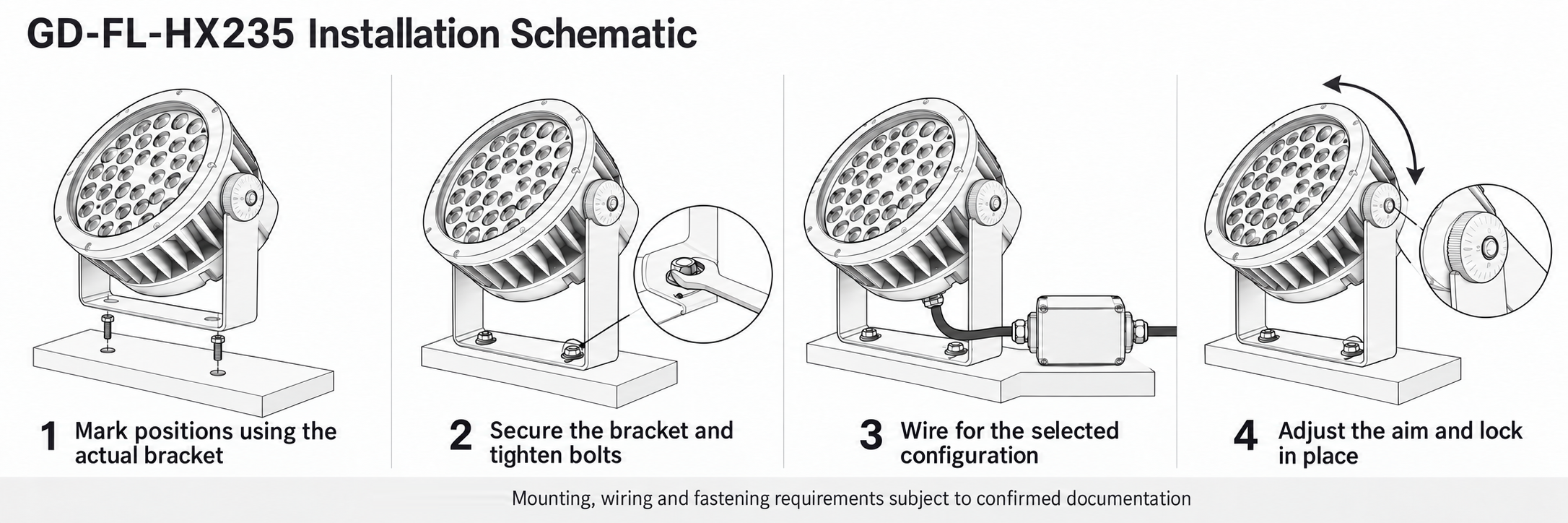

| Mounting bracket | Adjustable heavy-duty bracket | Configuration 1 | 48*1W · Integrated lens AC220V |
| Configuration 2 | 54*1W · Integrated lens AC220V | Configuration 3 | 18*4W · Integrated lens AC220V |
| Configuration 4 | 36*2W · Integrated lens AC220V |
Application Illustrations
Contact
Outline your project requirements.
Share your project requirements with GDXC. For immediate contact, use the telephone or WhatsApp details on the Contact page.
