LED Flood Light
GD-FL-HX200
Product Features
- 200 mm housing gives strong coverage for medium and large architectural surfaces.
- Wide Ø160 mm optical board supports dense arrays with smooth visual distribution.
- Large finned body improves thermal stability during extended operation.
- Deep round aperture and rigid bracket combine glare control with precise aiming.
Specifications

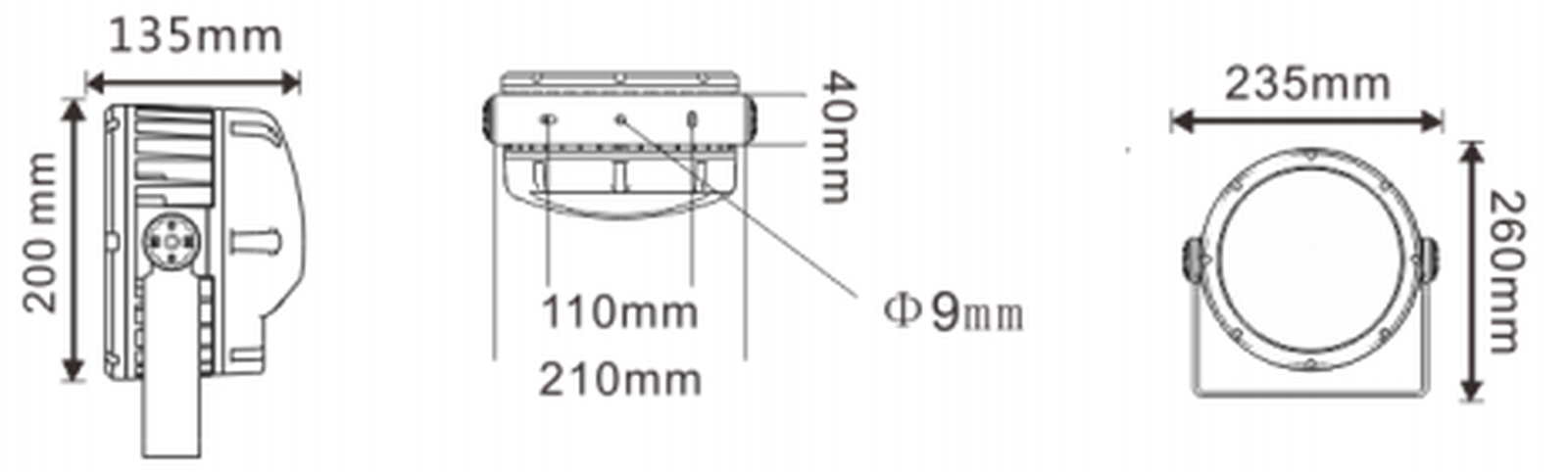

| Product type | High-Output Round Architectural Floodlight | Dimensions | 200 × 135 mm body; 235 × 260 mm overall |
|---|---|---|---|
| Power | 36W / 48W single color | LED board size | Ø160 mm |
| Light source type | Integrated lens / 3030 / 3535 / XPE where specified | Light color | Single Color / RGB / RGBW where specified |
| Beam angle | 10° / 15° / 30° / 45° / 60° | Control mode | Single Color / DMX512 |
| IP Rating | IP65 | Material | Die-cast aluminum with heat-dissipation fins |
| Mounting bracket | Adjustable heavy-duty bracket | Configuration 1 | 36*1W · Integrated lens AC220V |
| Configuration 2 | 36*1W · Integrated lens DC24V | Configuration 3 | 12*3W · Integrated lens AC220V |
| Configuration 4 | 12*3W · Integrated lens DC24V | Configuration 5 | 24*2W · Integrated lens AC220V |
Application Illustrations
