LED Flood Light
GD-FL-HX175
Product Features
- Ø175 mm housing provides balanced output for façades, trees and structural accents.
- 9-, 18- and 24-lens layouts allow brightness and beam density to be tailored to the project.
- RGB and RGBW configurations support dynamic architectural color scenes.
- Round body and adjustable side pivots give clean appearance and accurate aiming.
Specifications
| Product type | Medium Round Architectural Floodlight | Dimensions | Ø175 mm verified housing diameter |
|---|---|---|---|
| Power | 24W / 36W single color; 54W RGB; 72W RGBW | LED board size | Ø142 mm |
| Light source type | Integrated lens / 3030 / 3535 / XPE where specified | Light color | Single Color / RGB / RGBW where specified |
| Beam angle | 10° / 15° / 30° / 45° / 60° | Control mode | Single Color / DMX512 |
| IP Rating | IP65 | Material | Die-cast aluminum with heat-dissipation fins |
| Mounting bracket | Adjustable heavy-duty bracket | Configuration 1 | 9*4W · Integrated lens AC220V |
| Configuration 2 | 9*4W · Integrated lens DC24V | Configuration 3 | 24*1W · Integrated lens AC220V |
| Configuration 4 | 24*1W · Integrated lens DC24V | Configuration 5 | 18*2W · Integrated lens AC220V |
| Configuration 6 | 18*2W · Integrated lens DC24V | Configuration 7 | 18*3W RGB DC24V |
| Configuration 8 | 18*4W RGBW DC24V |

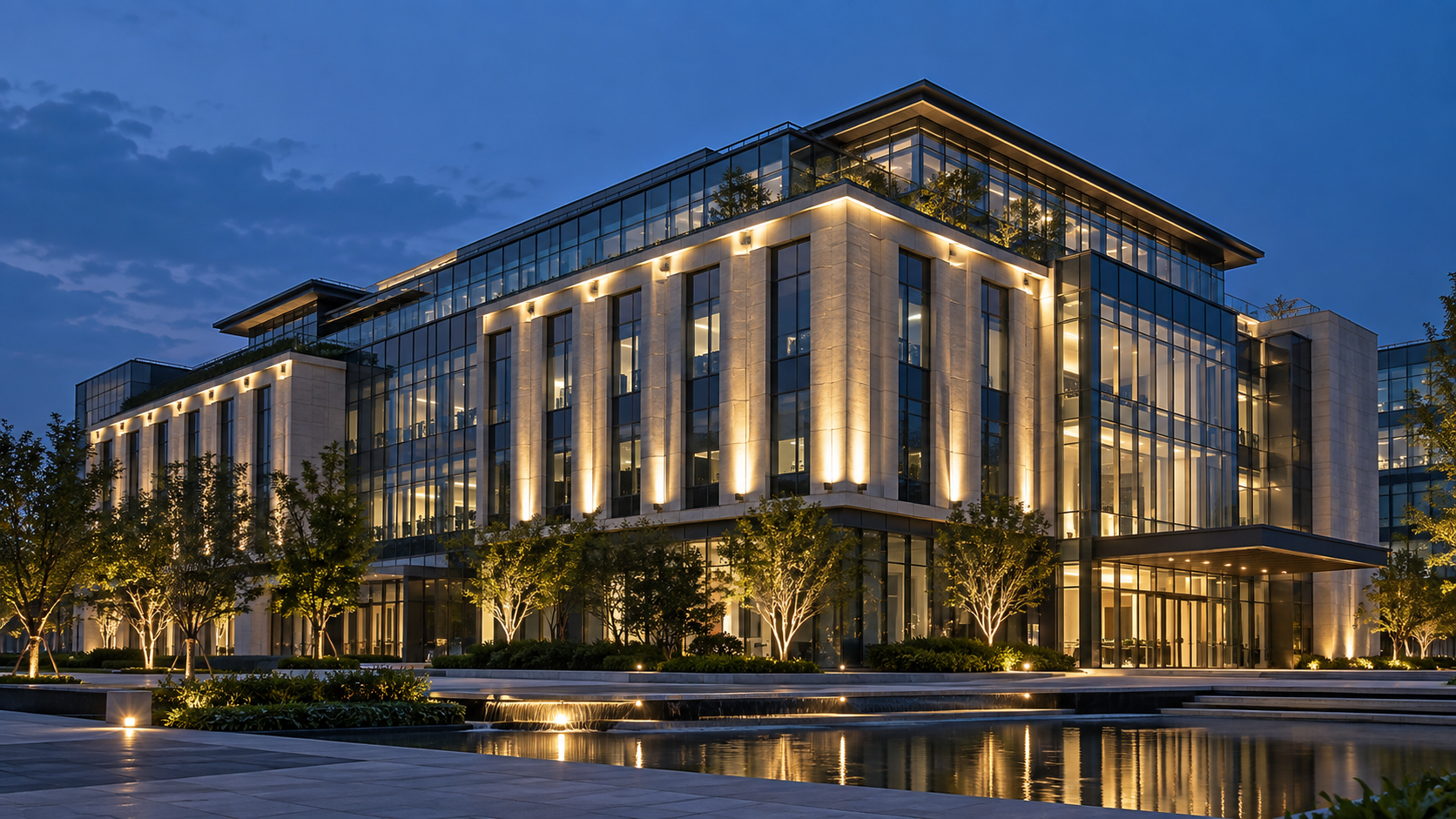

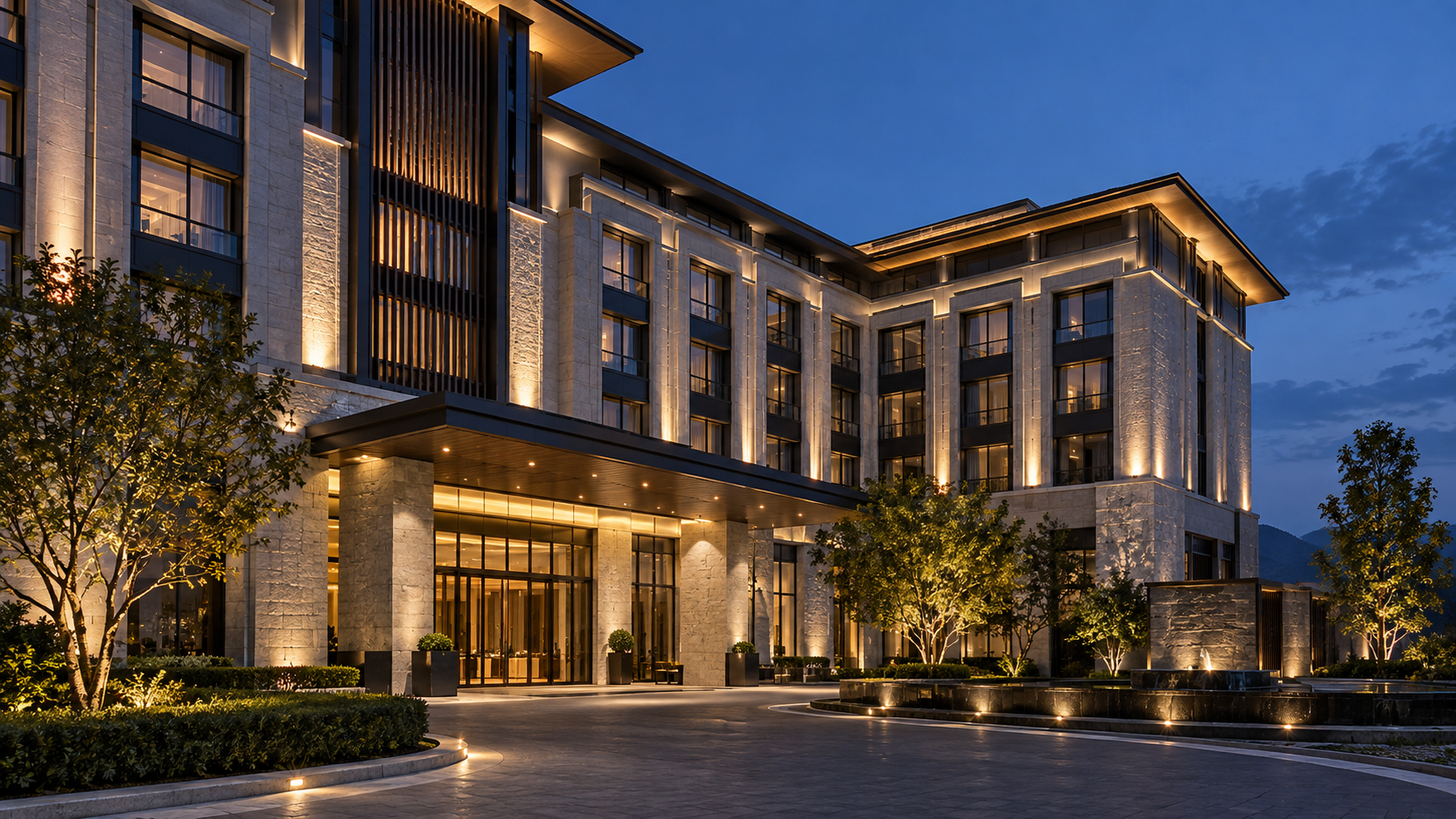

Application Illustrations
