LED Flood Light
GD-FL-HX170
Product Features
- 170 mm body provides balanced output for façades, trees and medium-distance projection.
- Large round aperture supports consistent, visually uniform illumination.
- Several LED layouts allow output and beam density to be matched to the target.
- Adjustable bracket enables accurate vertical and horizontal aiming.
Specifications

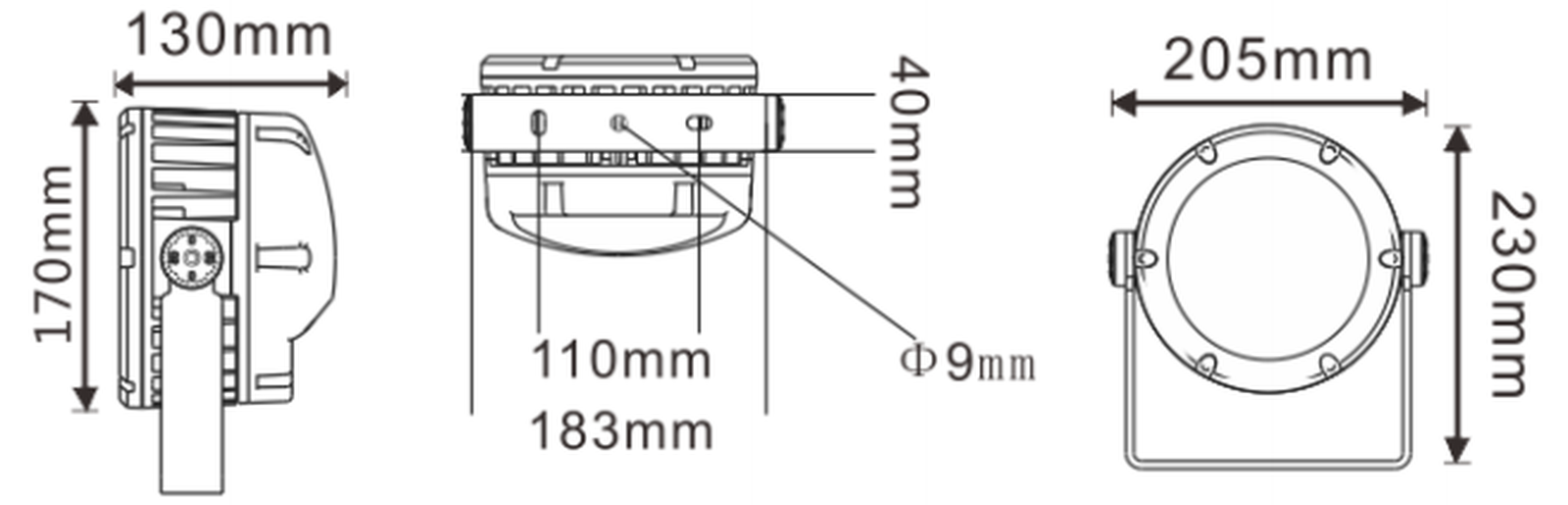

| Product type | Medium Round Architectural Floodlight | Dimensions | 170 × 130 mm body; 205 × 230 mm overall |
|---|---|---|---|
| Power | 24W / 32W / 36W single color | LED board size | Ø133 mm |
| Light source type | Integrated lens / 3030 / 3535 / XPE where specified | Light color | Single Color / RGB / RGBW where specified |
| Beam angle | 10° / 15° / 30° / 45° / 60° | Control mode | Single Color / DMX512 |
| IP Rating | IP65 | Material | Die-cast aluminum with heat-dissipation fins |
| Mounting bracket | Adjustable heavy-duty bracket | Configuration 1 | 24*1W · Integrated lens AC220V |
| Configuration 2 | 24*1W · Integrated lens DC24V | Configuration 3 | 8*4W · Integrated lens AC220V |
| Configuration 4 | 8*4W · Integrated lens DC24V | Configuration 5 | 18*2W · Integrated lens AC220V |
| Configuration 6 | 18*2W · Integrated lens DC24V |

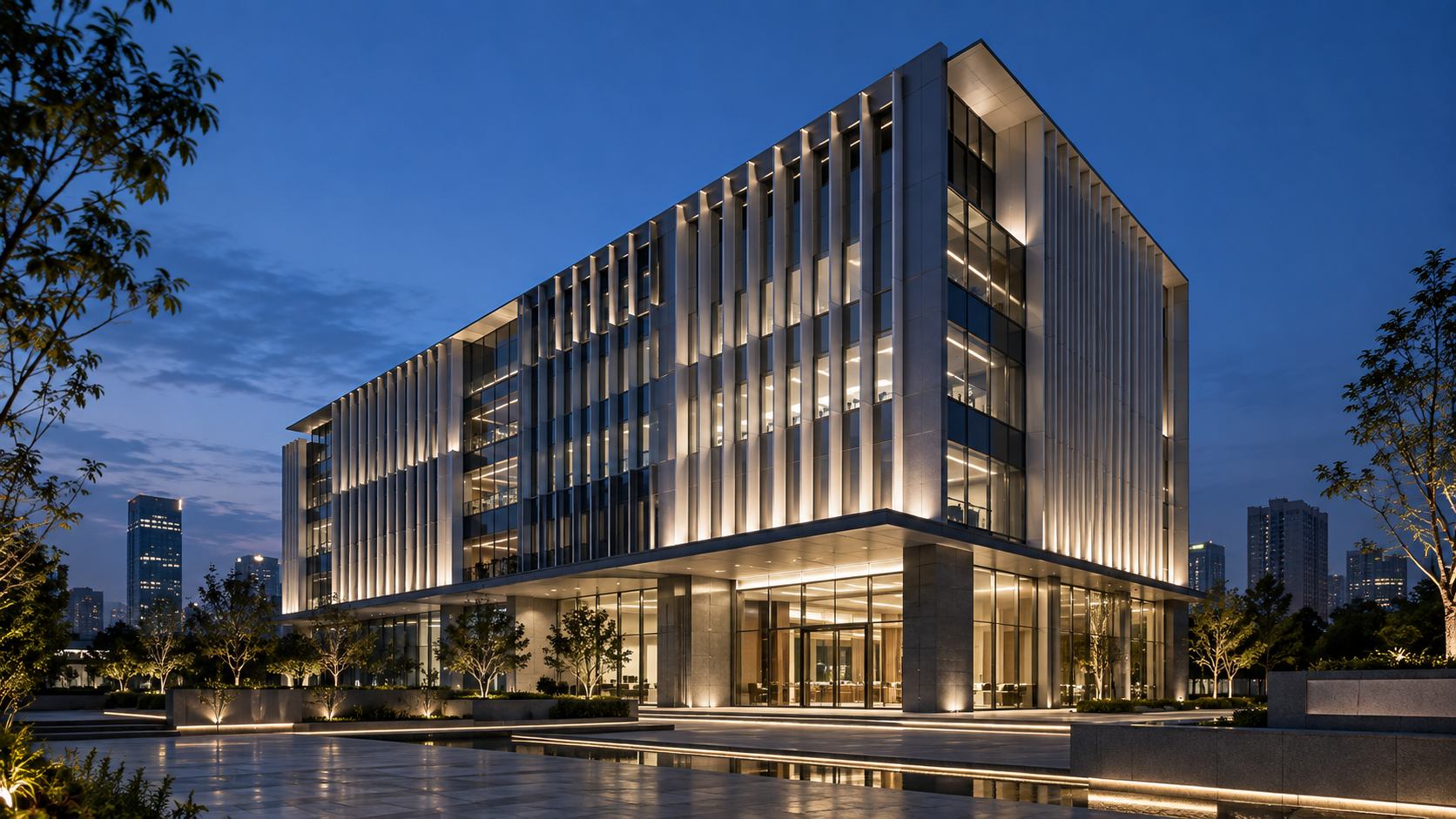

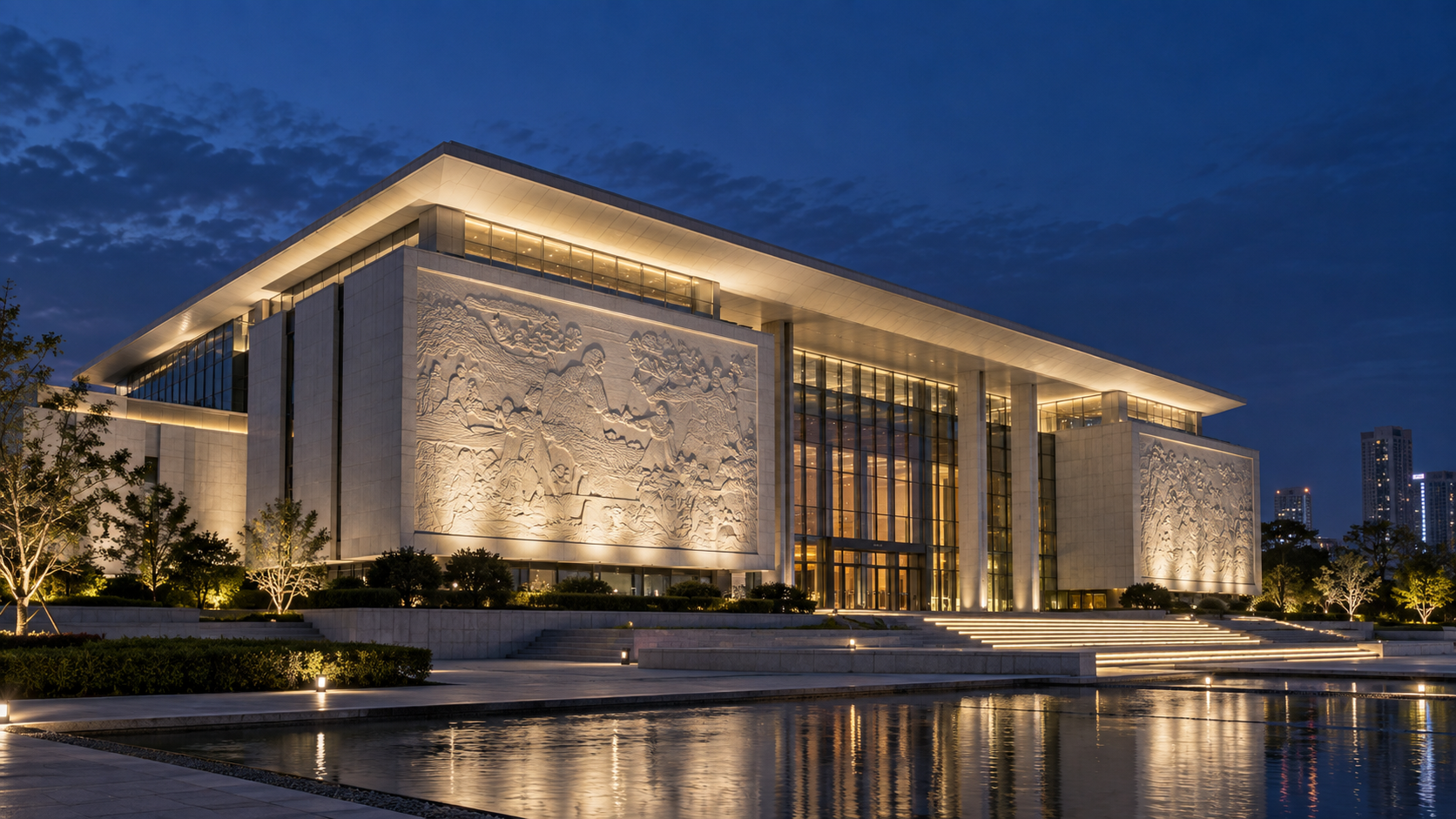

Application Illustrations
Contact
Outline your project requirements.
Share your project requirements with GDXC. For immediate contact, use the telephone or WhatsApp details on the Contact page.
