LED Flood Light
GD-FL-HX130
Product Features
- 130 mm round housing combines compact proportions with useful façade-lighting output.
- 3-lens and 9-lens layouts support concentrated or more evenly distributed light.
- Deep optical recess improves comfort by reducing direct view of the LEDs.

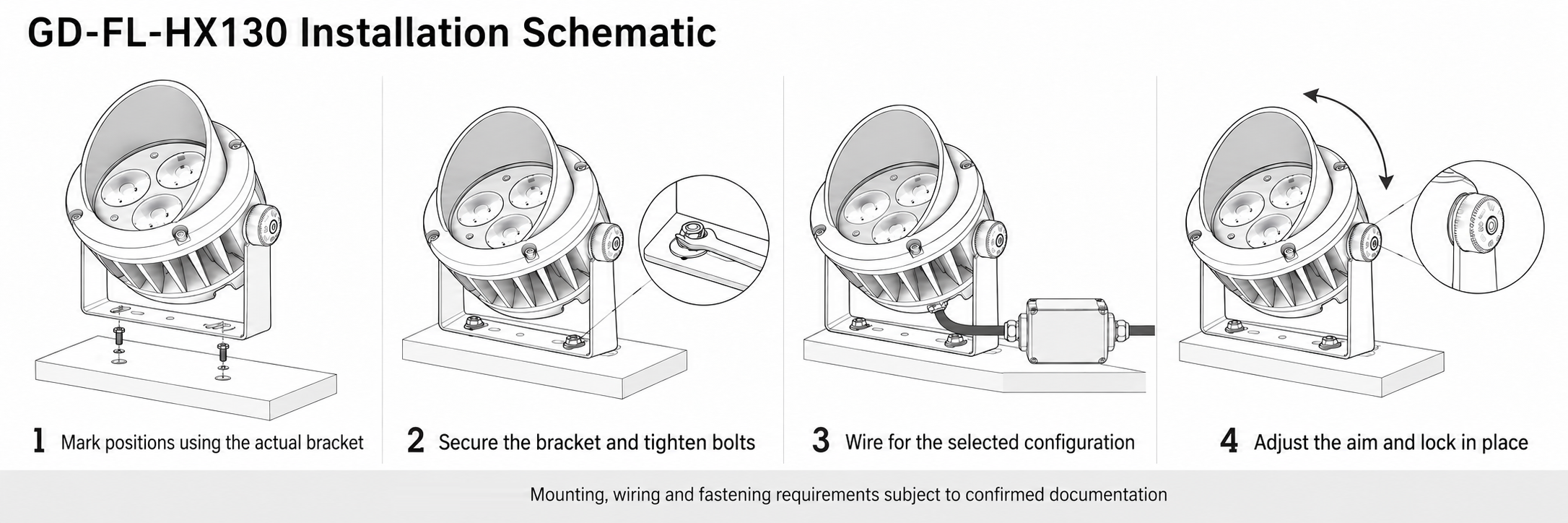

- Stable yoke gives installers a practical and repeatable aiming range.
Specifications

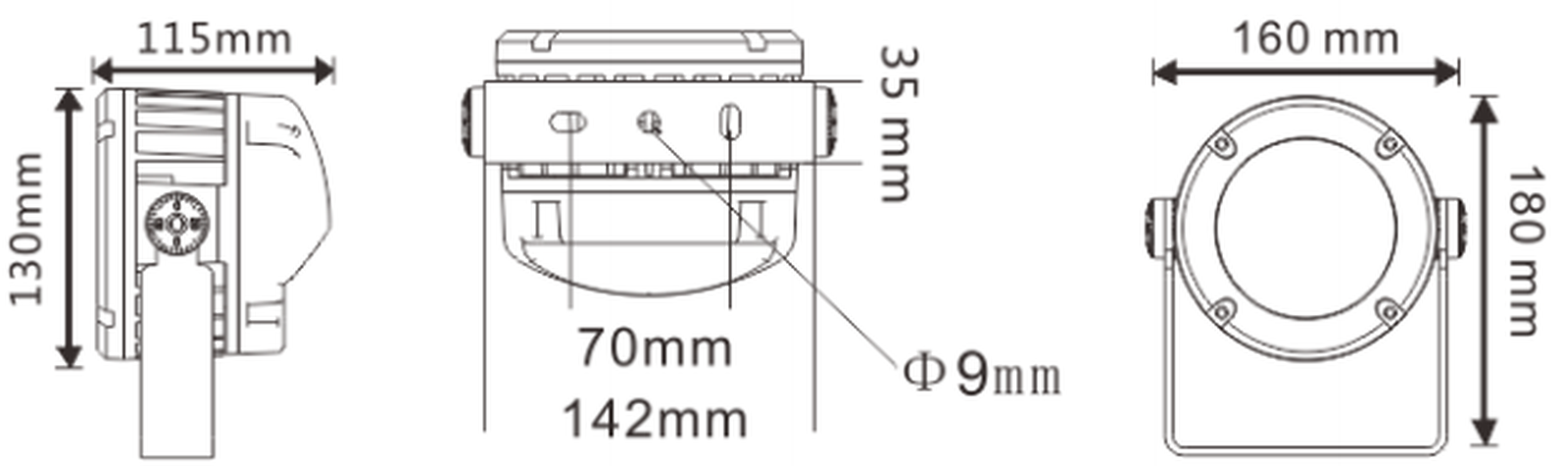

| Product type | Compact Round Architectural Floodlight | Dimensions | 130 × 115 mm body; 160 × 180 mm overall |
|---|---|---|---|
| Power | 12W / 18W single color | LED board size | Ø90 mm |
| Light source type | Integrated lens / 3030 / 3535 / XPE where specified | Light color | Single Color / RGB / RGBW where specified |
| Beam angle | 10° / 15° / 30° / 45° / 60° | Control mode | Single Color / DMX512 |
| IP Rating | IP65 | Material | Die-cast aluminum with heat-dissipation fins |
| Mounting bracket | Adjustable heavy-duty bracket | Configuration 1 | 12*1W · Integrated lens AC220V |
| Configuration 2 | 12*1W · Integrated lens DC24V | Configuration 3 | 3*4W · Integrated lens AC220V |
| Configuration 4 | 3*4W · Integrated lens DC24V | Configuration 5 | 9*2W · Integrated lens AC220V |
| Configuration 6 | 9*2W · Integrated lens DC24V |
Application Illustrations
