LED Flood Light
GD-FL-HX125
Product Features
- Ø125 mm body offers precise accent lighting in compact architectural spaces.
- Compact depth keeps the fixture discreet on façades, columns and landscape structures.
- 3-, 9- and 12-lens configurations provide flexible intensity and beam density.

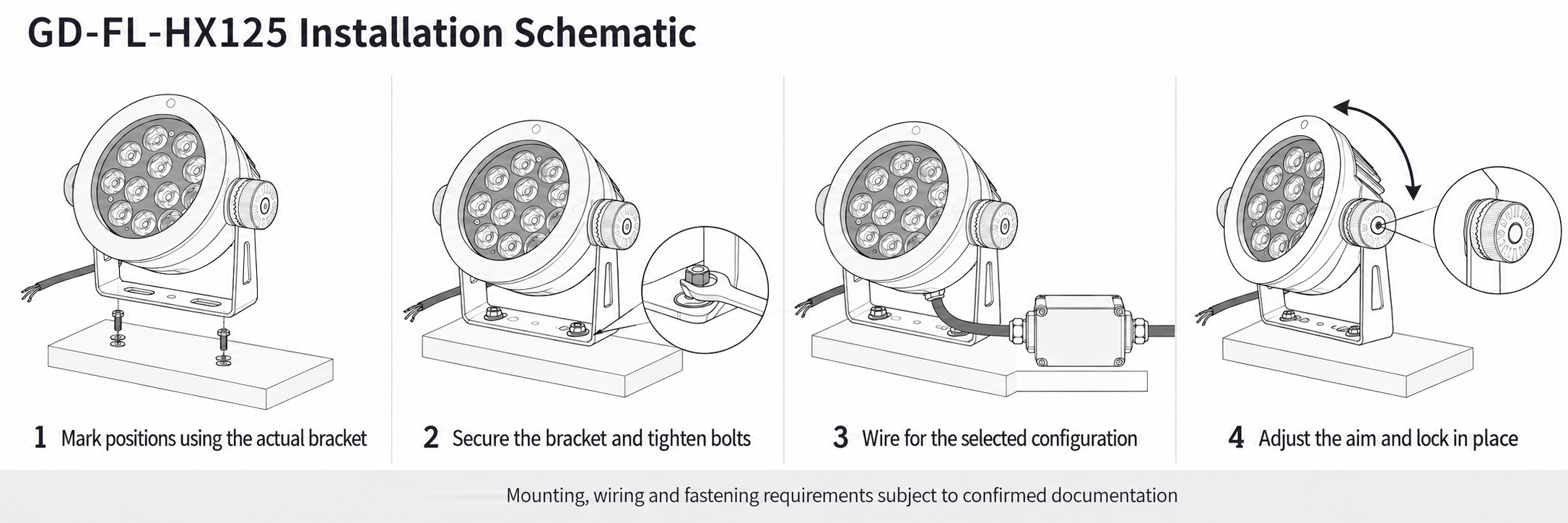

- Small adjustable bracket supports accurate aiming without a visually heavy installation.
Specifications

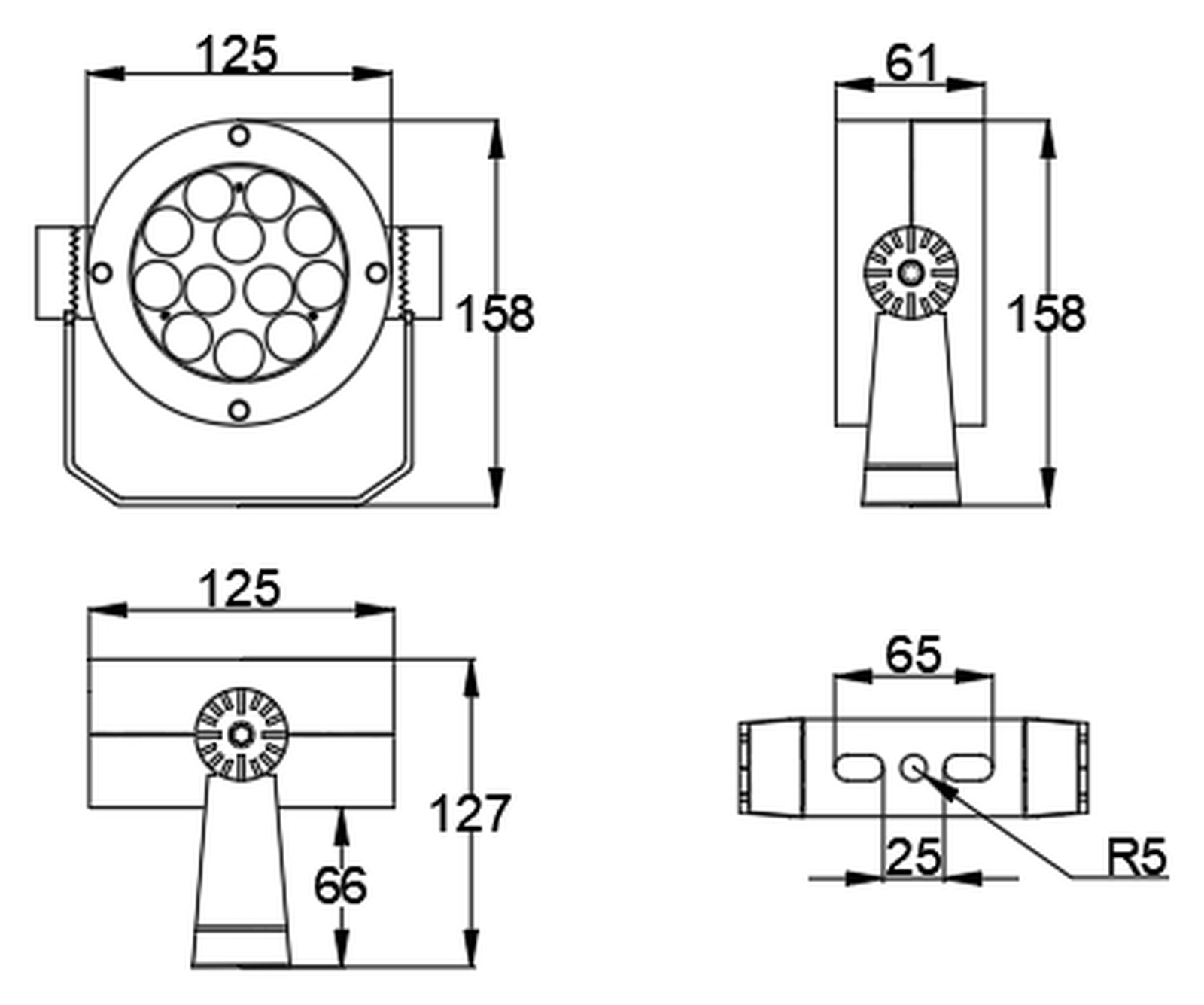

| Product type | Compact Round LED Floodlight | Dimensions | Ø125 × 61 mm body; 158 mm overall height |
|---|---|---|---|
| Power | 12W / 18W single color | LED board size | Ø90 mm |
| Light source type | Integrated lens / 3030 / 3535 / XPE where specified | Light color | Single Color / RGB / RGBW where specified |
| Beam angle | 10° / 15° / 30° / 45° / 60° | Control mode | Single Color / DMX512 |
| IP Rating | IP65 | Material | Die-cast aluminum with heat-dissipation fins |
| Mounting bracket | Adjustable heavy-duty bracket | Configuration 1 | 3*4W · Integrated lens AC220V |
| Configuration 2 | 3*4W · Integrated lens DC24V | Configuration 3 | 12*1W · Integrated lens AC220V |
| Configuration 4 | 12*1W · Integrated lens DC24V | Configuration 5 | 9*2W · Integrated lens AC220V |
| Configuration 6 | 9*2W · Integrated lens DC24V |

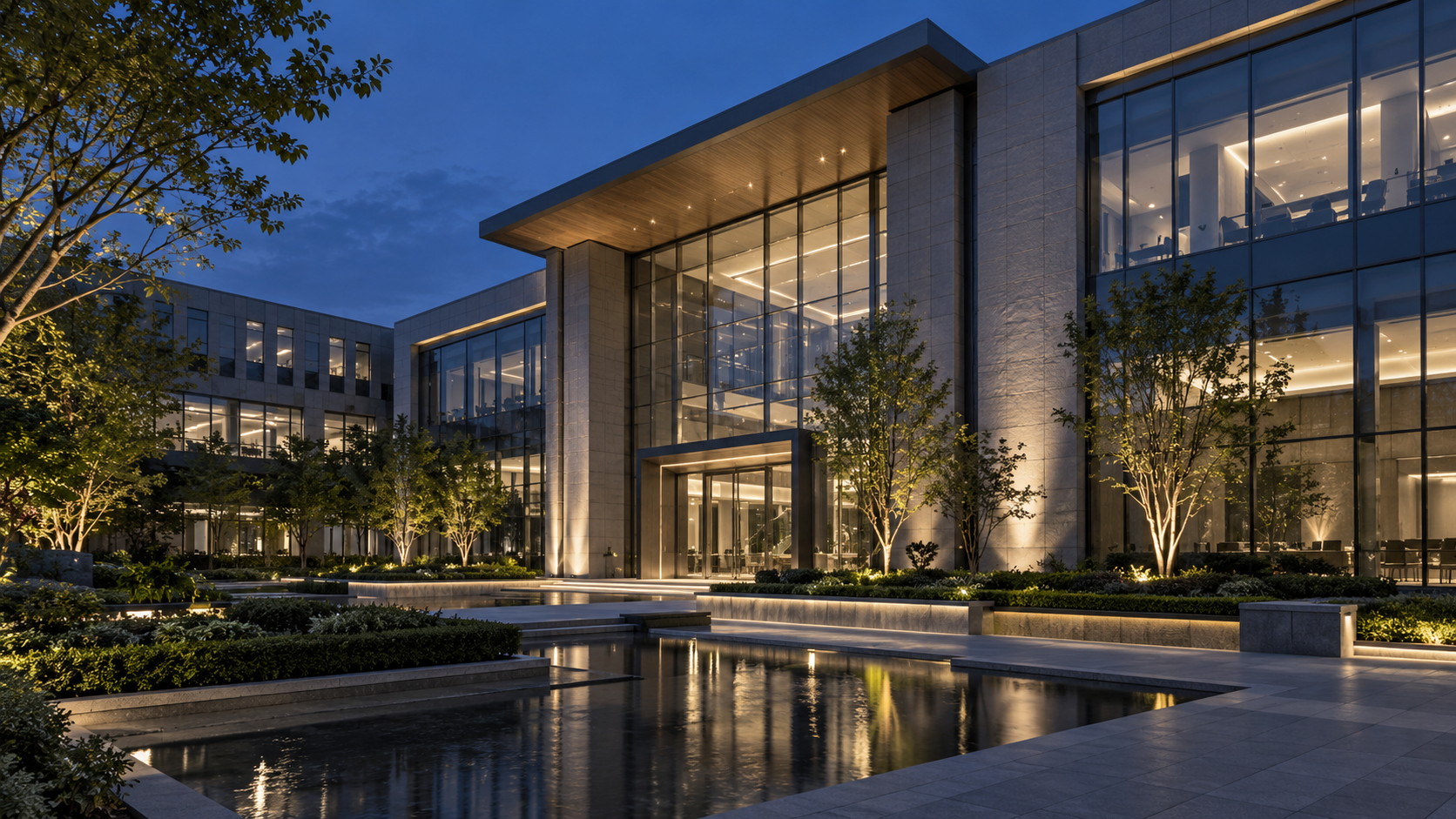

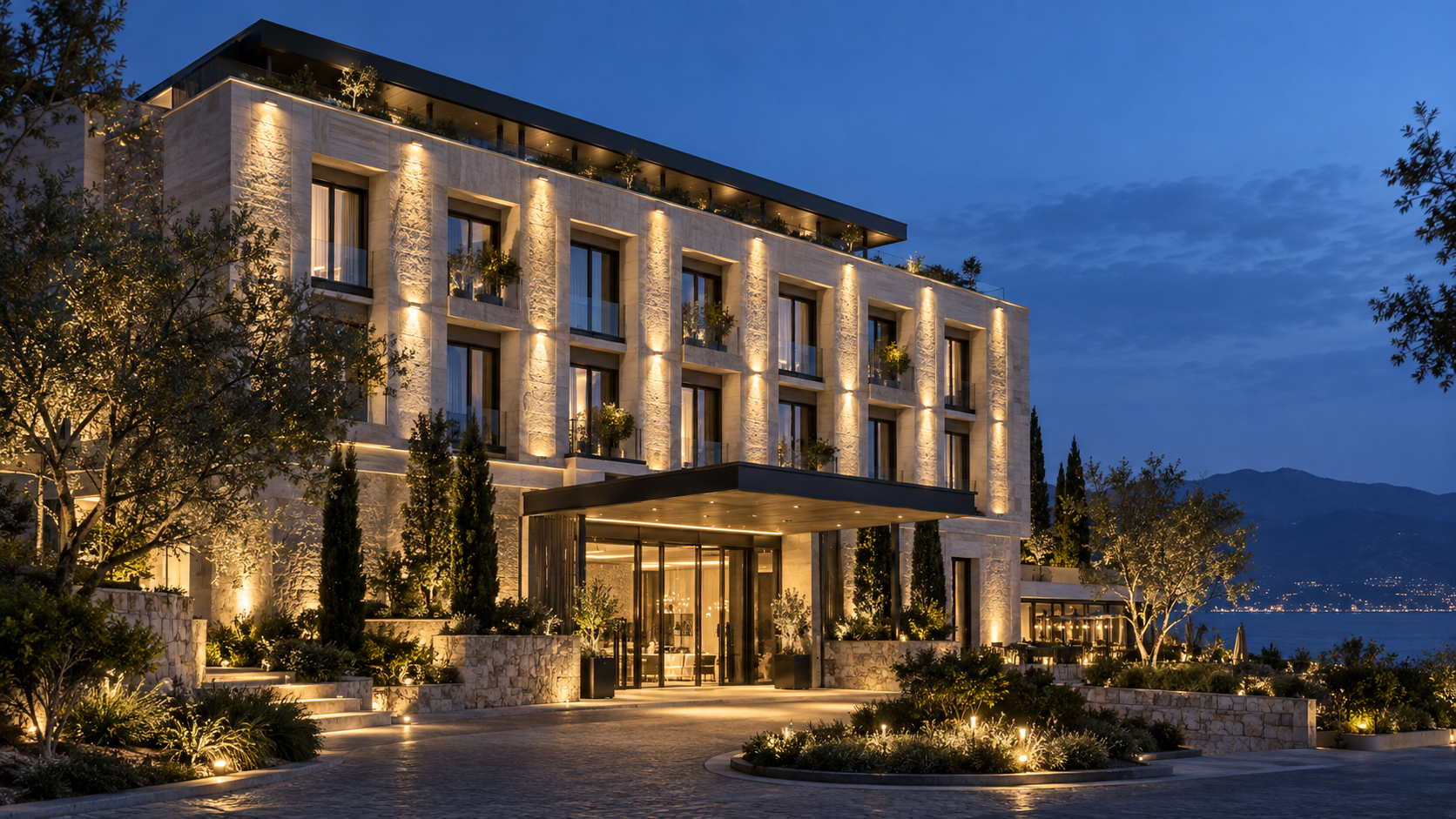

Application Illustrations
