LED Flood Light
GD-FL-HX110
Product Features
- Compact round body suits columns, landscape details and concealed installation points.
- Low-power lens options deliver controlled accent light with minimal fixture presence.
- Symmetrical circular form blends easily with both classical and modern architecture.
- Adjustable bracket allows precise beam placement on small targets.
Specifications

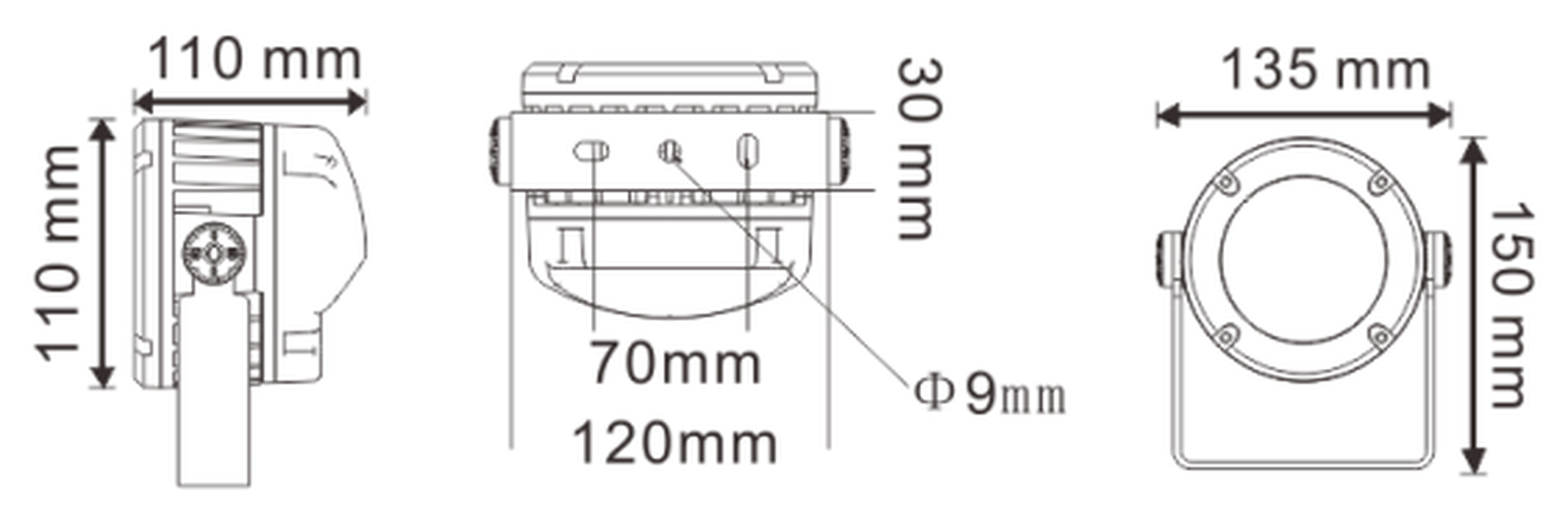

| Product type | Compact Round Architectural Floodlight | Dimensions | 110 × 110 mm body; 135 × 150 mm overall |
|---|---|---|---|
| Power | 6W / 9W / 12W single color | LED board size | Ø65 mm |
| Light source type | Integrated lens / 3030 / 3535 / XPE where specified | Light color | Single Color / RGB / RGBW where specified |
| Beam angle | 10° / 15° / 30° / 45° / 60° | Control mode | Single Color / DMX512 |
| IP Rating | IP65 | Material | Die-cast aluminum with heat-dissipation fins |
| Mounting bracket | Adjustable heavy-duty bracket | Configuration 1 | 6*1W · Integrated lens AC220V |
| Configuration 2 | 6*1W · Integrated lens DC24V | Configuration 3 | 3*3W · Integrated lens AC220V |
| Configuration 4 | 3*3W · Integrated lens DC24V | Configuration 5 | 6*2W · Integrated lens AC220V |
| Configuration 6 | 6*2W · Integrated lens DC24V |
Application Illustrations
