LED Flood Light
GD-FL-BZ505
Product Features
- 505 mm single head delivers powerful coverage for tall façades and longer projection distances.
- Large optical board distributes high output evenly across the target surface.
- Concealed breathing valve helps manage pressure and condensation during outdoor temperature changes.
- Wide mounting bracket stabilizes precise aiming for demanding exterior installations.
Specifications

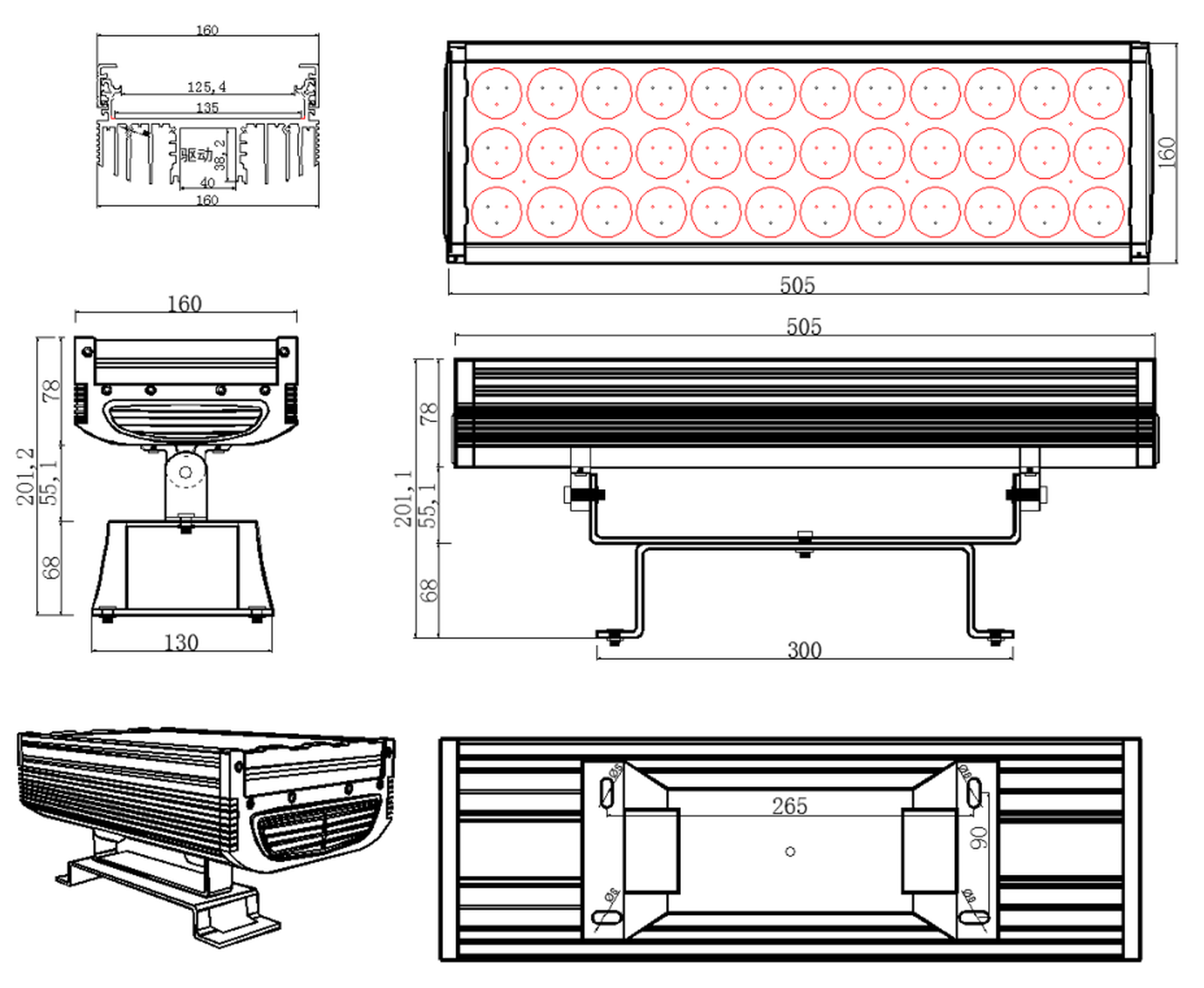

| Product type | Small Benz High-Output Architectural Floodlight | Dimensions | 505 × 160 × 201.2 mm; 300 mm mounting width |
|---|---|---|---|
| Power | 144W / 192W single color; 216W RGB; 288W RGBW | LED board size | 127 × 478 mm |
| Light source type | Integrated lens / 3030 / 3535 / XPE where specified | Light color | Single Color / RGB / RGBW where specified |
| Beam angle | 10° / 15° / 30° / 45° / 60° | Control mode | Single Color / DMX512 |
| IP Rating | IP65 | Material | Die-cast aluminum with heat-dissipation fins |

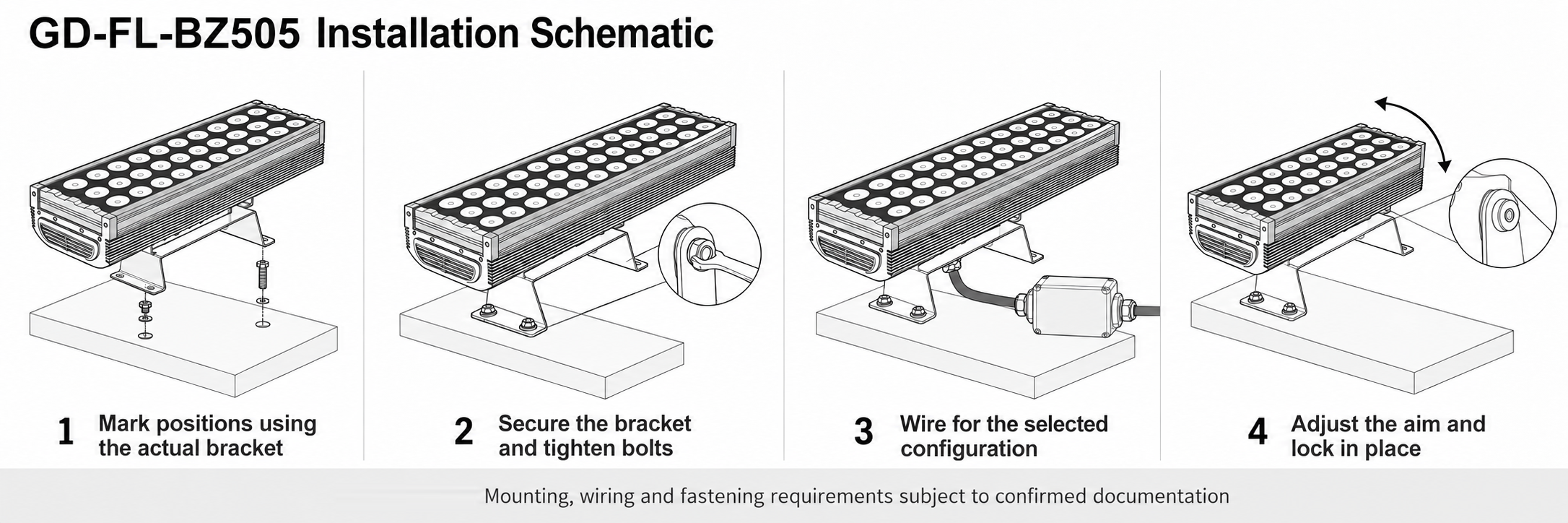

| Mounting bracket | Adjustable heavy-duty bracket | Configuration 1 | 36*4W · Integrated lens AC220V |
| Configuration 2 | 96*2W · Integrated lens AC220V | Configuration 3 | 72*3W RGB DC24V |
| Configuration 4 | 72*4W RGBW DC24V |
Application Illustrations
