LED Flood Light
GD-FL-BZ505-T
Product Features
- Three independently oriented heads create extensive coverage for monumental façades and high-rise structures.
- Up to 576W nominal output provides powerful long-distance illumination from one coordinated assembly.
- Multi-head aiming builds layered vertical distribution with better control than a single oversized beam.
- Heavy-duty frame and separate heat-sink bodies support demanding continuous outdoor use.
Specifications

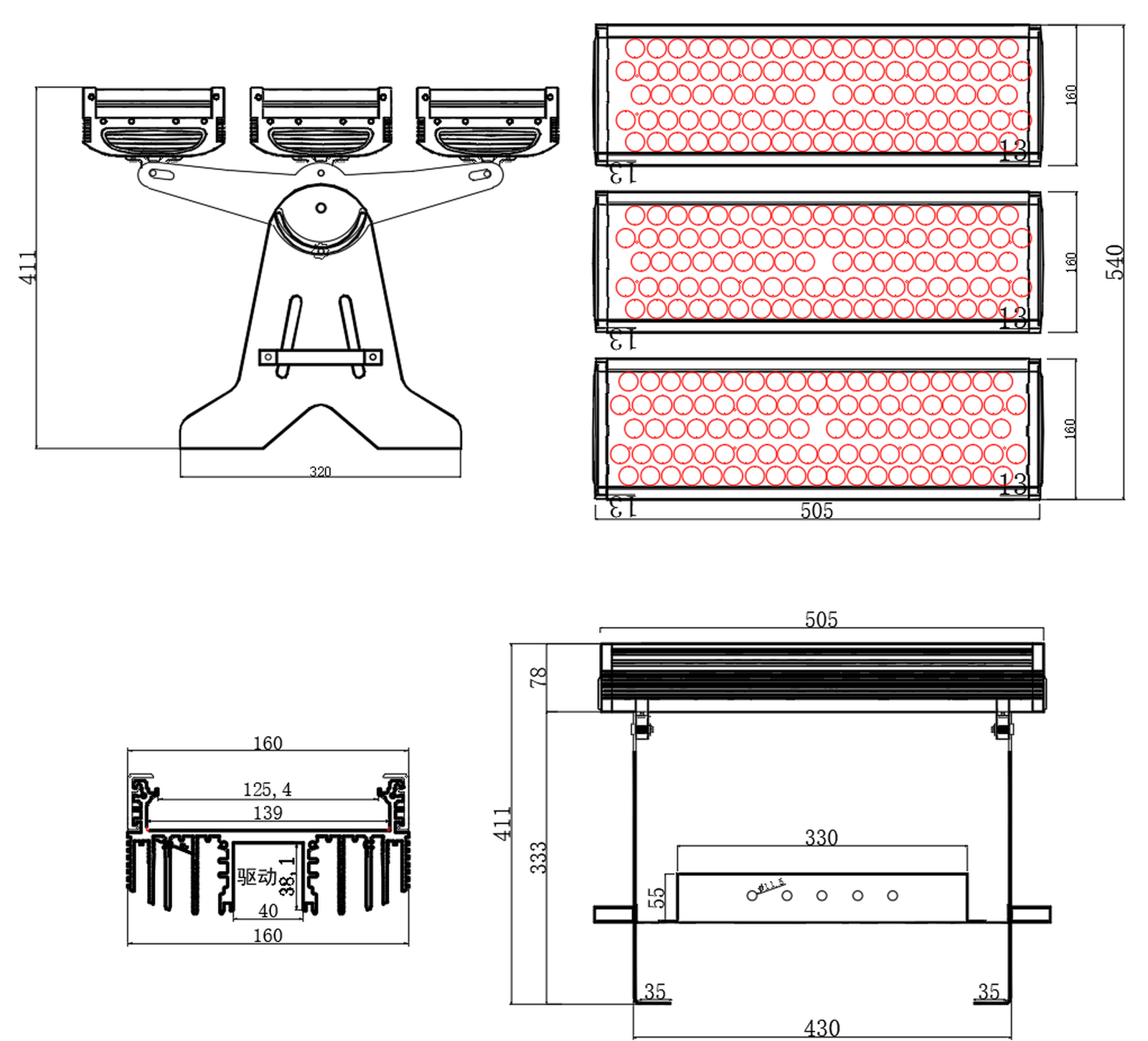

| Product type | Small Benz Triple-Head Architectural Floodlight | Dimensions | 3 × 505 × 160 mm heads; 540 × 411 mm overall |
|---|---|---|---|
| Power | 432W / 576W single color | LED board size | 3 × 127 × 478 mm |
| Light source type | Integrated lens / 3030 / 3535 / XPE where specified | Light color | Single Color / RGB / RGBW where specified |
| Beam angle | 10° / 15° / 30° / 45° / 60° | Control mode | Single Color / DMX512 |
| IP Rating | IP65 | Material | Die-cast aluminum with heat-dissipation fins |
| Mounting bracket | Adjustable heavy-duty bracket | Configuration 1 | 108*4W · Integrated lens AC220V |
| Configuration 2 | 288*2W · Integrated lens AC220V |
Application Illustrations
Contact
Outline your project requirements.
Share your project requirements with GDXC. For immediate contact, use the telephone or WhatsApp details on the Contact page.
