LED Flood Light
GD-FL-BZ505-D
Product Features
- Two independently aimable heads provide strong vertical reach and flexible two-zone coverage.
- High-output platform suits towers, tall façades and major architectural features.
- Separate finned housings distribute thermal load for stable sustained operation.
- Layered aiming improves coverage without relying on uncontrolled spill light.
Specifications

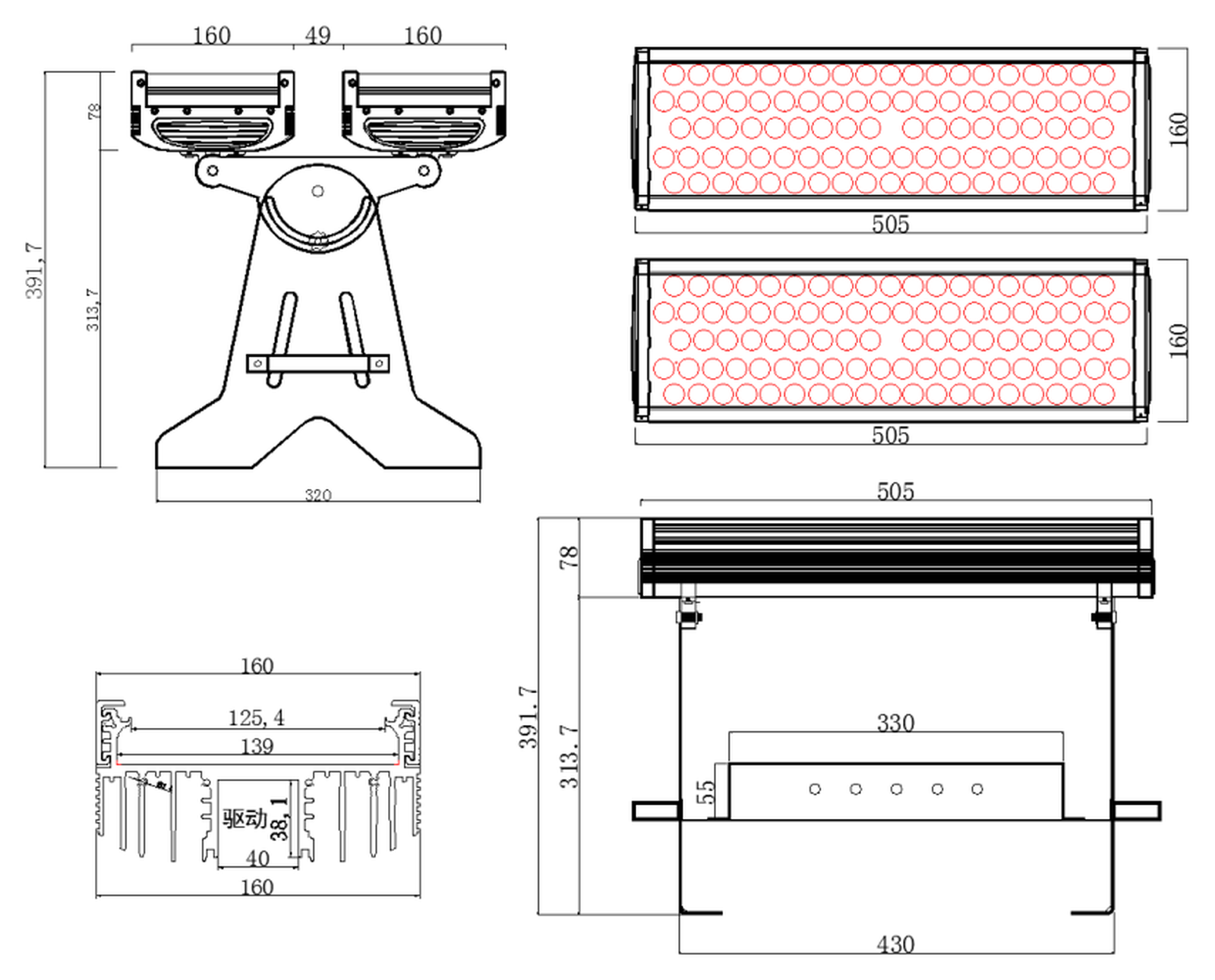

| Product type | Small Benz Dual-Head Architectural Floodlight | Dimensions | 2 × 505 × 160 mm heads; 430 × 391.7 mm overall |
|---|---|---|---|
| Power | 288W / 384W single color; 432W RGB; 576W RGBW | LED board size | 2 × 127 × 478 mm |
| Light source type | Integrated lens / 3030 / 3535 / XPE where specified | Light color | Single Color / RGB / RGBW where specified |
| Beam angle | 10° / 15° / 30° / 45° / 60° | Control mode | Single Color / DMX512 |
| IP Rating | IP65 | Material | Die-cast aluminum with heat-dissipation fins |
| Mounting bracket | Adjustable heavy-duty bracket | Configuration 1 | 72*4W · Integrated lens AC220V |
| Configuration 2 | 192*2W · Integrated lens AC220V | Configuration 3 | 144*3W RGB DC24V |
| Configuration 4 | 144*4W RGBW DC24V |
Application Illustrations
Contact
Outline your project requirements.
Share your project requirements with GDXC. For immediate contact, use the telephone or WhatsApp details on the Contact page.
