LED Flood Light
GD-FL-BZ450
Product Features
- Wide 450 mm luminous face efficiently covers broad façade zones and large landscape elements.
- Three-board construction scales output while keeping a low, linear profile.
- Long finned body provides generous heat-dissipation area for stable high-power operation.
- Recessed optics reduce direct glare and keep the projected light visually controlled.
Specifications

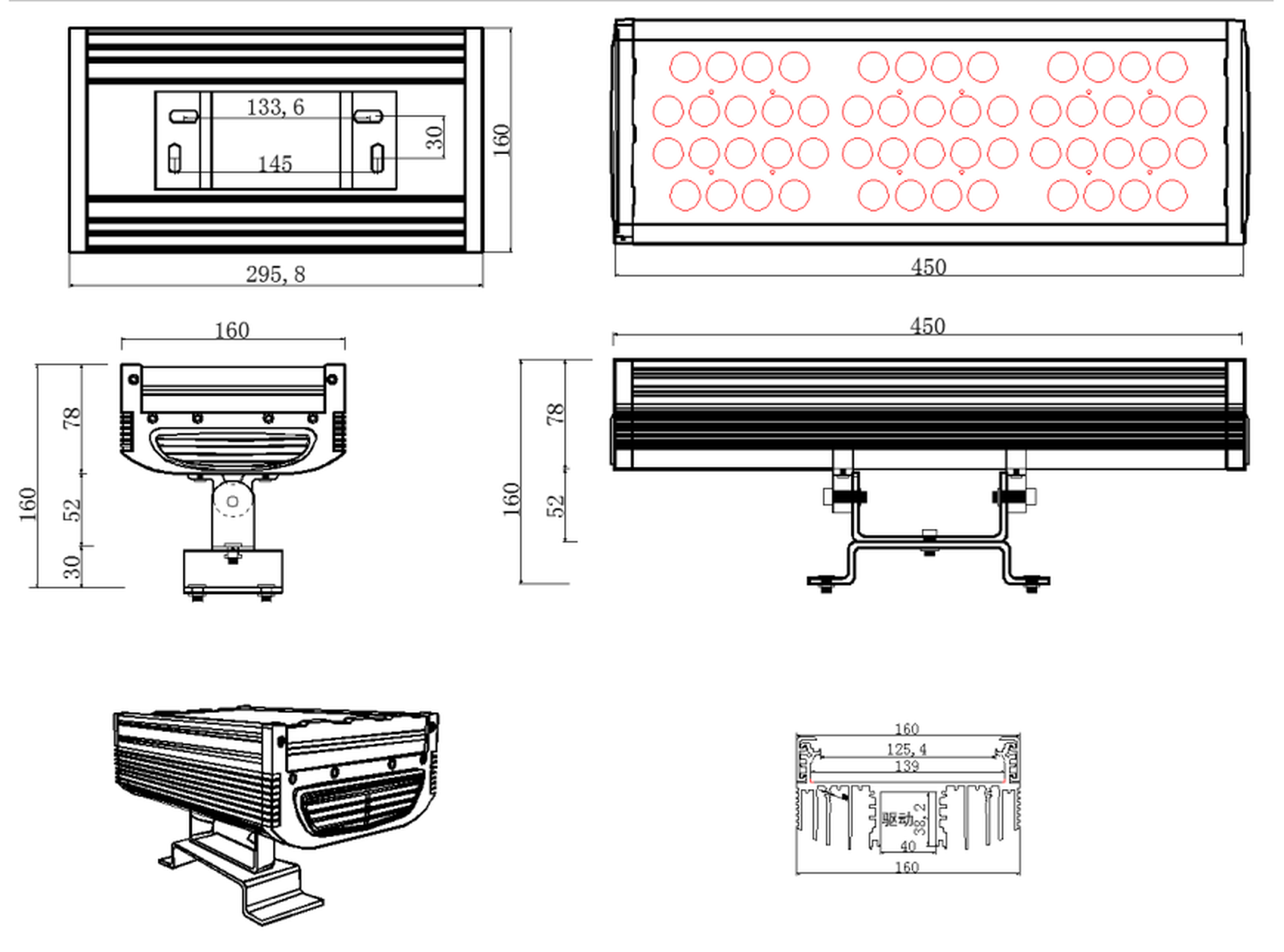

| Product type | Small Benz Wide Architectural Floodlight | Dimensions | 450 × 160 × 160 mm; 171.5 mm mounting width |
|---|---|---|---|
| Power | 108W / 144W single color; 162W RGB; 216W RGBW | LED board size | 127 × 405 mm, three-board layout |
| Light source type | Integrated lens / 3030 / 3535 / XPE where specified | Light color | Single Color / RGB / RGBW where specified |
| Beam angle | 10° / 15° / 30° / 45° / 60° | Control mode | Single Color / DMX512 |
| IP Rating | IP65 | Material | Die-cast aluminum with heat-dissipation fins |
| Mounting bracket | Adjustable heavy-duty bracket | Configuration 1 | 27*4W · Integrated lens AC220V |
| Configuration 2 | 54*2W · Integrated lens AC220V | Configuration 3 | 72*2W · Integrated lens AC220V |
| Configuration 4 | 54*3W RGB DC24V | Configuration 5 | 54*4W RGBW DC24V |

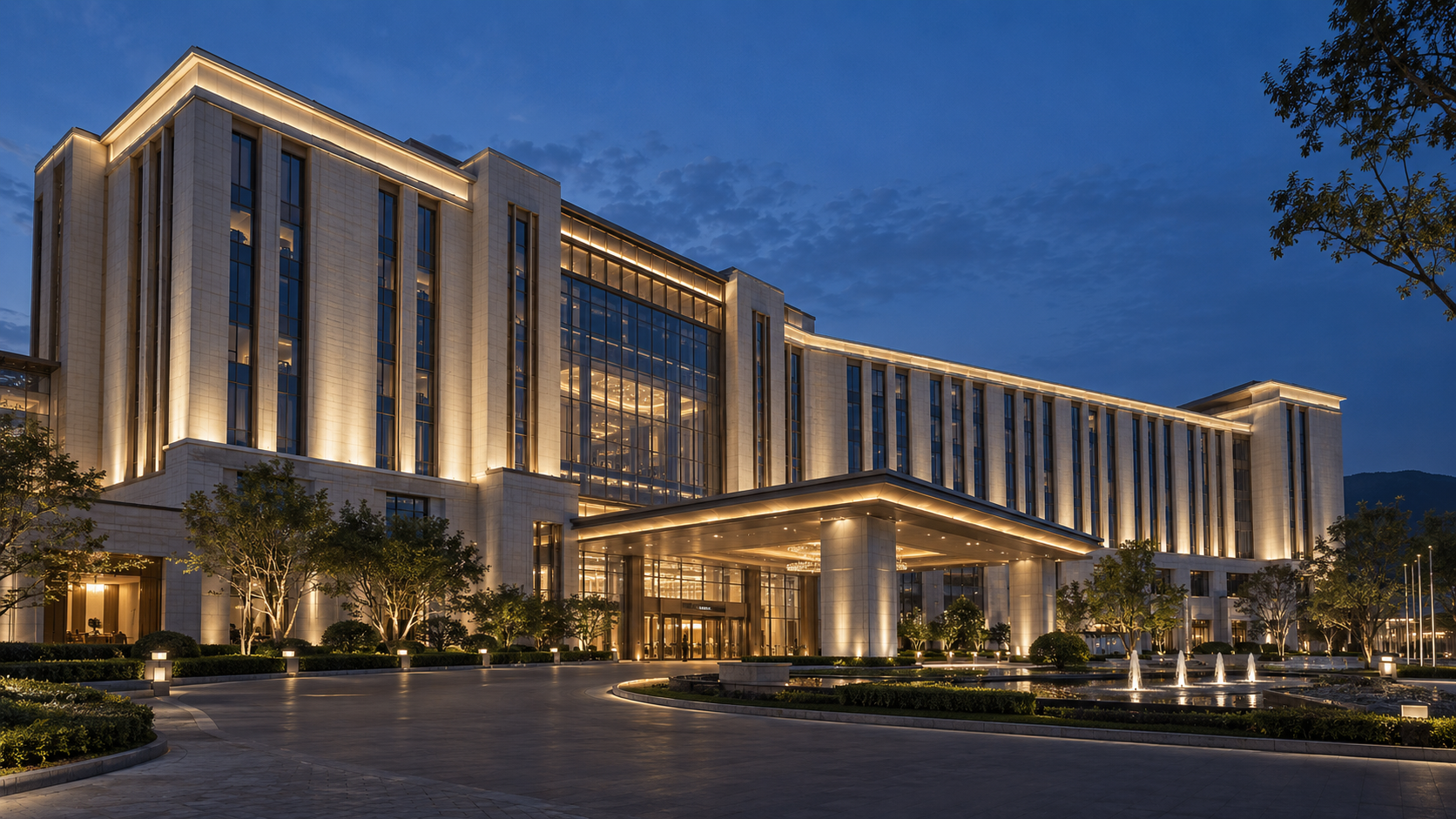

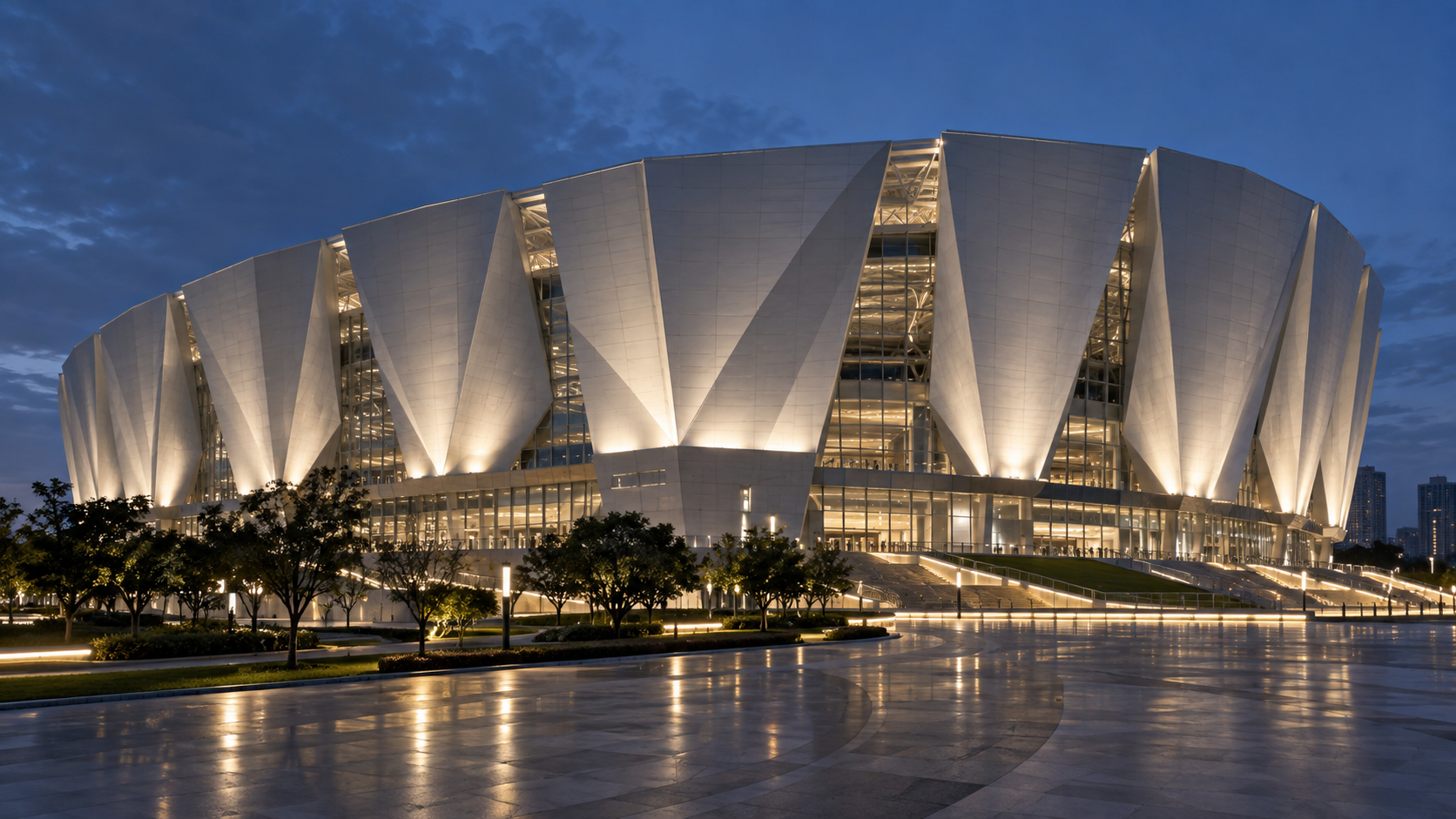

Application Illustrations
