LED Flood Light
GD-FL-BZ301
Product Features
- 301 mm linear format produces wider façade coverage while retaining precise projector control.
- Two-board optical layout supports dense LED configurations in one coordinated housing.
- Large finned extrusion spreads heat over a wider area for stable sustained output.
- Deep optical recess controls glare and stray light for cleaner architectural illumination.
Specifications

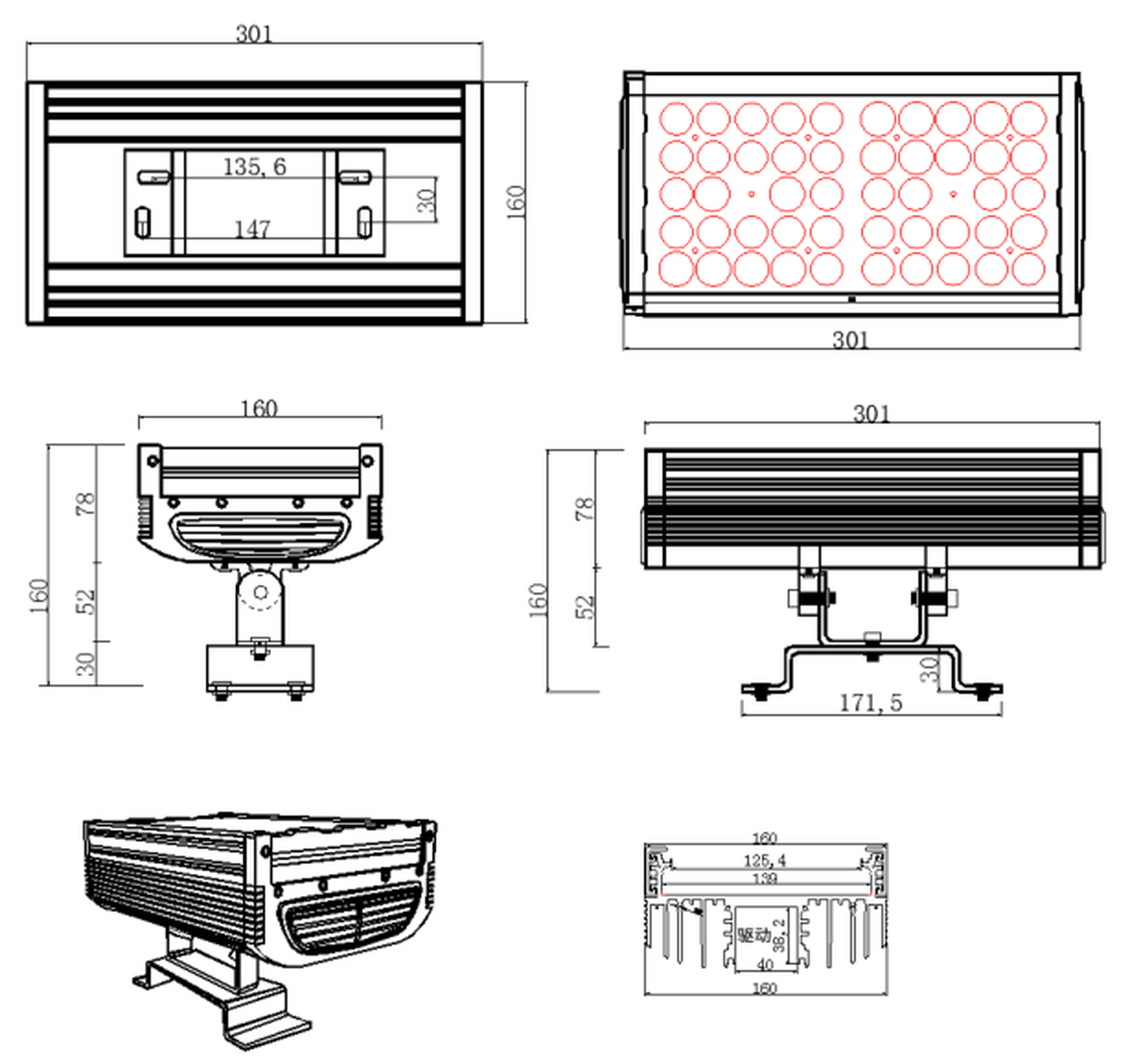

| Product type | Small Benz Linear Architectural Floodlight | Dimensions | 301 × 160 × 160 mm; 171.5 mm mounting width |
|---|---|---|---|
| Power | 72W / 96W single color; 108W RGB; 144W RGBW | LED board size | 127 × 270 mm, two-board layout |
| Light source type | Integrated lens / 3030 / 3535 / XPE where specified | Light color | Single Color / RGB / RGBW where specified |
| Beam angle | 10° / 15° / 30° / 45° / 60° | Control mode | Single Color / DMX512 |
| IP Rating | IP65 | Material | Die-cast aluminum with heat-dissipation fins |

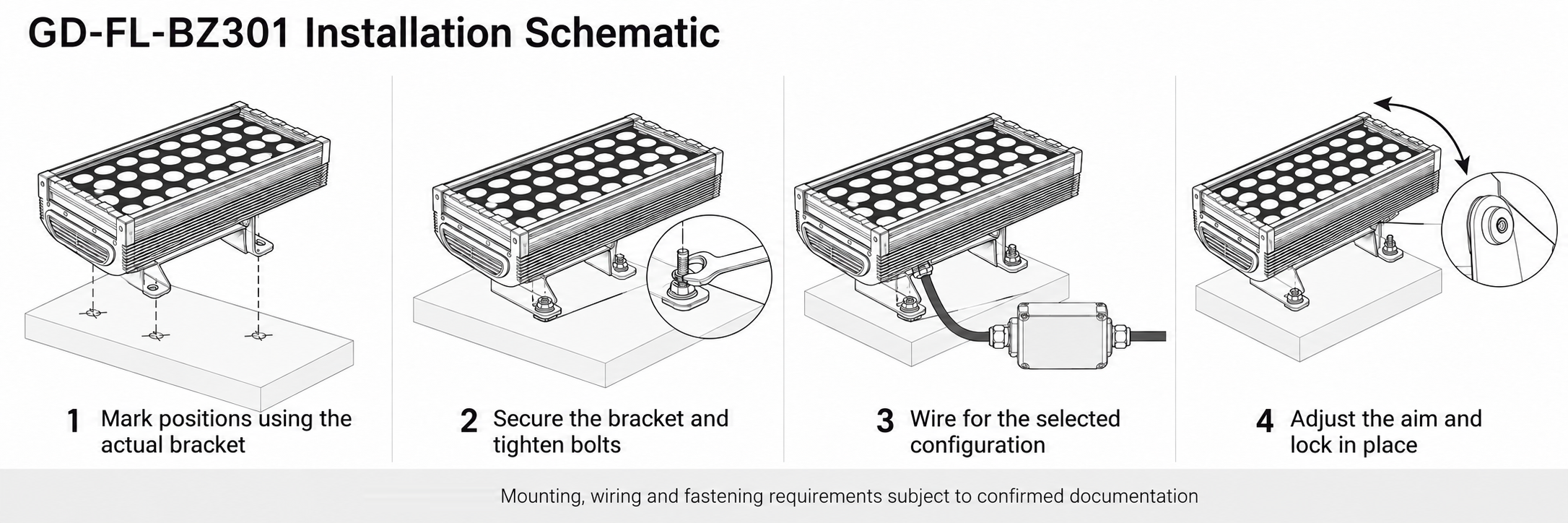

| Mounting bracket | Adjustable heavy-duty bracket | Configuration 1 | 18*4W · Integrated lens AC220V |
| Configuration 2 | 36*2W · Integrated lens AC220V | Configuration 3 | 48*2W · Integrated lens AC220V |
| Configuration 4 | 36*3W RGB DC24V | Configuration 5 | 36*4W RGBW DC24V |
Application Illustrations
