LED Flood Light
GD-FL-BZ165
Product Features
- Compact 165 mm housing delivers high output where installation space is limited.
- Stepped front glass sheds water and dust more readily, helping the light-emitting surface stay clean.
- Concealed pressure-equalization valve helps limit internal condensation during temperature changes.
- Deep anti-glare aperture reduces direct brightness in pedestrian-facing areas.
Specifications

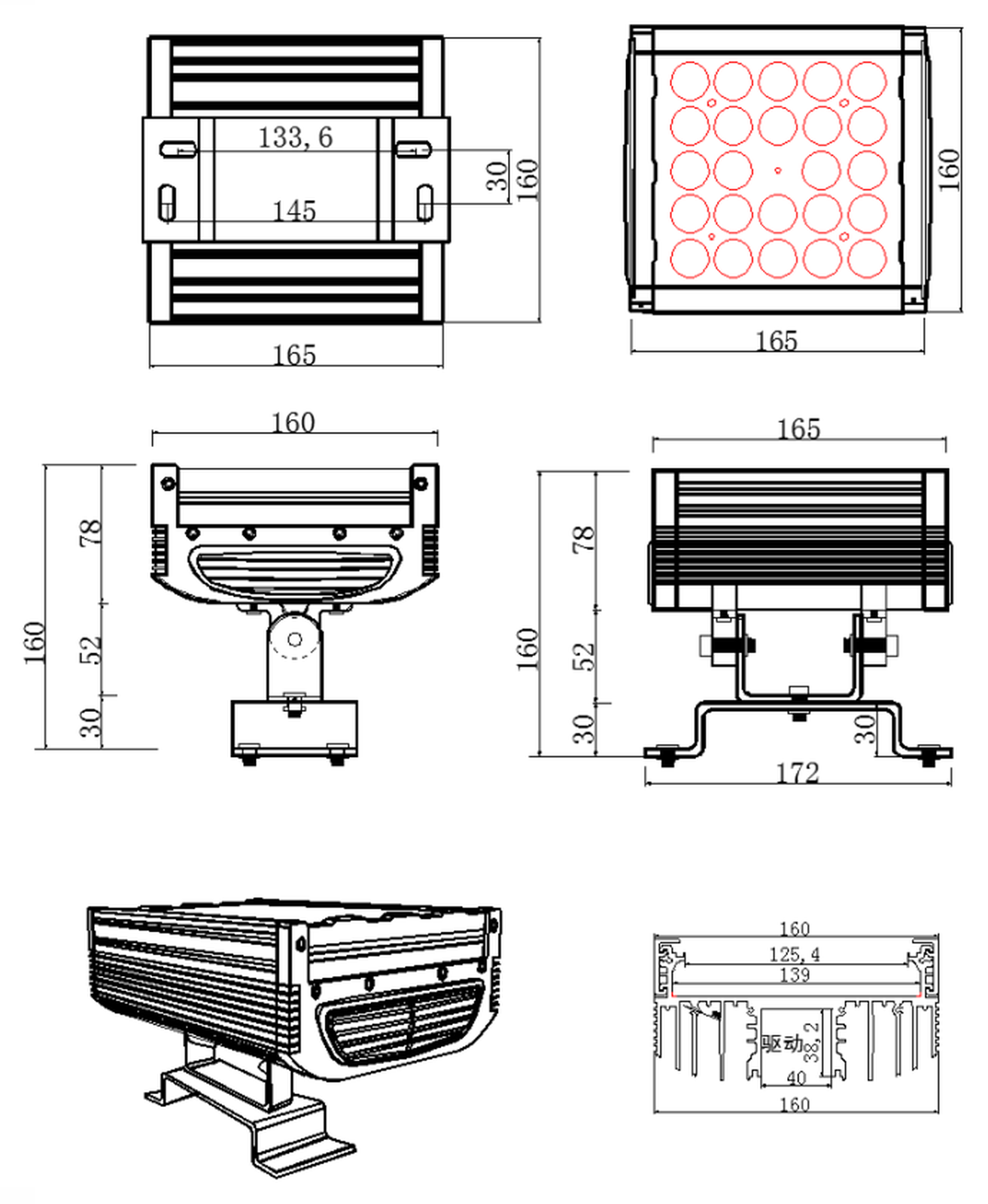

| Product type | Small Benz Architectural LED Floodlight | Dimensions | 165 × 160 × 160 mm; 172 mm mounting width |
|---|---|---|---|
| Power | 36W / 48W single color; 54W RGB; 72W RGBW | LED board size | 127 × 135 mm |
| Light source type | Integrated lens / 3030 / 3535 / XPE where specified | Light color | Single Color / RGB / RGBW where specified |
| Beam angle | 10° / 15° / 30° / 45° / 60° | Control mode | Single Color / DMX512 |
| IP Rating | IP65 | Material | Die-cast aluminum with heat-dissipation fins |

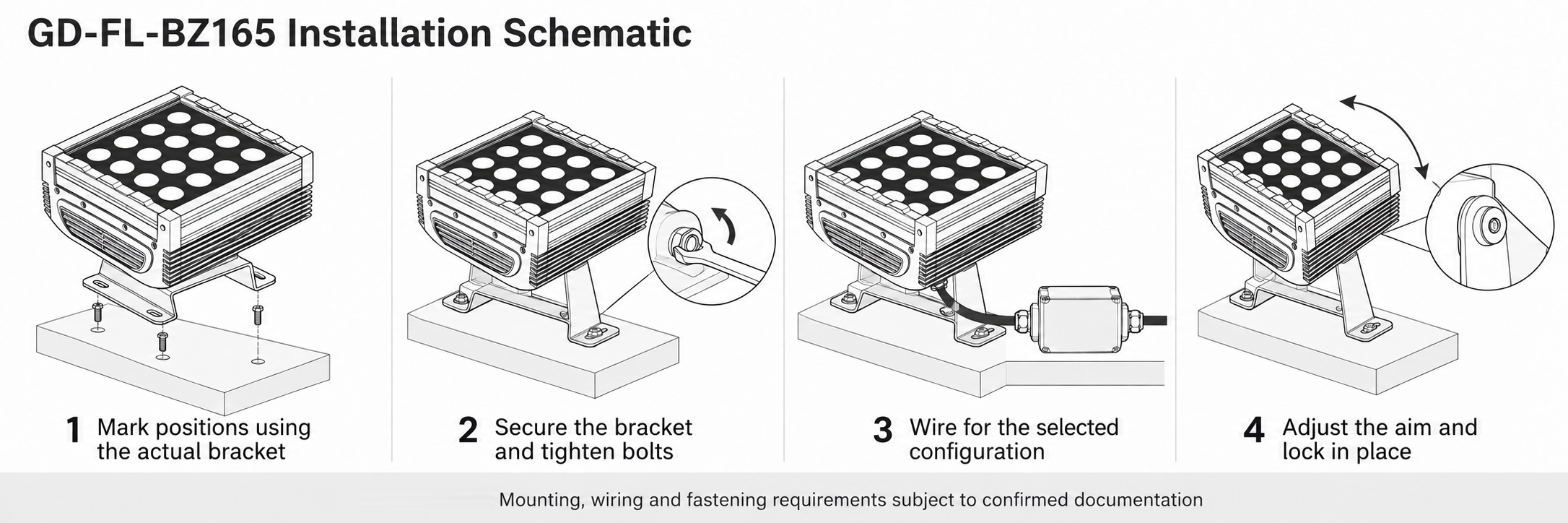

| Mounting bracket | Adjustable heavy-duty bracket | Configuration 1 | 9*4W · Integrated lens AC220V |
| Configuration 2 | 18*2W · Integrated lens AC220V | Configuration 3 | 24*2W · Integrated lens AC220V |
| Configuration 4 | 18*3W RGB DC24V | Configuration 5 | 18*4W RGBW DC24V |
Application Illustrations
Contact
Outline your project requirements.
Share your project requirements with GDXC. For immediate contact, use the telephone or WhatsApp details on the Contact page.
