Inground Light
GD-IG287
Product Features
- Linear recessed format produces a continuous architectural grazing effect
- Individual lens-and-LED modules provide controlled output along the full optical slot
- Brushed metal flange and black recessed housing create a durable flush installation
- IP67 protection supports outdoor paving, façade-edge and landscape applications
Specifications

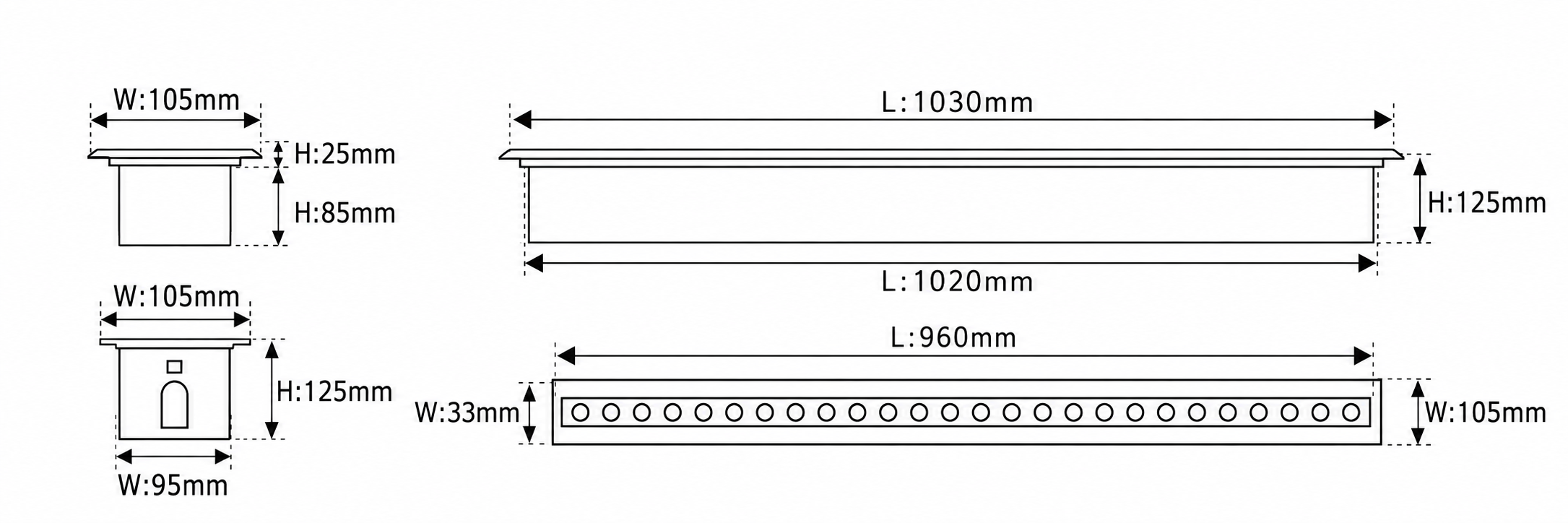

| Lamp name | 1000*90 Linear LED In-ground Light | Face size | 1000*90MM |
|---|---|---|---|
| Aluminum PCB | 960*33MM | Cut-out size | L993*W78*H90MM |
| Power | 18W / 24W / 36W | Optics | Individual lens-and-LED module array |
| Carton size | 103*21*21CM / 4 PCS | Waterproof rating | IP67 |
| Working voltage | DC24V / AC220V | Light color | Single color / RGB / RGBW |
| Control mode | ON/OFF | Beam angle options | 10° / 15° / 30° / 45° / 60° |
Application Illustrations
These images illustrate lighting applications and are not photographs of completed GDXC projects. Actual results depend on luminaire selection, installation and site conditions.
