Inground Light
GD-IG285
Product Features
- Linear recessed format produces a continuous architectural grazing effect
- Individual lens-and-LED modules provide controlled output along the full optical slot
- Brushed metal flange and black recessed housing create a durable flush installation
- IP67 protection supports outdoor paving, façade-edge and landscape applications
Specifications
| Lamp name | 300*90 Linear LED In-ground Light | Face size | 300*90MM |
|---|---|---|---|
| Aluminum PCB | 260*33MM | Cut-out size | L293*W78*H90MM |
| Power | 6W / 9W | Optics | 6 individual lens-and-LED modules |
| Waterproof rating | IP67 | Working voltage | DC24V / AC220V |
| Light color | Single color / RGB / RGBW | Control mode | ON/OFF |
| Beam angle options | 10° / 15° / 30° / 45° / 60° |

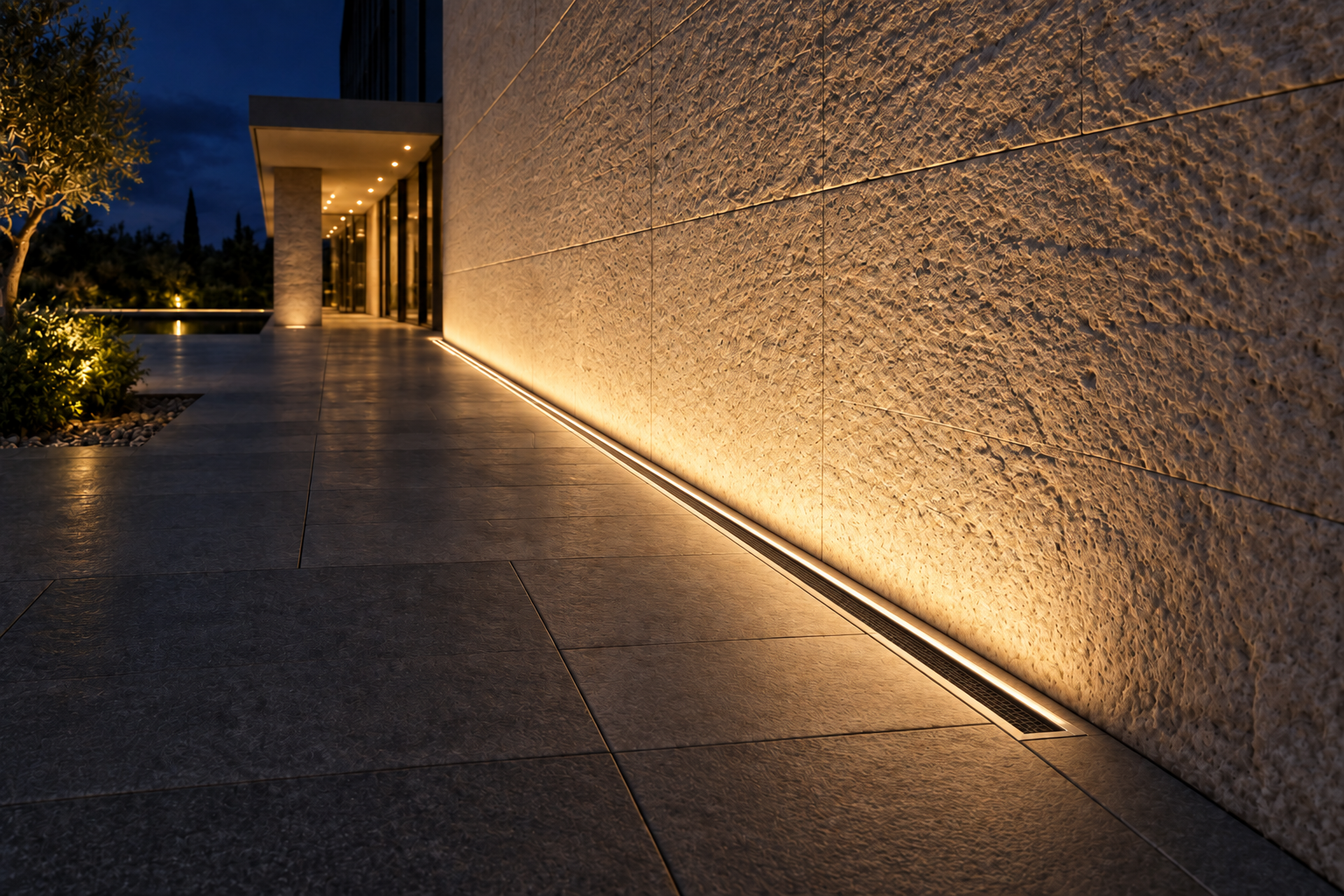

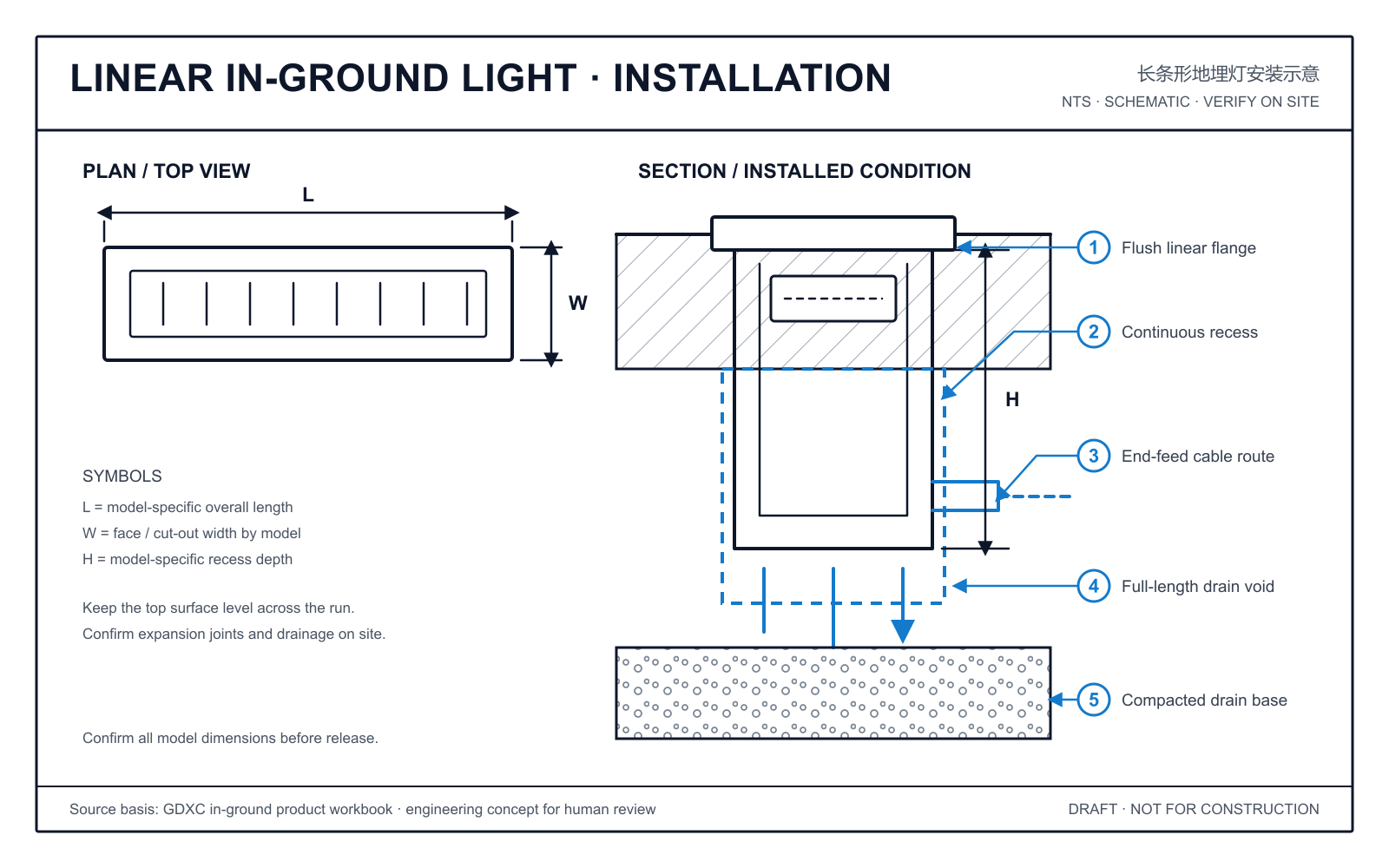

Application Illustrations
These images illustrate lighting applications and are not photographs of completed GDXC projects. Actual results depend on luminaire selection, installation and site conditions.
