Inground Light
GD-IG-L3076-03-CV
Product Features
- Custom curve follows paths, plazas and facade lines
- Two-piece 6063 aluminum profile supports fabrication
- Frosted optical surface creates a smooth low-glare line
- IP67 sealing supports permanent exterior installation
Specifications

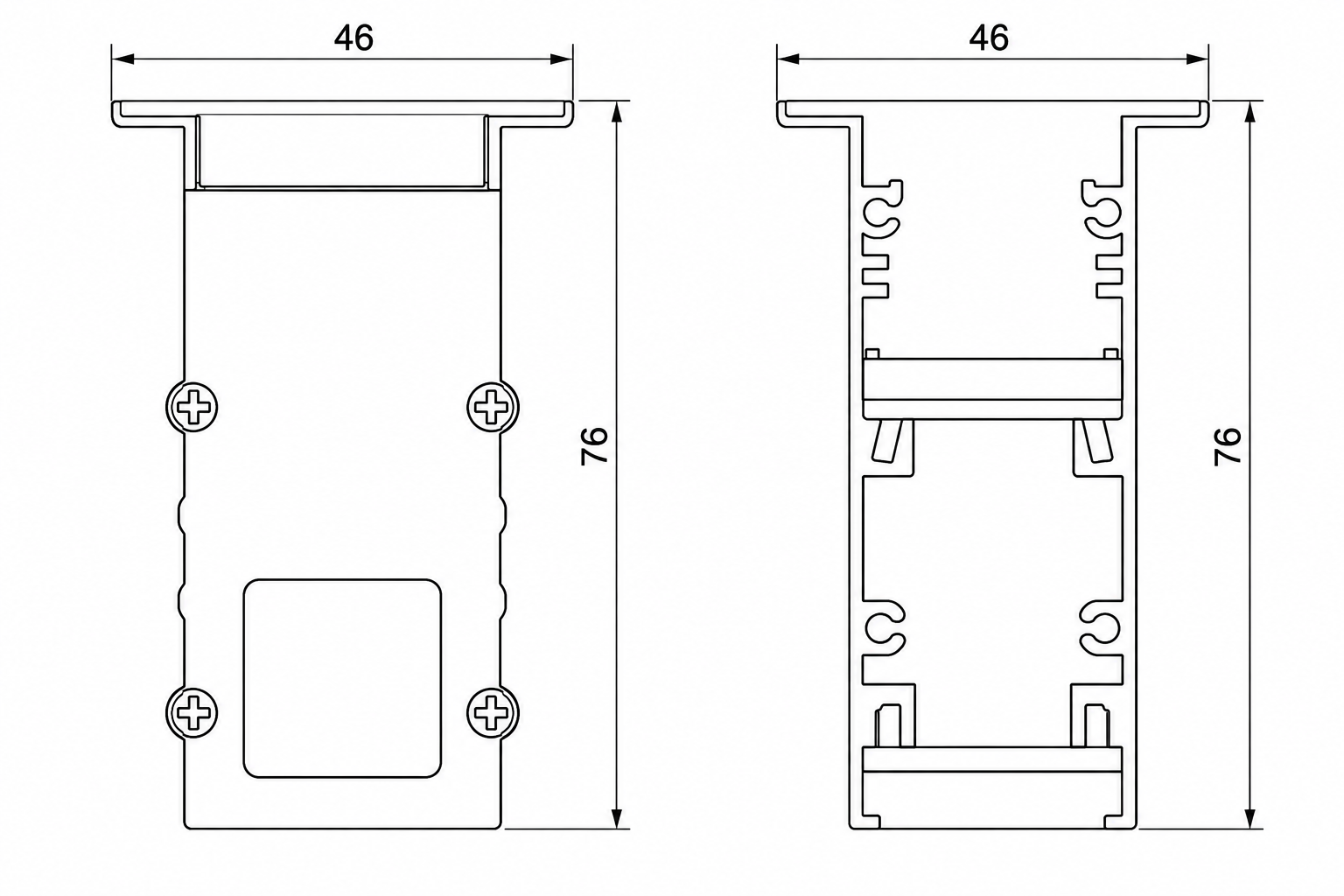

| Type | Curved linear LED in-ground light | Profile | L1000*W46*H76MM nominal |
|---|---|---|---|
| Curve | Custom radius and length | PCB size | L980/960*W26/22MM |
| Light source | 5050 / 3030 options | Power | 9W / 12W / 18W / 24W |
| Housing | 6063 aluminum / black anodized | Cover | 8MM glass / frosted diffuser |
| Net weight | 1.7KG nominal | Waterproof rating | IP67 |
| Working voltage | DC24V / AC220V | Light color | Single color / RGB / RGBW |
| Control mode | ON/OFF | Beam angle options | 10° / 15° / 30° / 45° / 60° |
Application Illustrations
These images illustrate lighting applications and are not photographs of completed GDXC projects. Actual results depend on luminaire selection, installation and site conditions.
