Inground Light
GD-IG-L3076-01
Product Features
- Deep recessed profile reduces direct glare
- Multiple LED and optical configurations
- Ribbed 6063 aluminum body for thermal control
- 8MM glass and IP67 sealing for permanent outdoor use
Specifications

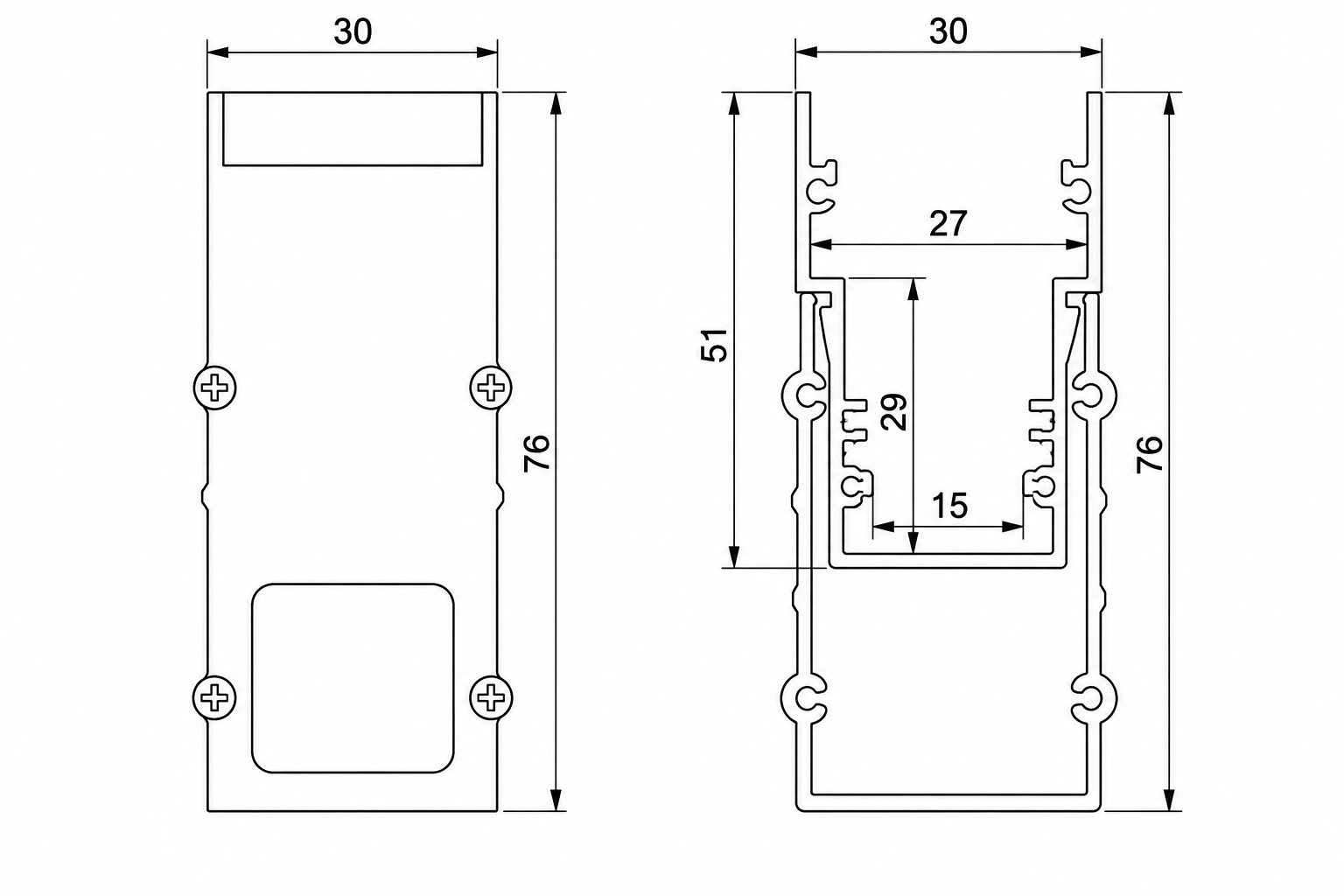

| Type | 1000*30 linear in-ground light | Profile | L1000*W30*H76MM |
|---|---|---|---|
| PCB size | L980/960*W26/22MM | LED | 5050 / 3030 / anti-glare options |
| Power | 9W / 12W / 18W / 24W | Housing | 6063 aluminum / anodized silver |
| Cover | 8MM tempered glass | Net weight | 1.6KG |
| Carton size | 103*26*30CM / 12 PCS | Waterproof rating | IP67 |
| Working voltage | DC24V / AC220V | Light color | Single color / RGB / RGBW |
| Control mode | ON/OFF | Beam angle options | 10° / 15° / 30° / 45° / 60° |
Application Illustrations
These images illustrate lighting applications and are not photographs of completed GDXC projects. Actual results depend on luminaire selection, installation and site conditions.
