Inground Light
GD-IG-L3058-19
Product Features
- Slim recessed body for continuous grazing light
- 6063 aluminum body for strength and heat dissipation
- Recessed anti-glare channel for controlled output
- 6MM glass and IP67 sealing for exterior installation
Specifications

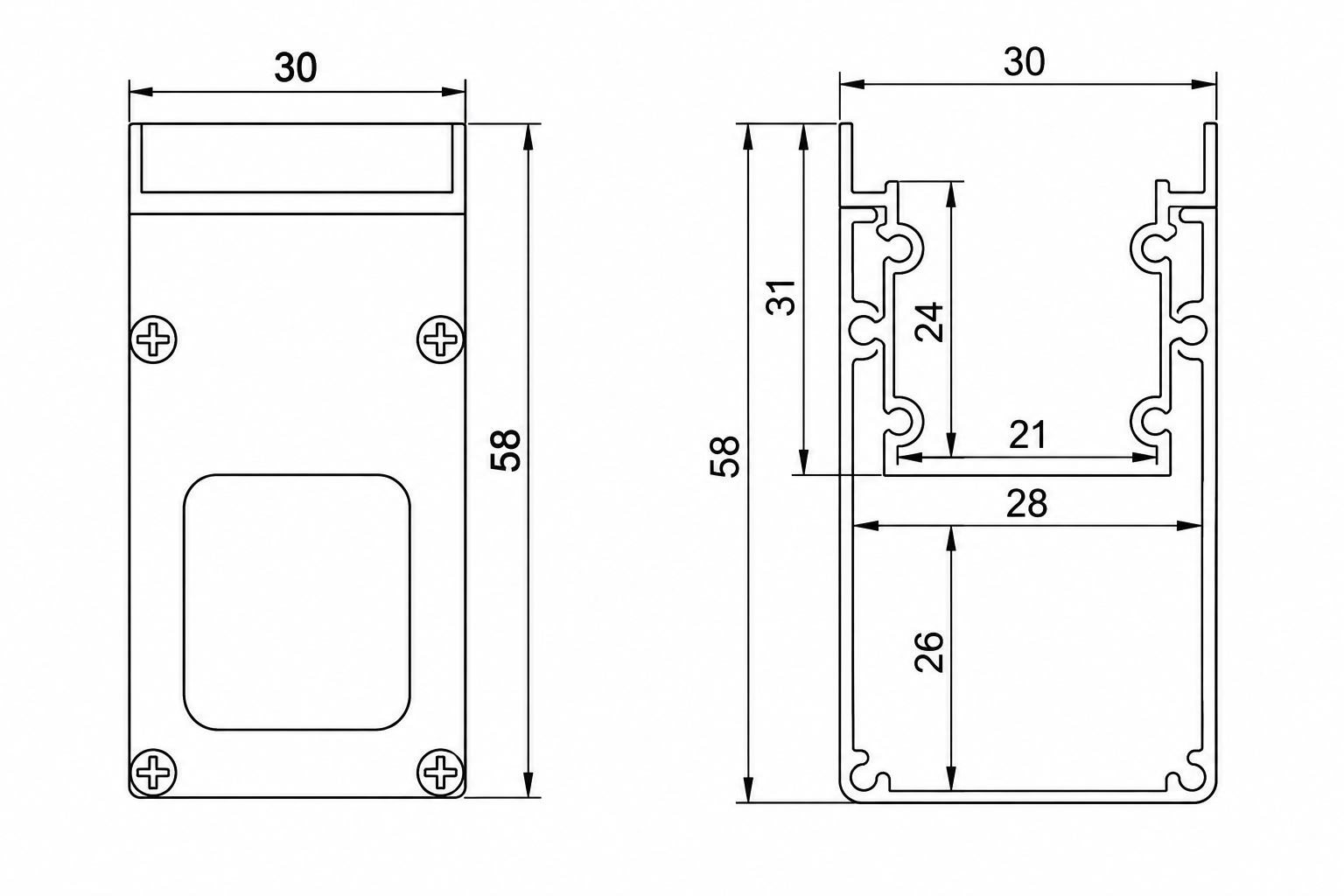

| Type | 1000*30 linear in-ground light | Profile | L1000*W30*H58MM |
|---|---|---|---|
| PCB size | L980/960*W20MM | Light source | 5050 LED |
| Power | 9W / 12W | Housing | 6063 aluminum / anodized silver |
| Cover | 6MM tempered glass | Net weight | 1.1KG |
| Carton size | 103*26*30CM / 15 PCS | Waterproof rating | IP67 |
| Working voltage | DC24V / AC220V | Light color | Single color / RGB / RGBW |
| Control mode | ON/OFF | Beam angle options | 10° / 15° / 30° / 45° / 60° |
Application Illustrations
These images illustrate lighting applications and are not photographs of completed GDXC projects. Actual results depend on luminaire selection, installation and site conditions.
