Inground Light
GD-IG-A224
Product Features
- External adjustment simplifies aiming after installation
- Deep recessed optical chamber reduces direct glare
- Durable metal trim and die-cast body suit in-ground mounting
- IP67 protection supports paving, landscape and facade applications
Specifications

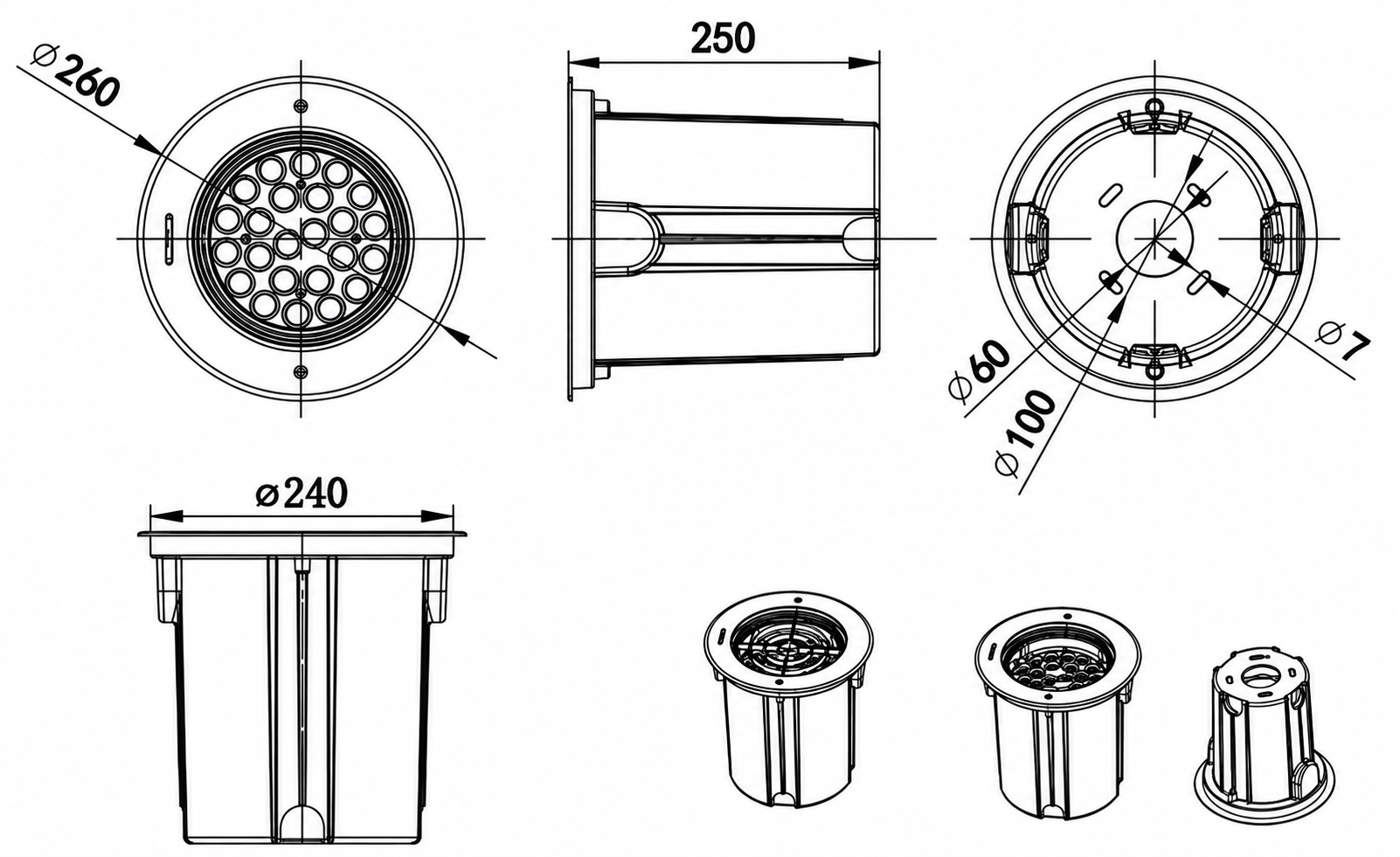

| Type | Adjustable round LED in-ground light | Face size | Ø260MM |
|---|---|---|---|
| Cut-out size | Ø245MM | Overall height | 250MM |
| Power | 24-60W | Light source | High-power LED |
| Optics | Externally adjustable module | Trim | Brushed stainless steel |
| Housing | Die-cast aluminum | Waterproof rating | IP67 |
| Working voltage | DC24V / AC220V | Light color | Single color / RGB / RGBW |
| Control mode | ON/OFF | Beam angle options | 10° / 15° / 30° / 45° / 60° |
Application Illustrations
These images illustrate lighting applications and are not photographs of completed GDXC projects. Actual results depend on luminaire selection, installation and site conditions.
