Inground Light
GD-IG-A107
Product Features
- Adjustable optical assembly supports precise accent lighting
- Multi-lens design with CREE / OSRAM LED options
- Brushed metal trim and recessed body provide a flush finish
- IP67 sealing protects against rain, dust and temporary water exposure
Specifications

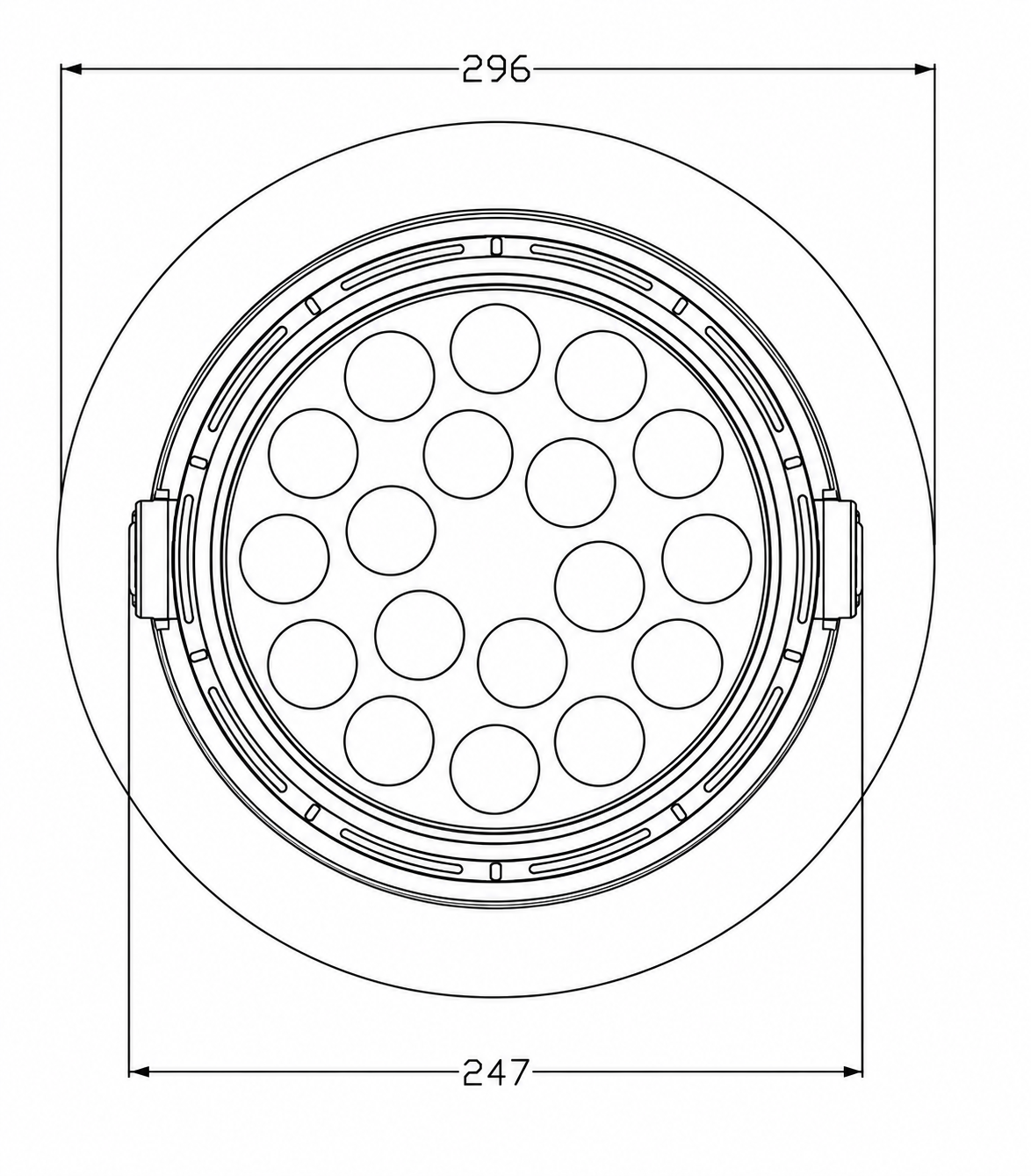

| Type | Adjustable round LED in-ground light | Face size | Ø296MM |
|---|---|---|---|
| Cut-out size | Ø247MM | Overall height | 225MM |
| Power | 18 x 3-5W | Light source | CREE / OSRAM LED |
| Optics | 18-lens adjustable array | Trim | Brushed stainless steel |
| Housing | Die-cast aluminum | Waterproof rating | IP67 |
| Working voltage | DC24V / AC220V | Light color | Single color / RGB / RGBW |
| Control mode | ON/OFF | Beam angle options | 10° / 15° / 30° / 45° / 60° |
Application Illustrations
These images illustrate lighting applications and are not photographs of completed GDXC projects. Actual results depend on luminaire selection, installation and site conditions.
